ROOTS Flipper - Side Broom Group - Side Broom Assy Complete

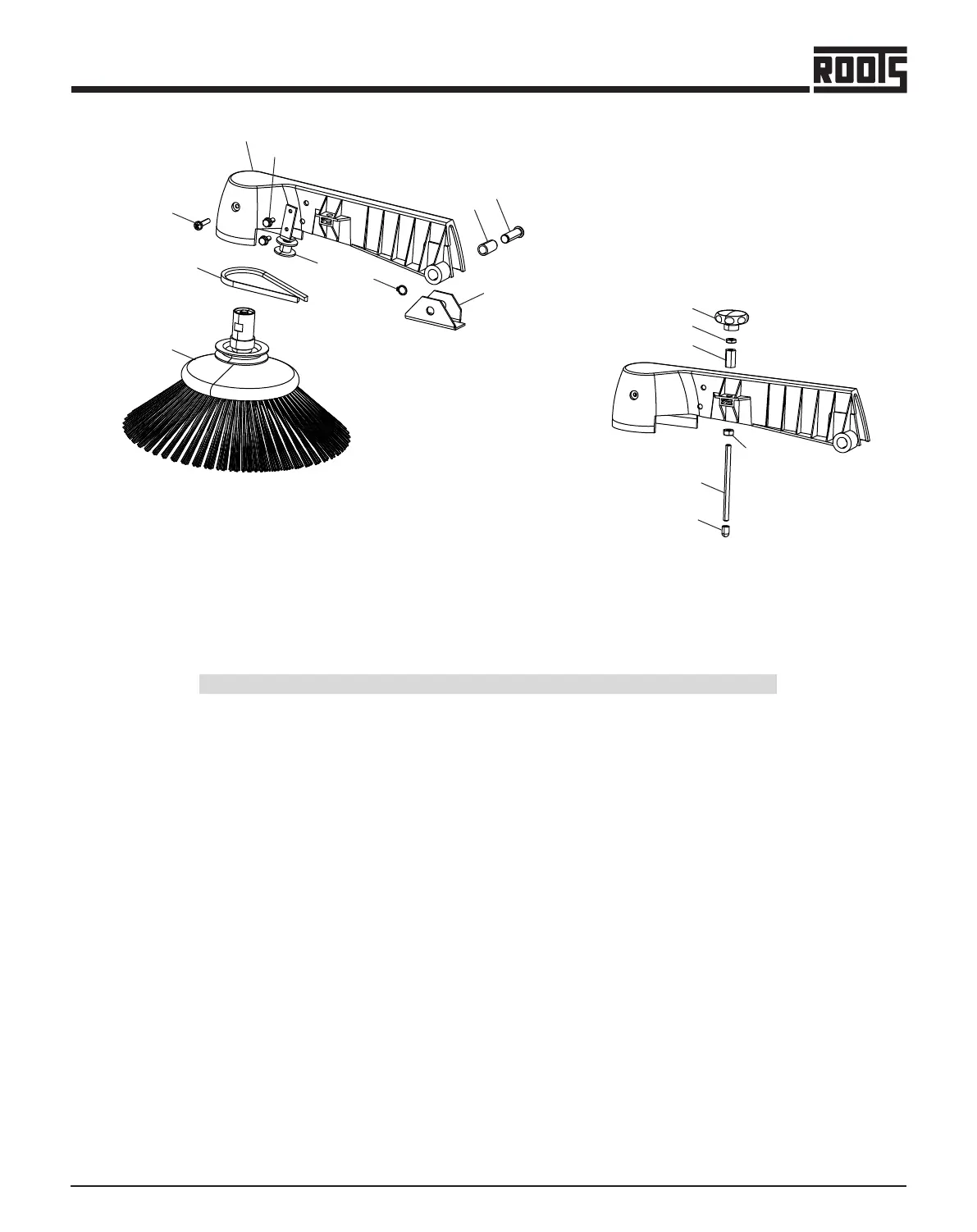

SIDE BROOM GROUP - Side Broom Assy Complete
1
2
4
3
5
8
9
6
7
10
11
14
12
15
12
13
17
+
Flipper
SL. NO PART NO DESCRIPTION QTY
1 553210130-00 MOLDED SIDE ARM 1
2 553210101-00 TAPER BUSH SIDE BROOM ARM 1
3 553210017-00 SUPPORT SIDE BROOM ARM 1
4 553210013-00 CLEVIS PIN SIDE BROOM ARM 1
5 553230013-00 CIRCLIP EXTERNAL - A 12 1
6 558210028-00 SIDE BROOM ASSY COMPLETE 1
7 553210099-00 V-BELT 1
8 558210019-00 IDLER BRACKET ASSY 1
9 553210111-00 HEX HEAD SCREW – M6x16/13 mm COLLAR 2
10 553210210-00 CRPH STS – 6.3X30 MACHINED 1
11 558210012-00 KNOB ASSY 1
12 552170012-00 HEX NUT STEEL - M8 2
13 553210018-00 NUT SIDE BROOM KNOB 1
14 553210011-00 THREADED ROD – SIDE BROOM 1
15 553210012-00 PROTECTION CAP THREAD ROD 1
