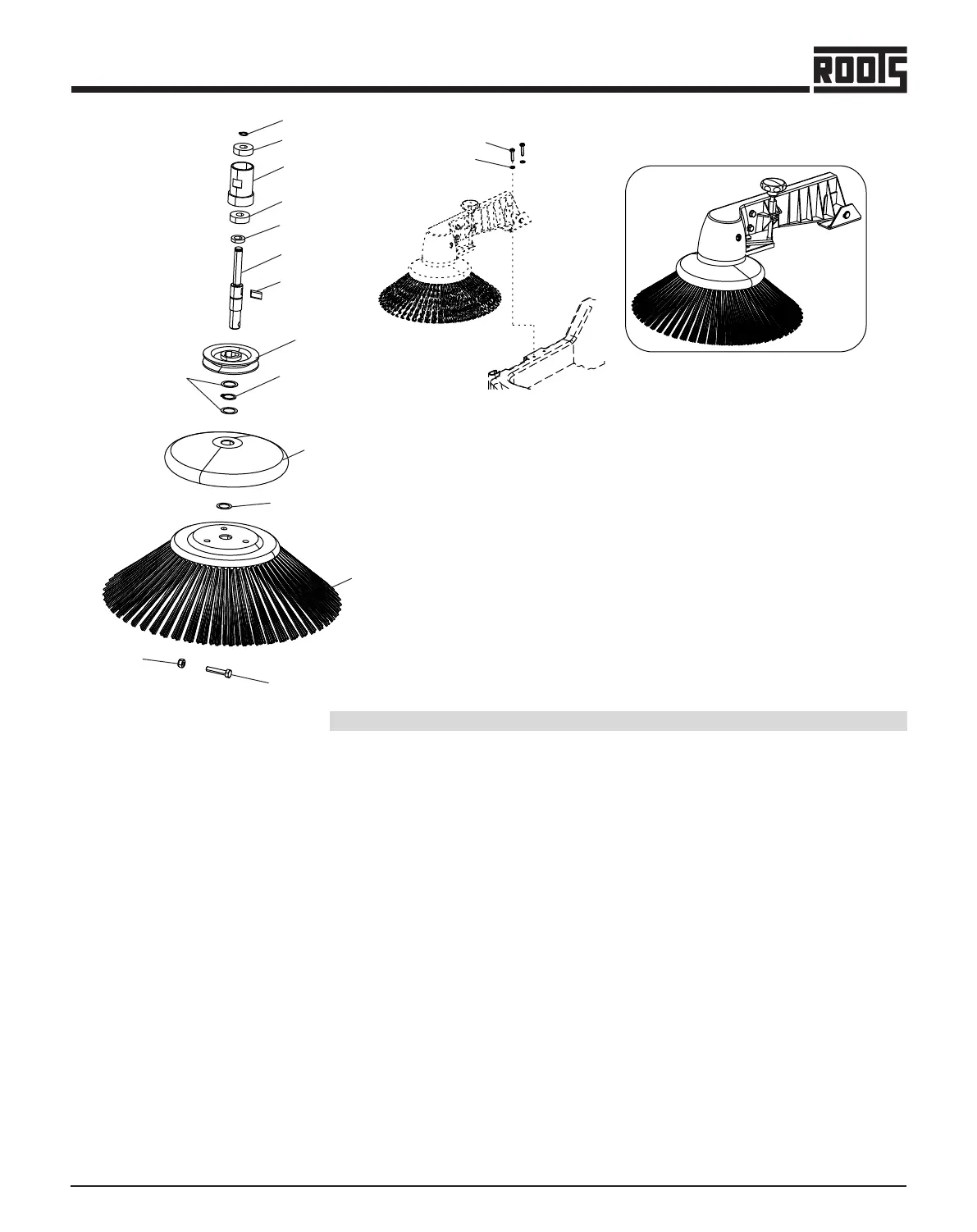

SIDE BROOM GROUP - Side Broom Assy Complete
18
+
Flipper
16
18
17
18
20
22
25
21
26
24
27
30
31
23
19
SL. NO PART NO DESCRIPTION QTY
16 553230015-00 EXTERNAL CIRCLIP - A 10 1
17 553210015-00 BEARING HOUSING – SIDE BROOM ARM 1
18 552610002-00 BEARING – 6000 ZZ 2
19 553210007-00 WASHER STEEL - 10.5X18X4 1
20 553210116-00 AXLE – SIDE BROOM 1
21 553210064-00 WASHER STEEL - 16.2X22X0.5 2
22 553210014-00 V-BELT PULLEY 1
23 553210006-00 KEY 1
24 553230008-00 WASHER STEEL - 14.2X20X0.5 1
25 553230016-00 EXTERNAL CIRCLIP - A 16 1
26 553230006-00 DEFLECTOR ROLLER 1
27 558230001-00 SIDE BROOM 1
28 552270011-00 CRPH SELF TAP SCREW – STEEL - 6.3X30 2
29 552350011-00 WASHER-STEEL - 6.4X12.5X1.6 2
30 552020010-00 HEX HEAD SCREW - STEEL 8.8 - M6X30 1
31 552480006-00 HEX NYLOCK NUT-STEEL GR.6 - M6 3
32 558210056-00 SIDE BROOM GROUP 1
