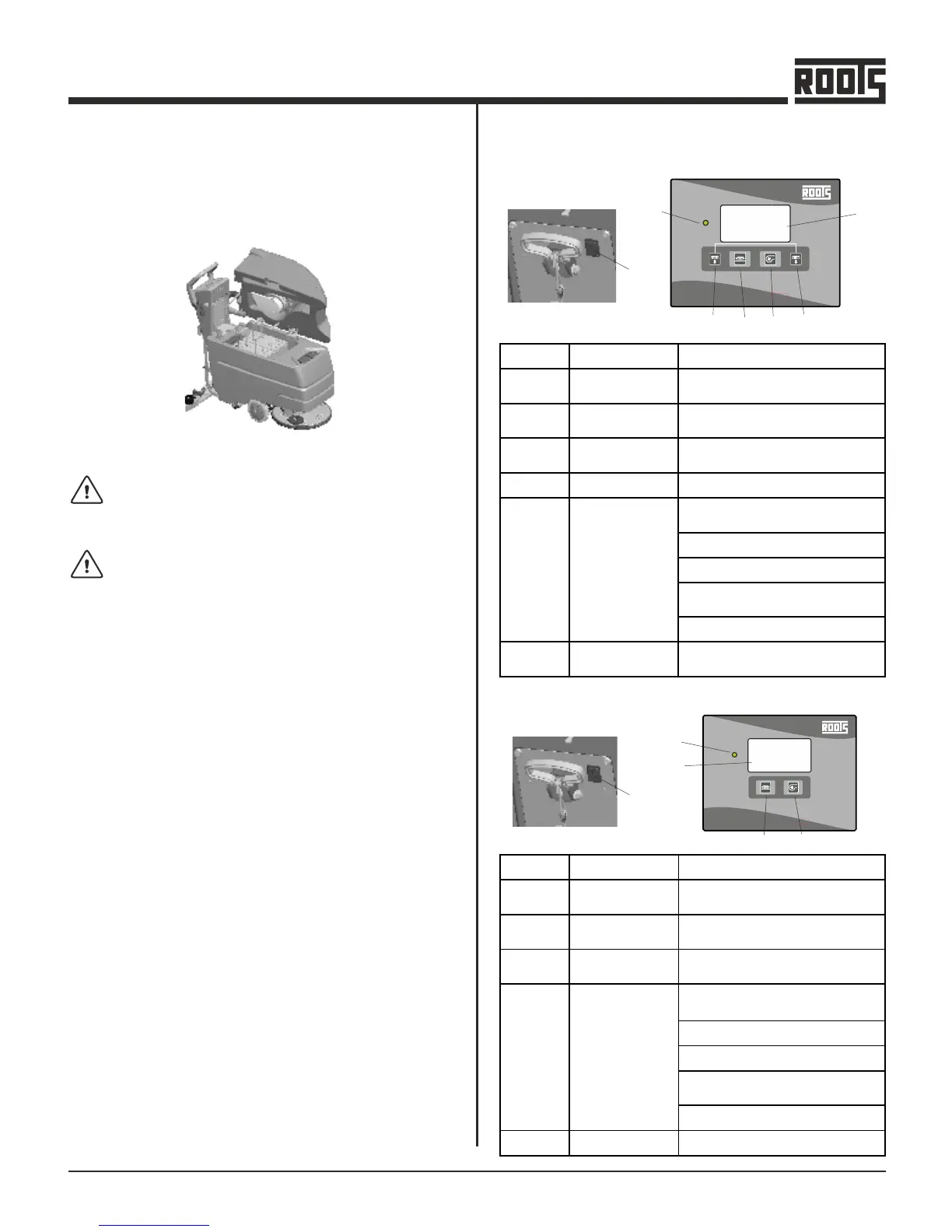

RootsScrub B45 Series
FIRST OPERATION
Operating & Indicator Elements:
Controls - B4545 & B4550
Controls - B4560
A
Before Operation
2. The brush motor is fastened to the connecting arm for
upward and downward movement of brush head and this
can be controlled by the pedal.
This machine is not suitable for evacuation of dusts,
which are explosive or dangerous to health.
1. Tilt the body of the machine to gain access to the inside of
the fresh tank, the tank will stay in its position with a help
of a rope assy.
- Care should be taken while closing the tank.
-Do not drop hardly, which might cause possible
damage to equipment and cause personal injury.
LEGEND DESCRIPTION PURPOSE
A
Main Power
Switch
Initiates power supply to the
system
B
Brush Motor
Switch
For On/Off
C Suction Turbine For On/Off
Shows information - software
version
D
set battery and type
battery charging and status
brush motor & suction turbine
On/Off
total hours run
E LED
Glows Green when power is On
Display
LEGEND DESCRIPTION PURPOSE
A
Main Power
Switch
Initiates power supply to the
system
B
Brush Motor
Switch
For On/Off
C Suction Turbine For On/Off
D1 & D2 Brush Release To release the brush
Shows information - software
version
E
set battery and type
battery charging and status
brush motor & suction turbine
On/Off
total hours run
F LED Glows Green when power is On
Display
A
RootsScrub B 4545
B
F
C D2
D1
E
B C
D
E
RootsScrub B 4560
