ROOTS RootsScrub E Series - Filling of Water

14
RootsScrub E Series (230V/50Hz)
Ÿ Lift squeegee.
Ÿ Unscrew the squeegee knob (2).
Ÿ Remove the squeegee towards the bottom side.
Ÿ Detach suction hose from the tubular socket of the
squeegee.
Removal of Squeegee
The sealing strips can be removed without any need of
tools, as follows:
Ÿ Remove the squeegee.
Ÿ Remove the squeegee knobs.(1)
Ÿ Release the Inner(3) and Outer clamps(4).
Ÿ Pull the sealing strips (2).
Ÿ Mount the new sealing strips by inverse sequence of
operation.
Replacement of Sealing Strips
1
3
4
2
Ÿ If worn, the rear sealing strip can be turned at the
front side edge.
Ÿ The supporting strip may modify the sealing strip
effect, hard-soft, and thus be adapted to different
floor conditions.

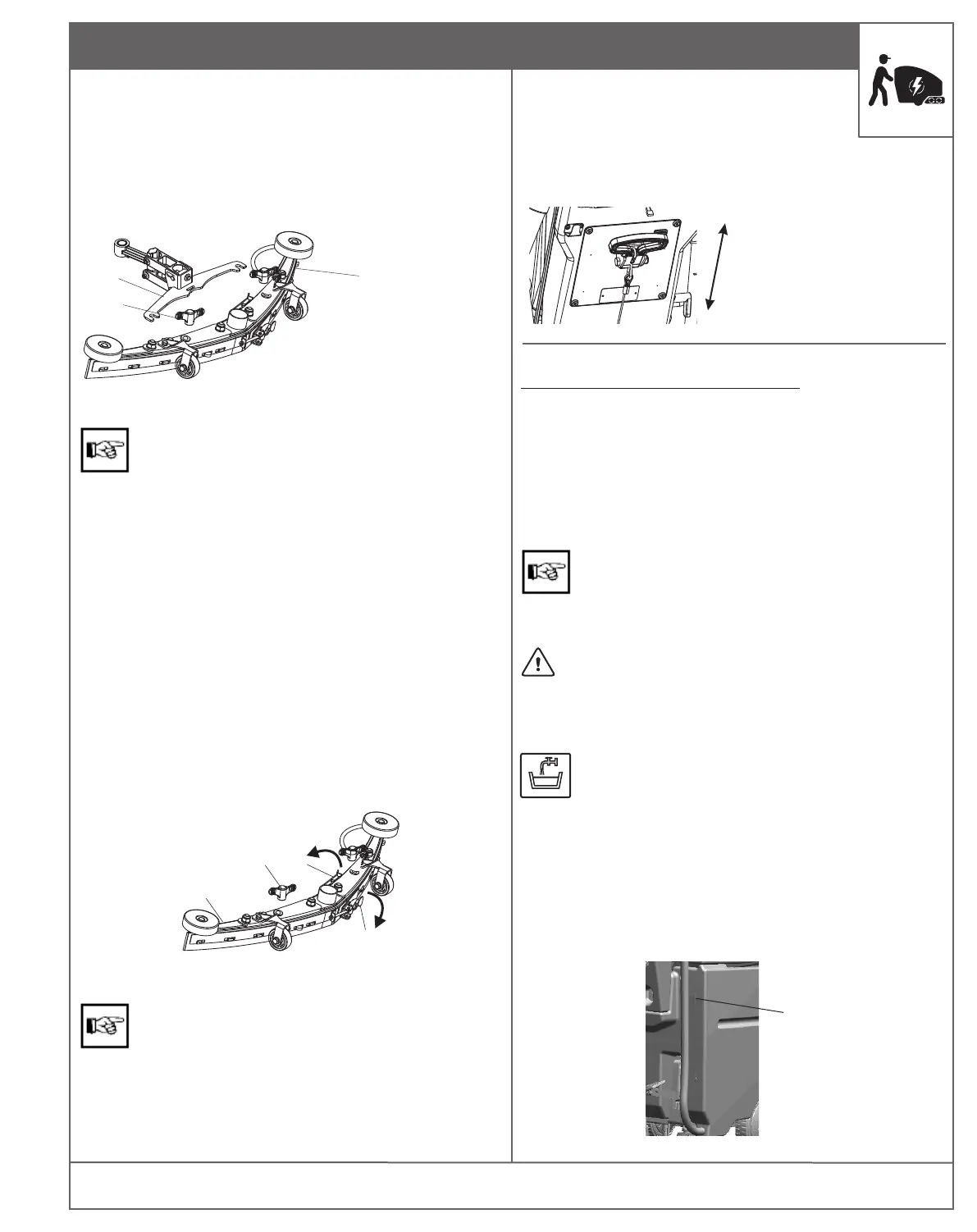

Mounting of Squeegee (first time)
Ÿ Lift squeegee bracket group (3)
Ÿ Mount squeegee (1) to squeegee bracket group (3) and screw
the knobs (2) as shown in figure.
Ÿ Attach suction hose to the tubular socket of the squeegee.
The supporting wheel under the squeegee bracket group
has been adjusted by the factory.
Parabolic Squeegee
1
2
3
1. Squeegee
2. Squeegee Knob
3. Squeegee Bracket Group
MACHINE OPERATION
Raising / Lowering the Squeegee
Ÿ To lower the squeegee pull the handle up from
the slot and lower squeegee.
Ÿ To raise the squeegee pull the handle up and place in slot
provided.
Dirty and Fresh Water Tanks
The machine has a Dirty Water Tank and a Fresh Water Tank. The
filling capacity is 45/60 liters. Please do not fill beyond that mark;
water temperature must not exceed 50°C. Dirty water is fed via
the suction hose into the dirty water tank.
- Do not collect any external water.
- When work is finished both the dirty and the fresh
water tanks on principle must be drained and rinsed in
order to preclude formation of residues.
For disposal of dirty water and lye, the legal provisions
have to be compiled with.
Check the in-feed filter in the tank regularly and clean it if
required.
PROCEDURE FOR SCRUBBING
Filling of Water
Ÿ Fill fresh water and detergent as described below before start
of operation.
Ÿ Fill the fresh water tank with water (50° max) as required by
the work to be done through the filter which is present in
front of the machine and add detergent as specified by the
manufacturer.
Ÿ Filling amount : 45 (45 series)/60 (60 series) liters Max.
max 50°C
Max water
level
1
1
1
2
Squeegee handle
movement
