Safe-T-Scope
®
Backup Camera System STSK7465
4 9

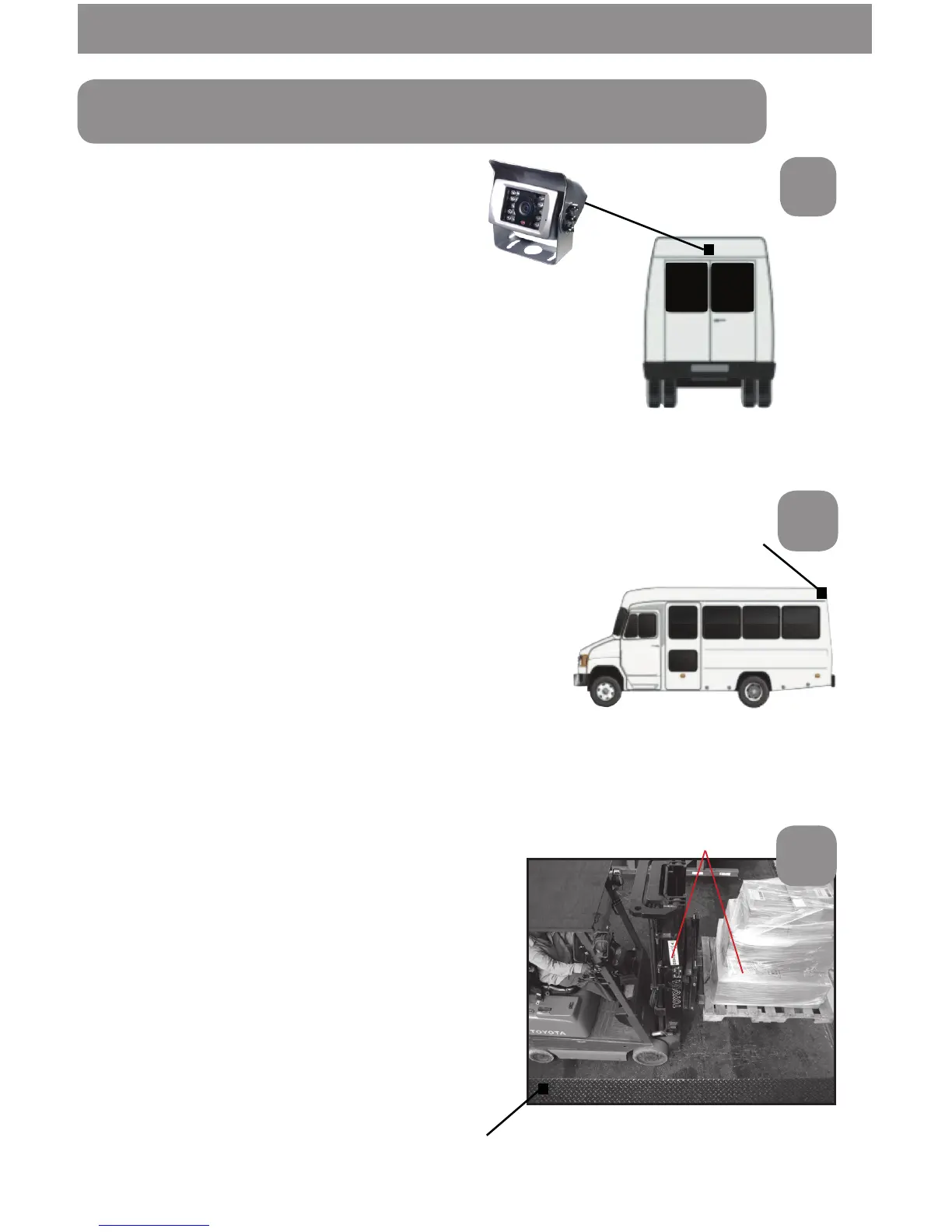

Camera mount in
suggested location
Mount camera assembly high. (Centered)
Position of camera
Typical monitor image of view from
properly installed camera
Obstructions behind truck
Position of camera
• Select a high and centered location at
the rear of the vehicle to mount the
STSC141 camera
IMPORTANT
• When mounting your
new backup camera, it is highly
recommended that the image
transmitted by the camera show
the rear bumper and area behind
the vehicle.
• We do not recommend mounting
the camera near the lower area of
the vehicle (ex. bumper). This reduces
the view of the camera and increases
the chance of physical damage to
the camera.
• Once the location for the camera is
chosen, using a 3/16 drill bit, drill
four holes into the vehicle using
the bracket as a guid. Be sure to
clear any obstacles before drilling holes.
• Using a 5/8 drill bit, drill a hole into the
vehicle. Insert wire gramment and
safely pass the camera wire through
and mount securely in place.
• To finalize the camera installation, hand
tighten the camera wire to your
extension cable. Make sure male
pins are inserted into female adaptor
correctly. You are ready to conceal
your extension cable.
CAMERA INSTALLATION
g 1
g 2
g 3
Vehicle Rear Bumper
To Next Page
