Rosewill RNX-N180UBE User Manual

Wireless N Adapter RNX-N180UBE User Manual
network via a wireless access point. Click the Add button to create a new infrastructure
profile.

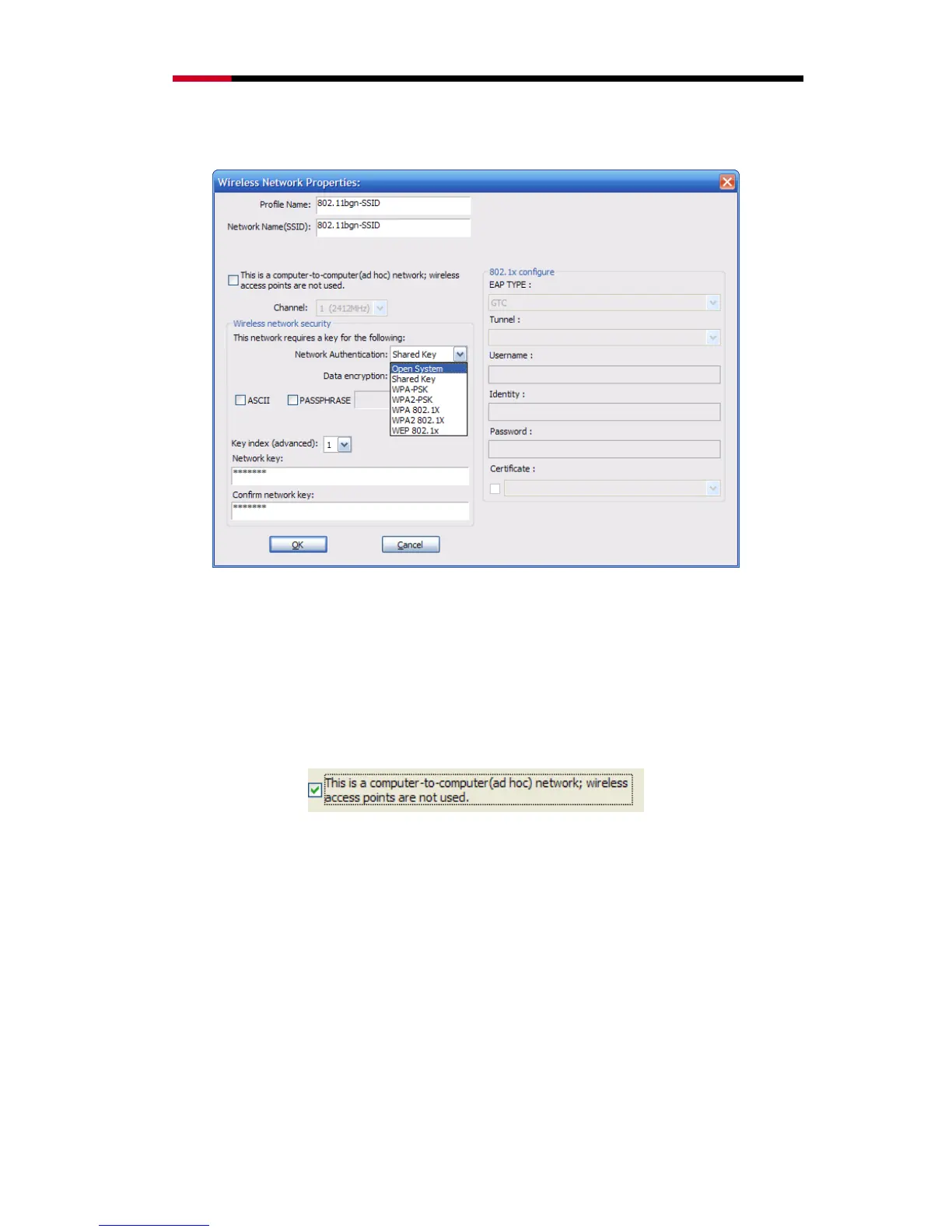

Figure 0-4
When the Network Info dialog box appears (Figure 0-4), enter a name for the new profile.
Enter the Network SSID. Choose the Network Authentication Mode and Data encryption
from the drop-down menu and import the network key. Then click OK button.
 Create a new ad-hoc mode profile
If you want your wireless computers communicate with each other directly, click the Add
button to create a new ad-hoc profile. Then, check on below option like Figure 4-5:
Figure 0-5
then select the correct operating channel for your network from the Channel drop-down
menu.
16

Rosewill RNX-N180UBE Specifications

General

Brand	Rosewill
Model	RNX-N180UBE
Category	Adapter
Language	English
