Page 14
RXT175P
Ref Description Ref Description
3 Wire feed assy. 21 Weld current switch
5 Wire spool holder 12 Mains Cable
10-11 Gas bottle holder 27 Earth lead
14 Handle 28 Torch assy.
16 Rectifier assy. 31 Mains switch
17 Fan assy 4 Aux Transformer
20 Main transformer
22 Thermal sensor
23 Wire feed control PCB

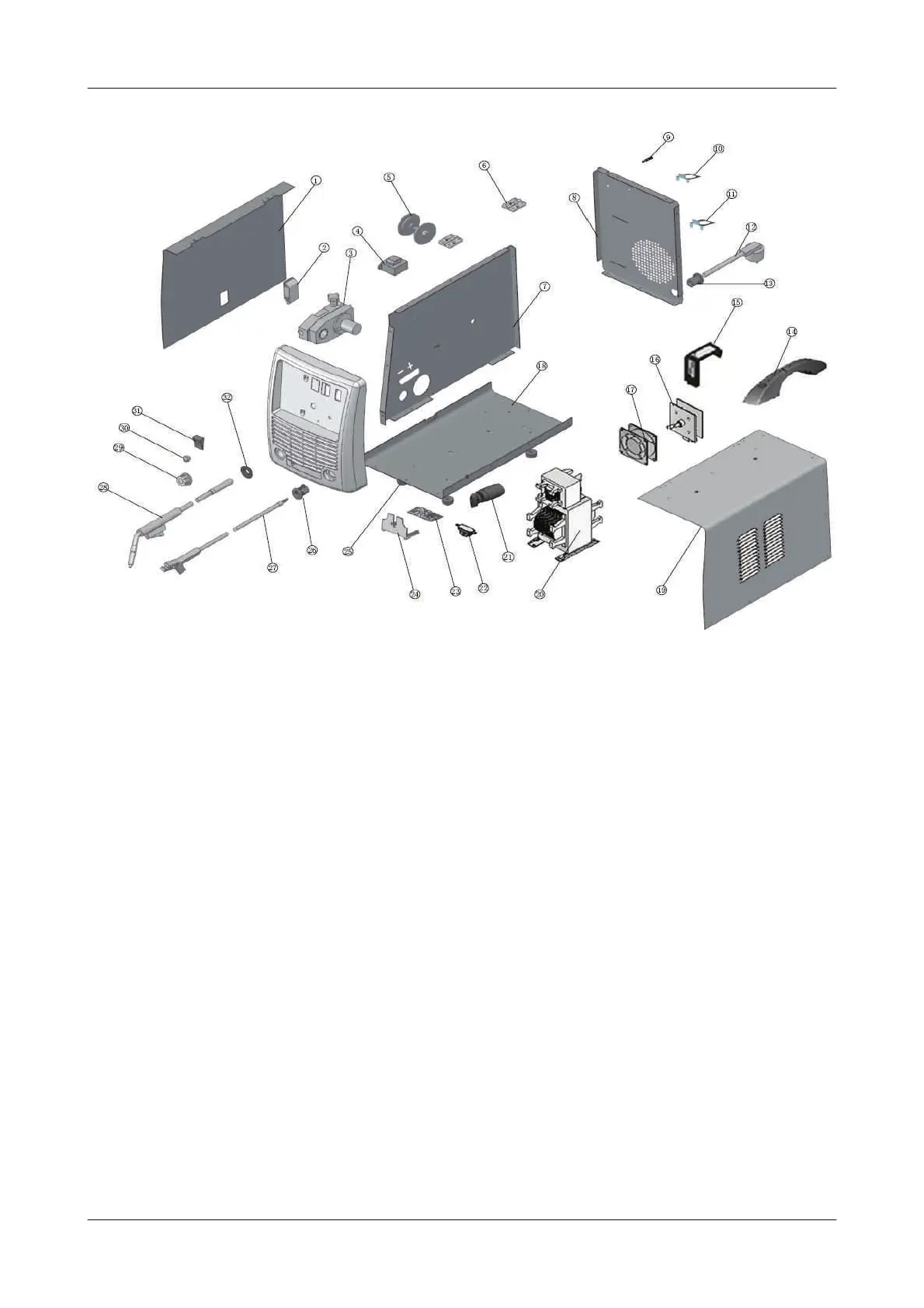

PARTS IDENTIFICATION
