Ross RXT175P - The Rating Plate

Page 7
RXT175P

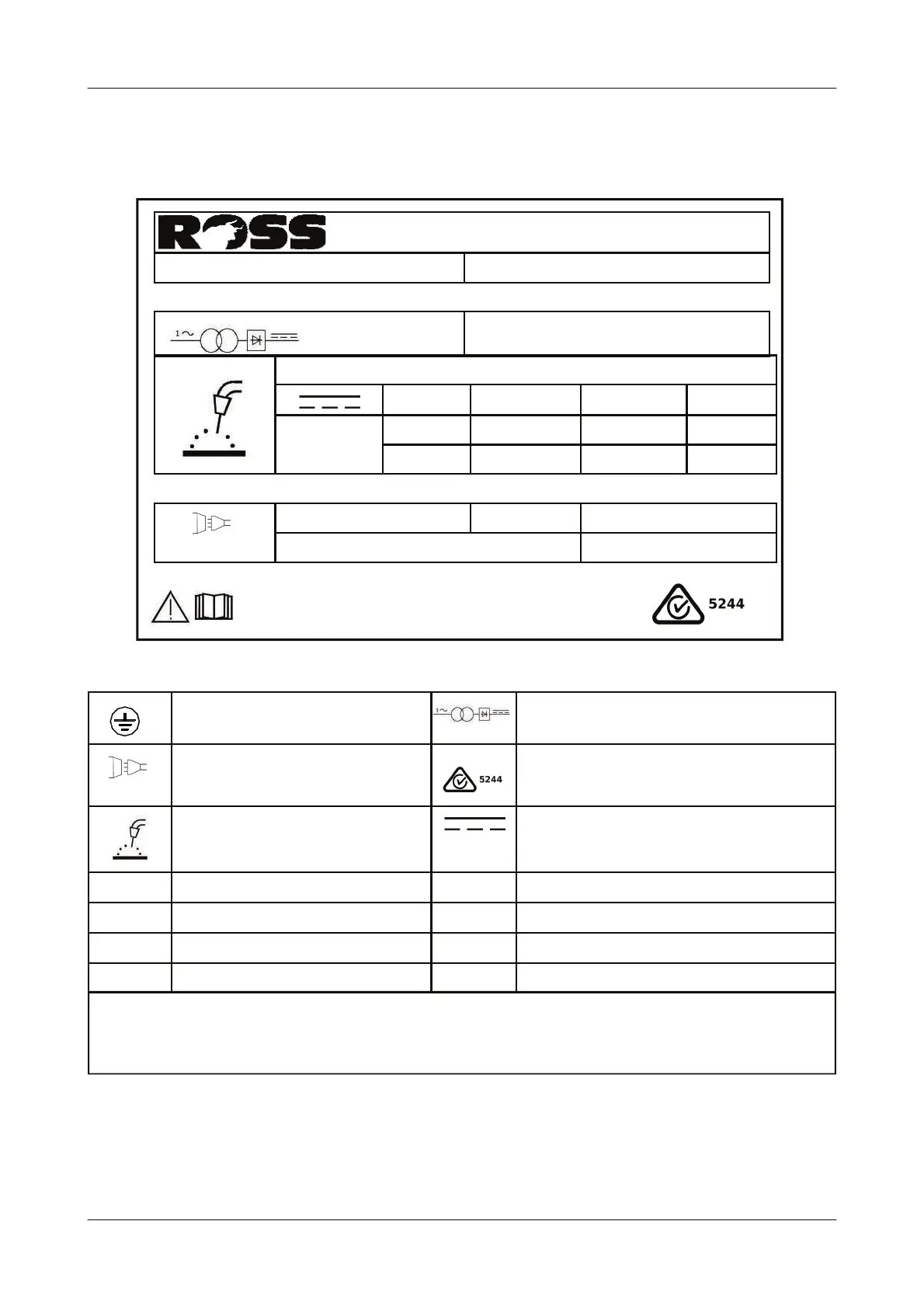

THE RATING PLATE
The rating plate is fitted to the front of the welder and displays the
following symbols and information.
30A/15.5V to 145A/21.25
X 15% 60% 100%
Uo = 35V
I
2 145A 73A 56A
U
2 21.25V 17.65V 16.8V
1 ~ 50Hz
U1 = 230V I1 Max = 25A
IP21S
I1 eff =10.2A
RXT175P
AS60974-1
Sn.
Caution! Read operator’s manual
Ground Single phase transformer - Rectified
1 ~50Hz
Mains supply single phase A.C.
50 Hz
RCM Marking indicating compliance to
relevant Australian standards.
Mig Welding Outputs direct current. D.C.
x
Duty Cycle
U
2 Rated Welding Voltage
I
1
Rated Input Current
U
0 Rated no load voltage
I
2
Rated Welding Current
IP21S Protection Class
U
1 Rated Input voltage % Percentage of full rated load
...A/...V~...A/...V: Output Range. Minimum and maximum rated welding current and
related load voltage.
