Figure 3 shows the auxiliary output connection using the internal
power.

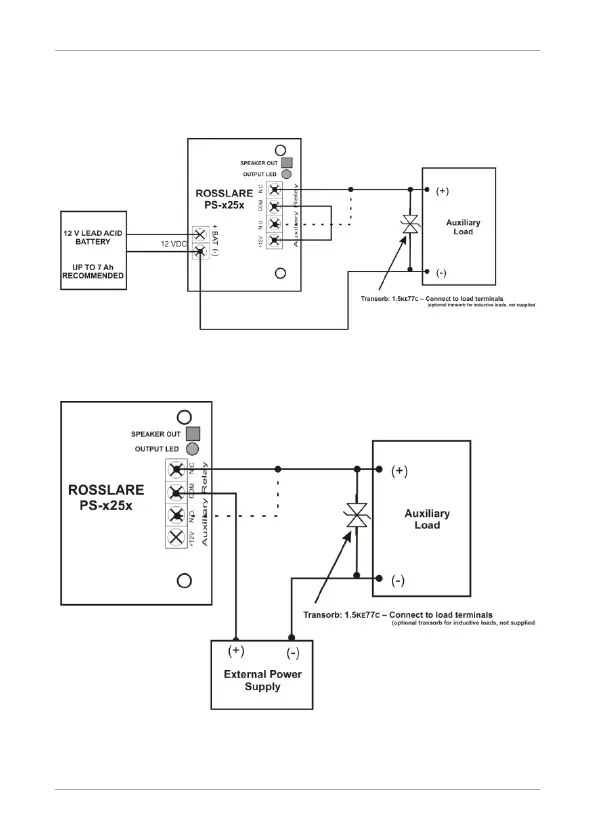

Figure 3: Controller Wiring – Using the Internal Power
Figure 4 shows the auxiliary output connection using the external
power.
Figure 4: Controller Wiring – Using the External Power
