Rosslare AYC-F64 - Figure 3: Controller Wiring - Using the Internal Power; Figure 4: Controller Wiring - Using the External Power

Installation
AYC-F/Gx4 Series Installation and Programming Manual 17

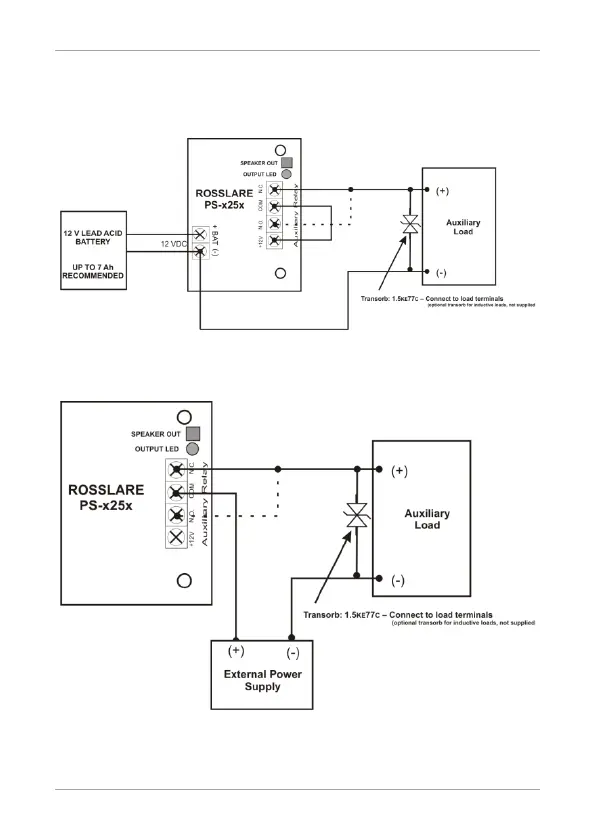

Figure 3 shows the auxiliary output connection using the internal
power.
Figure 3: Controller Wiring – Using the Internal Power
Figure 4 shows the auxiliary output connection using the external
power.
Figure 4: Controller Wiring – Using the External Power
