L
M
Rev. 08-Mar-11
Pg. 4/6

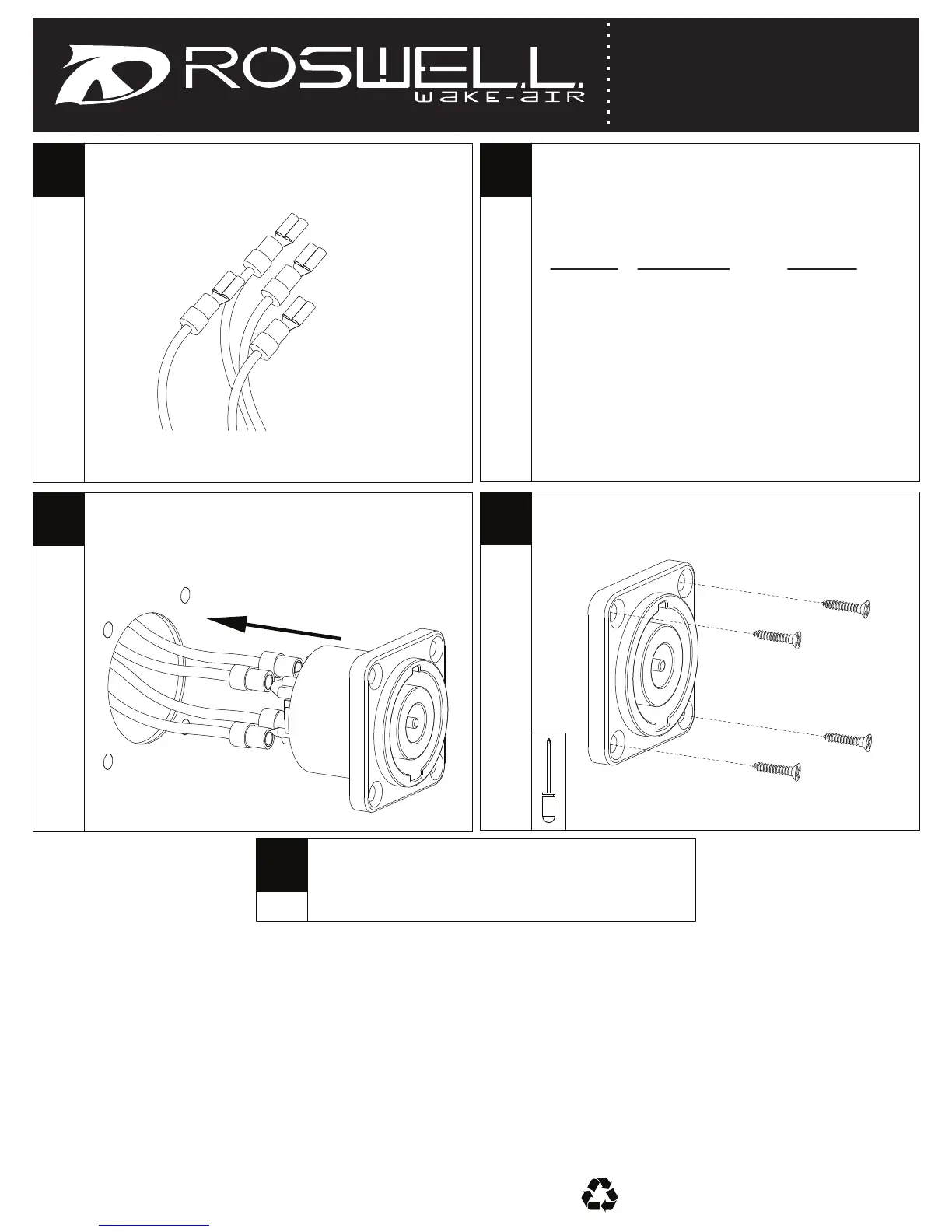

R6 Hanging Speaker
Installation Instructions
If you have any questions please call : 1-780-962-0868
Attach 4 Sta-Kon connectors to one end of your 18-16
gauge wires (inside the boat deck).
Insert the ends of the wire (with the Sta-Kon
connectors) through the 1.25” hole.
O
Connect these Sta-Kon connectors to the corresponding
terminals (Flat Tabs) on the female speakon connector
using the chart below.
Using 4 5/36” screws fasten the female speakon
connector to the boat deck.
Sta-Kon Connectors
Female Speakon Terminals
Terminal
FunctionWire Colour
1+
1 -
2+
2 -
3+
3 -
4+
4 -
Port Speaker +
Port Speaker -
Starboard Speaker+
Starboard Speaker -
(Op. LEDs +)
(Op. LEDs -)
(Op. Nav. Light+)
(Op. Nav. Light -)
Red
Black
Orange
Brown
Yellow
Blue
White
Green
P
Run the speaker wires to your AMP or deck and
connect. Run the two power wires to your chosen
power source.
N
Once the wires are connected to the terminals, run a
bead of silicone caulking around the edge of the
speakon hole and a dab on each screw hole. Place
the female speakon connector back into its hole.
To Next Page
