AC-2000 | 8.10/8.11 16

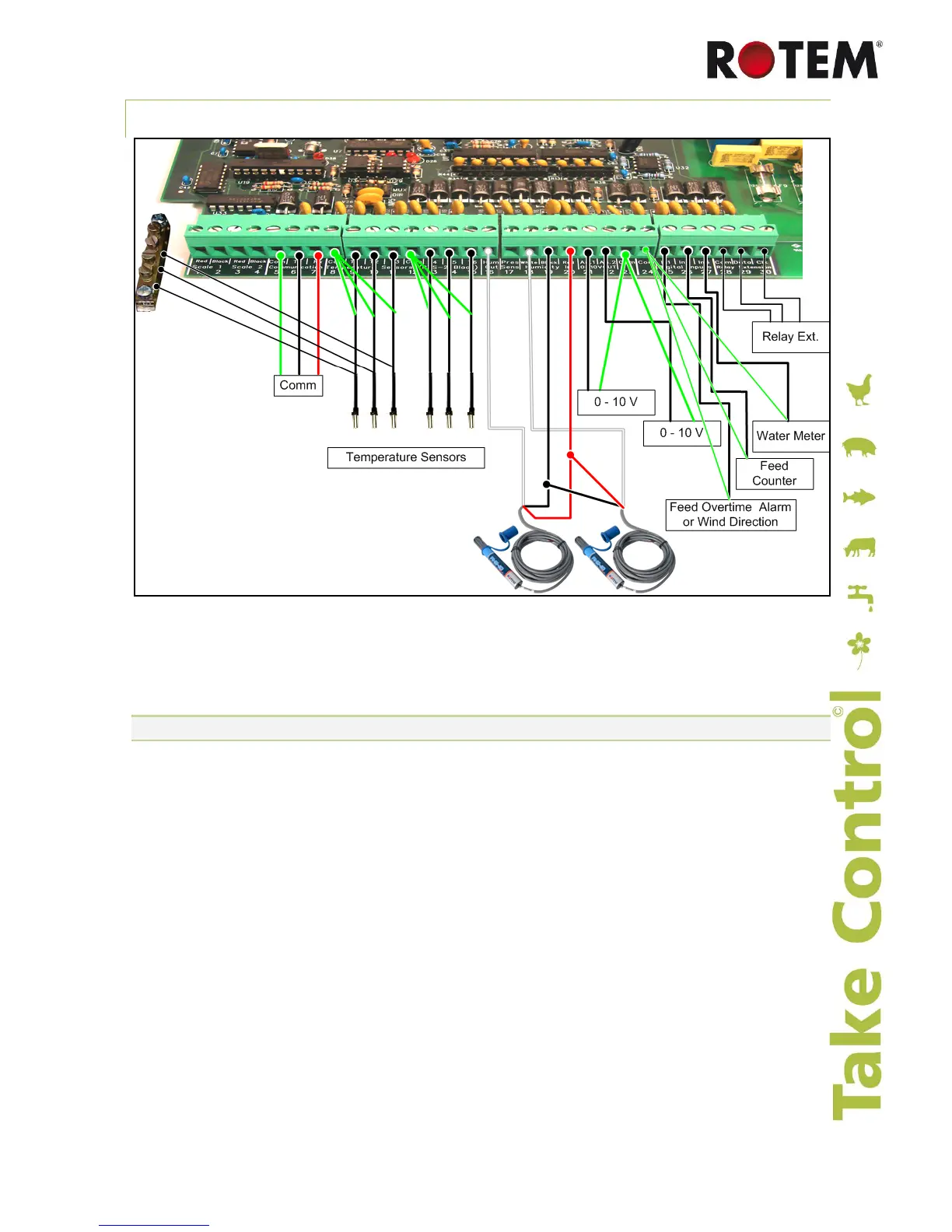

4.3.5 AC-2000 SE Low Voltage Wiring (Terminals)
• Connect the sensor shielding wire to the grounding strip.
o 16 – Analog Input 2
o 17 – Analog Input 3
o 18 – Analog Input 1
NOTE: The above illustration is an example only!
