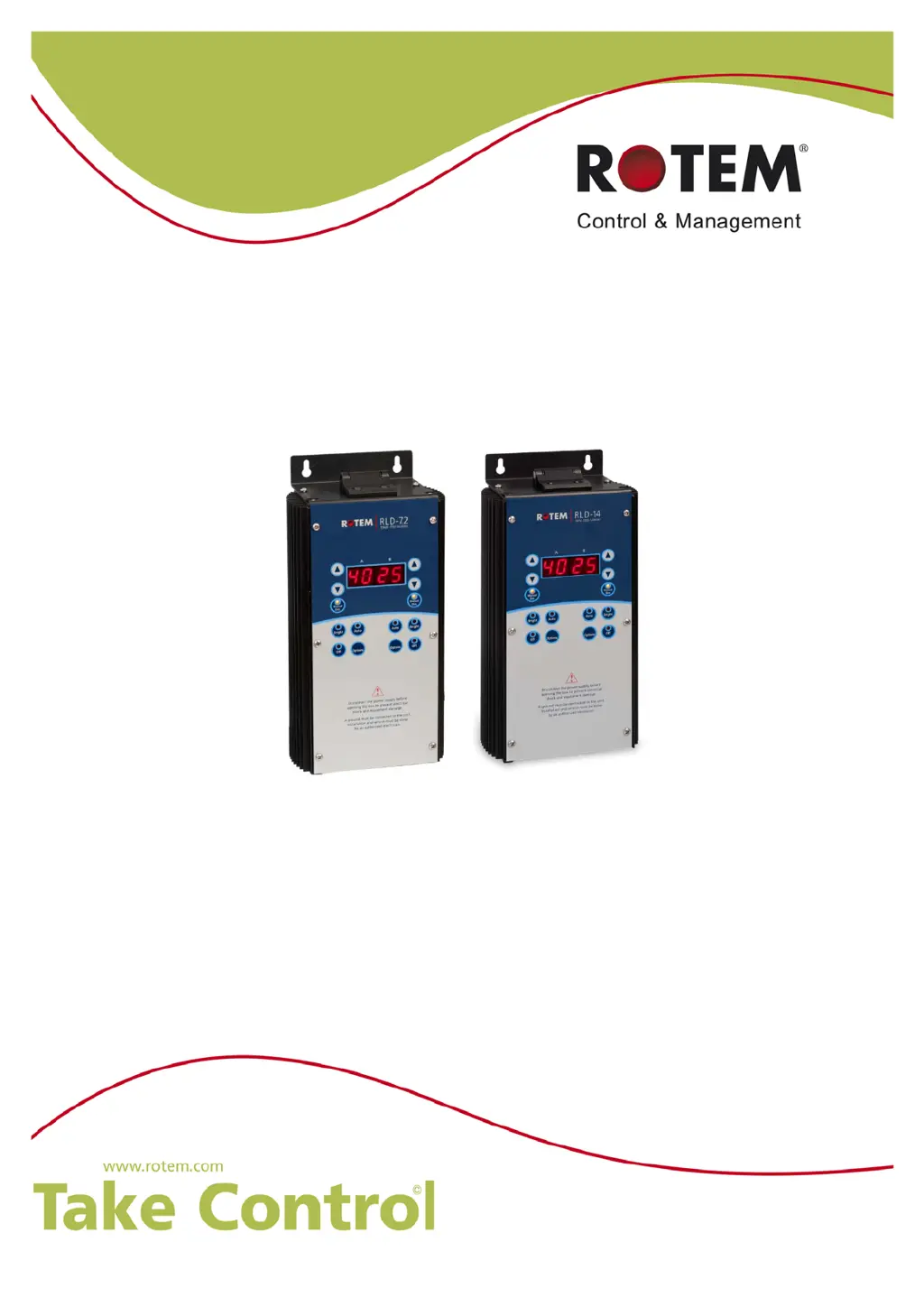

RLD 7.2/RLD-14

Two Channel Light Dimmer

Installation and User Manual

P/N: 110036

Questions and Answers:

L
Lori HamiltonAug 5, 2025
What to do if Rotem RLD 7.2 has no output in AUTO mode?
- C
  Charles VargasAug 5, 2025
  If your Rotem Controller is powered on but there's no output in AUTO mode using 0-10V control voltage or RX, TX communication lines: * For 0-10V control, ensure that the "+" and "COM" cables are correctly connected. Verify the voltage at the RLD terminal by setting 5V from the controller and measuring it. * For RX, TX communication, double-check that the RX and TX lines are properly connected and that you have interchanged RX and TX.
S
Steven RossAug 13, 2025
How to troubleshoot Rotem RLD 7.2 when seven-segments and LEDs indicate nothing?
- W
  William AlexanderAug 13, 2025
  If the seven-segments and LEDs on your Rotem Controller show no indication when power is connected, try the following: 1. Check the power supply. 2. Inspect the main fuses F3 and F1 (especially if you're using 230 VAC). 3. Verify the +5V supply. 4. Ensure the flat cable connection is secure.
T
Tanner YoungAug 25, 2025
Why are lights blinking with Rotem Controller at low voltage?
- J
  Julie JohnsonAug 25, 2025
  If the lights connected to your Rotem Controller are blinking when operating at low voltage levels, ensure that there are no inductive devices (such as transformers or power coils) integrated into the electrical load system.

Rotem RLD 7.2 Specifications

General

Brand	Rotem
Model	RLD 7.2
Category	Controller
Language	English

Summary

PRECAUTIONS

INTRODUCTION TO THE RLD-7.2 AND RLD-14

Device Description

User Interface

Details the front panel layout, buttons, and display functions for operating the RLD units.

USING THE RLD DIGITAL

Preliminary Setup Options

Guides users through initial system parameter configurations such as bulb type and channel settings.

System Parameter 3 – Low Limit

Manual Dim Mode

Explains how to manually adjust light brightness using arrow keys, overriding automatic settings.

Auto Mode

SPECIFICATIONS

Input Voltage

Specifies the required input voltage ranges for RLD-14 and RLD-7.2 models.

Output Maximal Load (Per Channel)

Indicates the maximum current load capacity per output channel for the dimmers.

Maximal Power (Per Channel)

Lists the maximum power (VA) rating per channel for RLD-14 and RLD-7.2 units.

INSTALLATION

RLD Wiring Diagram

Provides detailed wiring diagrams for RLD 7.2 and RLD 14, covering power and lighting connections.

Configuring Channel Levels

Explains how to set channel levels using analog output cards or communication cards for control.

TROUBLESHOOTING
