Platinum Plus
Page: 15 Revision: B Chapter: Scales Installation . Name: P+ Installation Manual
Page: 15 Revision: B Chapter: Scales Installation
D
D
o
o
c
c. Name: P+ Installation Manual

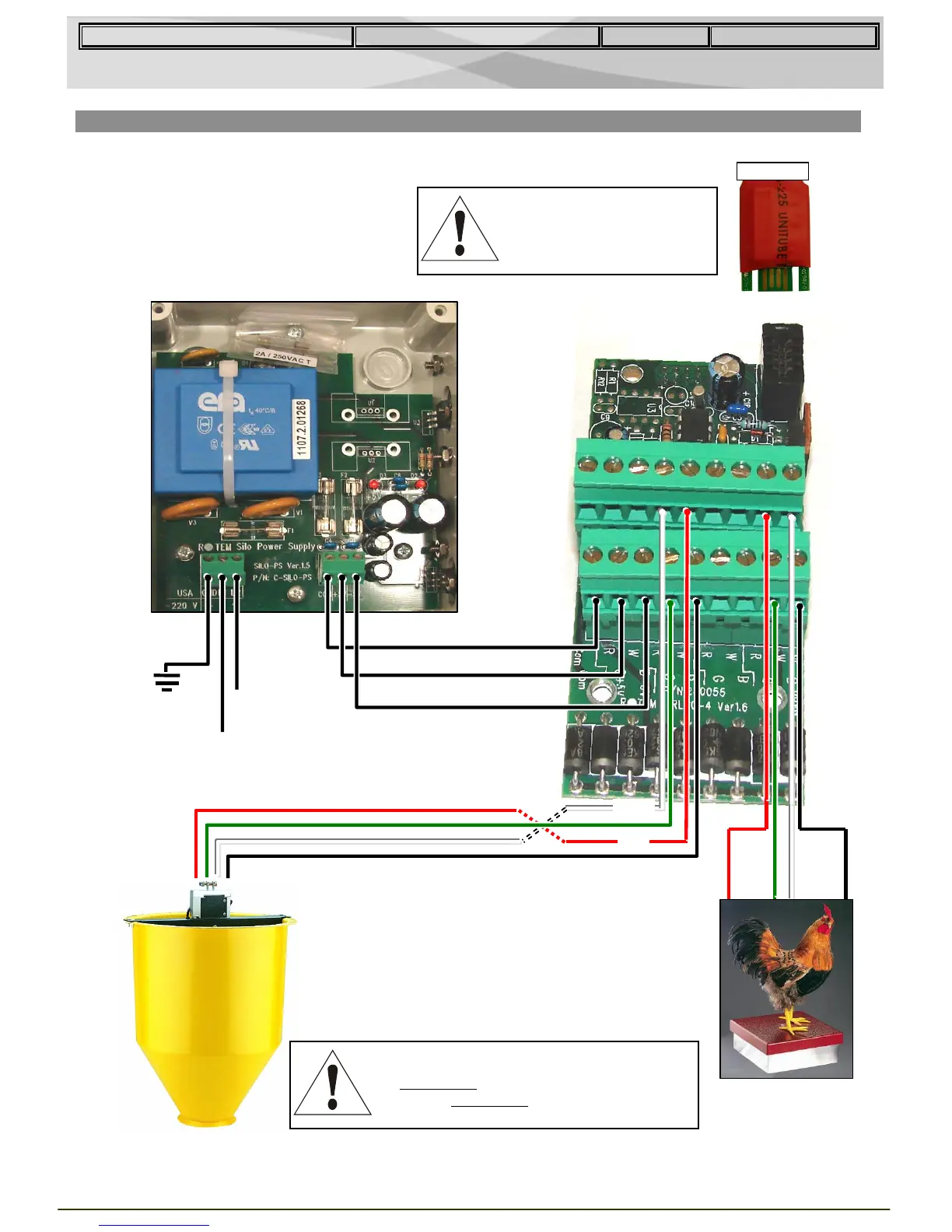

5.2 Feed Scale
Data Plu
The feed software data plug is
necessary only when the scale
card is connected to a feed bin.
230VAC
COM
+5V
-5V
GND
PHASE
L2 (USA)
NEUTRAL
L1 (USA)
Red
White
White
Red
Note: for RFC-1 swap between Red and White.
The feed scale’s
red goes to the RLCC-4’s white
(W) and the feed scale’s
white goes to the red (R).
Green
Black
To Next Page
