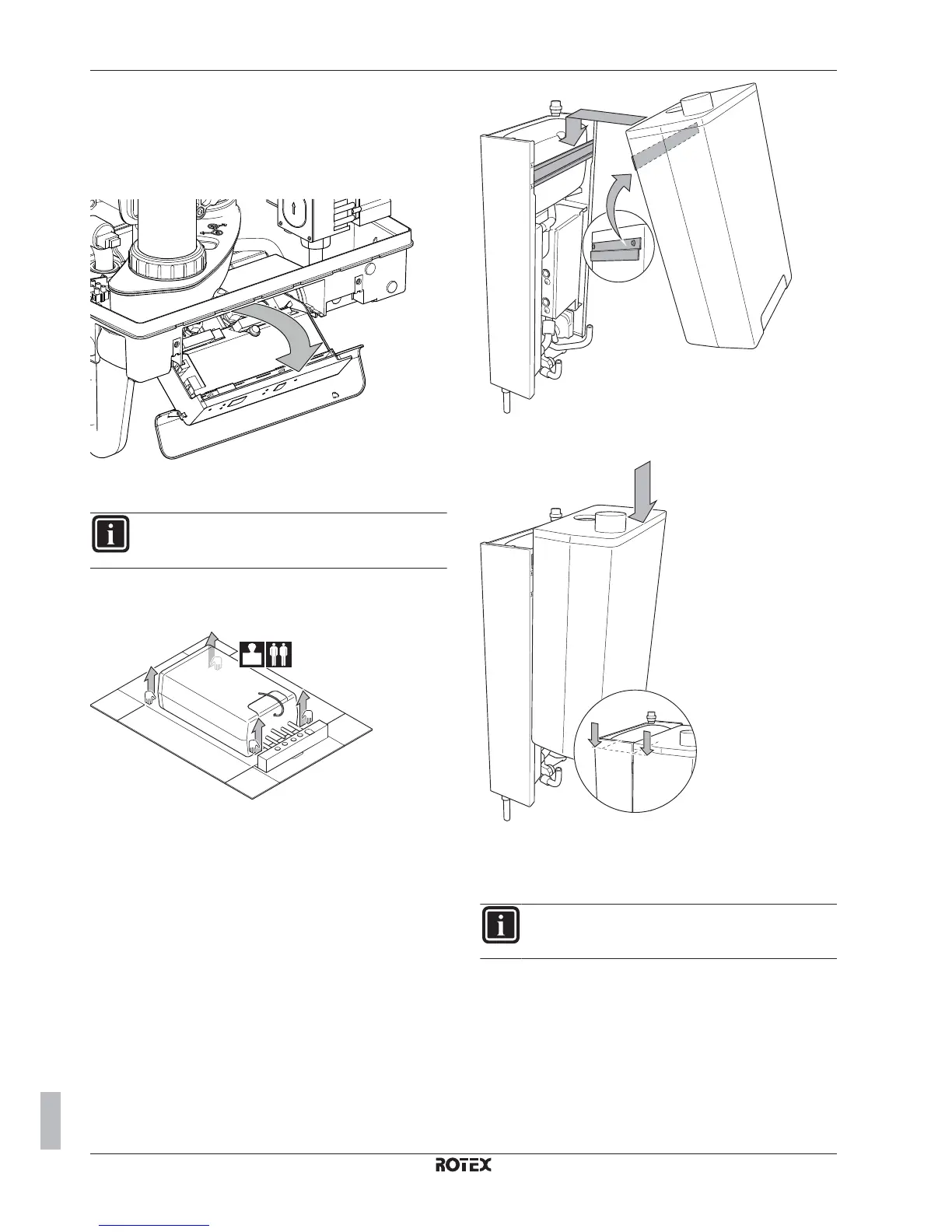

7 Installation
Installation and operation manual
12
RHYKOMB33AA
ROTEX HPU hybrid gas boiler module
4P353068-1B – 2014.02
7.1.2 To open the switch box cover of the gas
boiler
1 Open the gas boiler, see "7.1.1 To open the gas boiler" on
page 11.
2 Pull the boiler controller unit forwards. The boiler controller will
tip downwards to provide access.
7.2 Mounting the gas boiler
INFORMATION
Removing the top plate of the indoor unit makes it easier to
install the gas boiler.
7.2.1 To install the gas boiler
1 Lift the unit from the package.
36kg
2 Remove the top plate from the indoor unit.
3 The bracket to mount the boiler on the heat pump module is
already mounted to the backside of the gas boiler.
4 Lift the boiler. One person lifts the gas boiler on the left side (left
hand on the top and right hand on the bottom) and another
person lift the gas boiler on the right side (left hand on the
bottom and right hand on the top).
5 Tilt the top of the unit at the position of the indoor unit mounting
bracket.
6 Slide the boiler downwards to fix the boiler bracket onto the
indoor unit mounting bracket.
7 Make sure the gas boiler is fixed properly and well aligned with
the indoor unit.
7.2.2 To install the condensate trap
INFORMATION
The boiler is provided with a 25 mm flexible pipe on the
condensate trap.
Prerequisite: The boiler MUST be opened before installing the
condensate trap.
1 Fit the flexible tube (accessory) to the condensate trap outlet.
2 Fill the condensate trap with water.
3 Slide the condensate trap as far as possible upwards onto the
condensate drain connector below the gas boiler.
