RotorWay International
Exec 162F Maintenance Manual
52

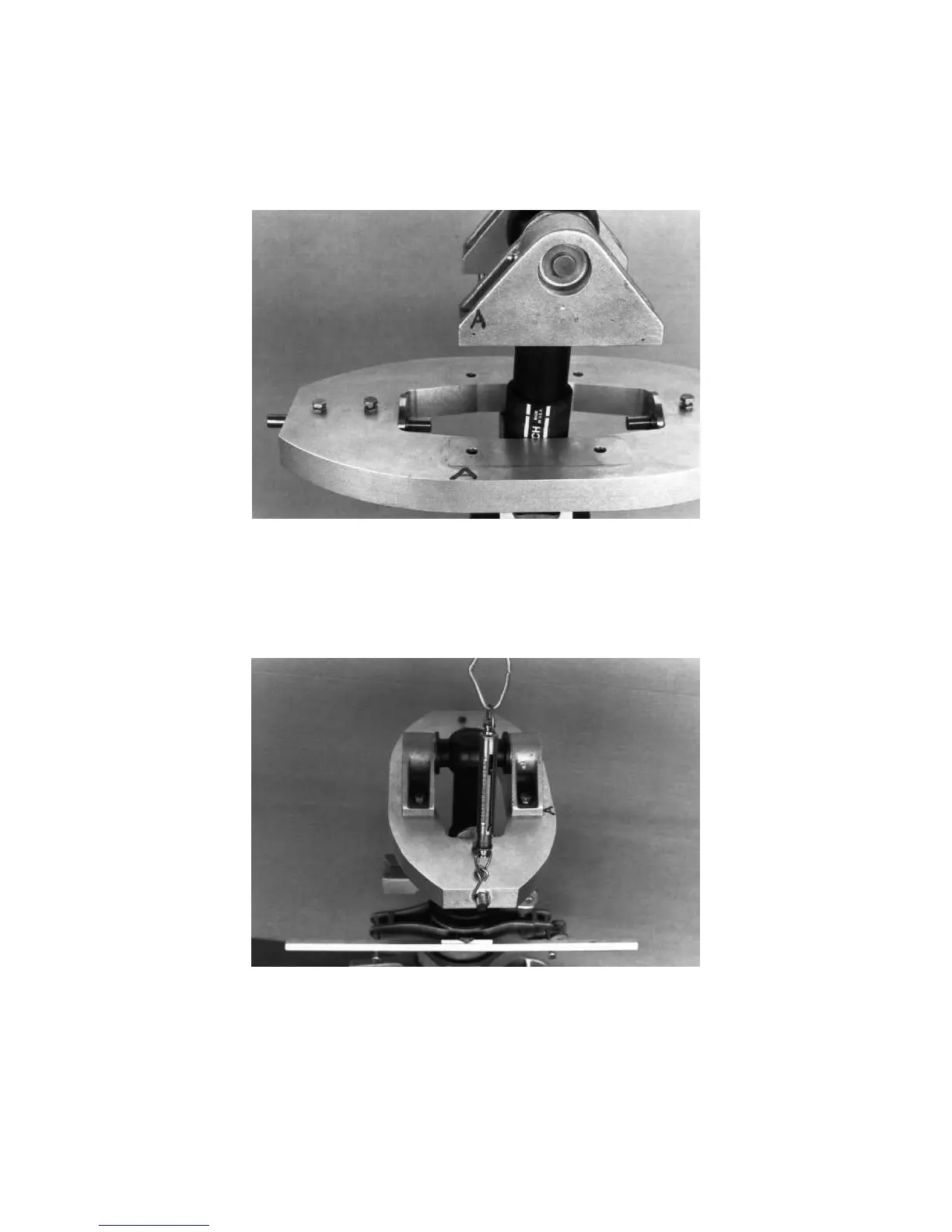

5. Next using the same marking on the hub, mark the shaft in relation to the hub and the teeter blocks. See photo #2.
Photo #2: Mark the hub plate, shaft and teeter blocks.
6. Place the spring scale on the outboard pin and pull up or down until the hub plate starts to move. Read the scale and
record the reading for later reference. See photo #3.
Photo #3: Measuring hub pressure with spring scale.
