Fuse Replacement
ENGINE COMPARTMENT FUSES

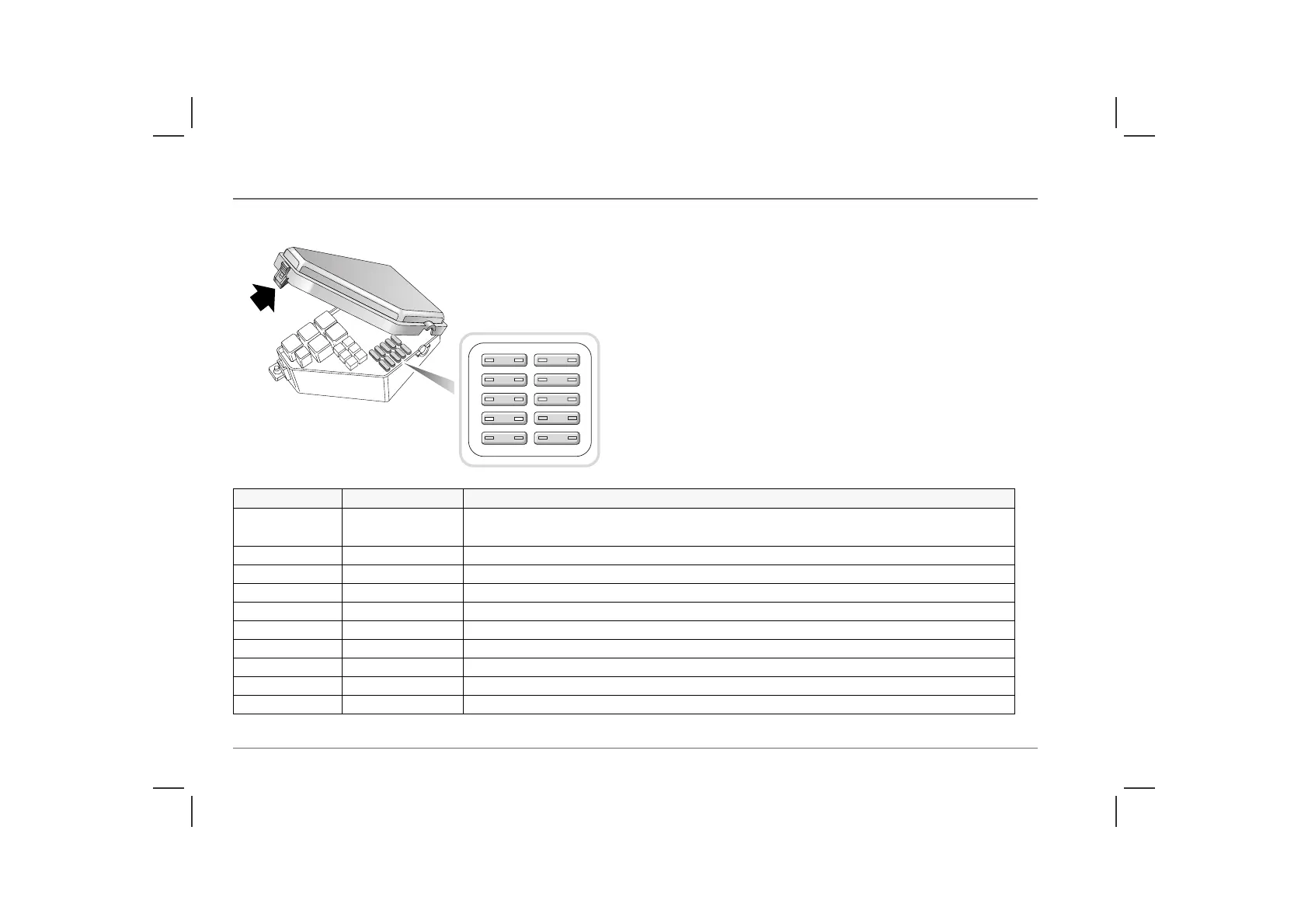

The fuse box is located on the left hand side of the engine
compartment. Press the catch (arrowed in illustration) to release
the hinged cover.
Owners are advised against removing or replacing the
fusible links identified on the underside of the fuse box lid.
Failure of any of these items should be investigated by a
qualified technician.
15
15
10
30
10
20
15
15
30
H3258a
20
Fuse number Rating (AMPS) Circuit protected
1 15A Exhaust gas recirculation, injection pump, pressure regulator (diesel models)
Oxygen sensors (petrol models), Engine management (all models)
2 20A Ignition coils (petrol models), Engine management (all models)
3 15A Camshaft and oxygen sensors (petrol models)
4 15A Automatic transmission, air conditioning, cooling fan, cruise control (diesel models)
5 10A Engine management (petrol models)
6 15A Front fog lights
7 30A Anti-lock brakes
8 20A Fuel burning heater (diesel models)
9 10A Air conditioning
10 30A Wipers and washers
