Rover HD TAB 700 - Optical Input RF Measures

52

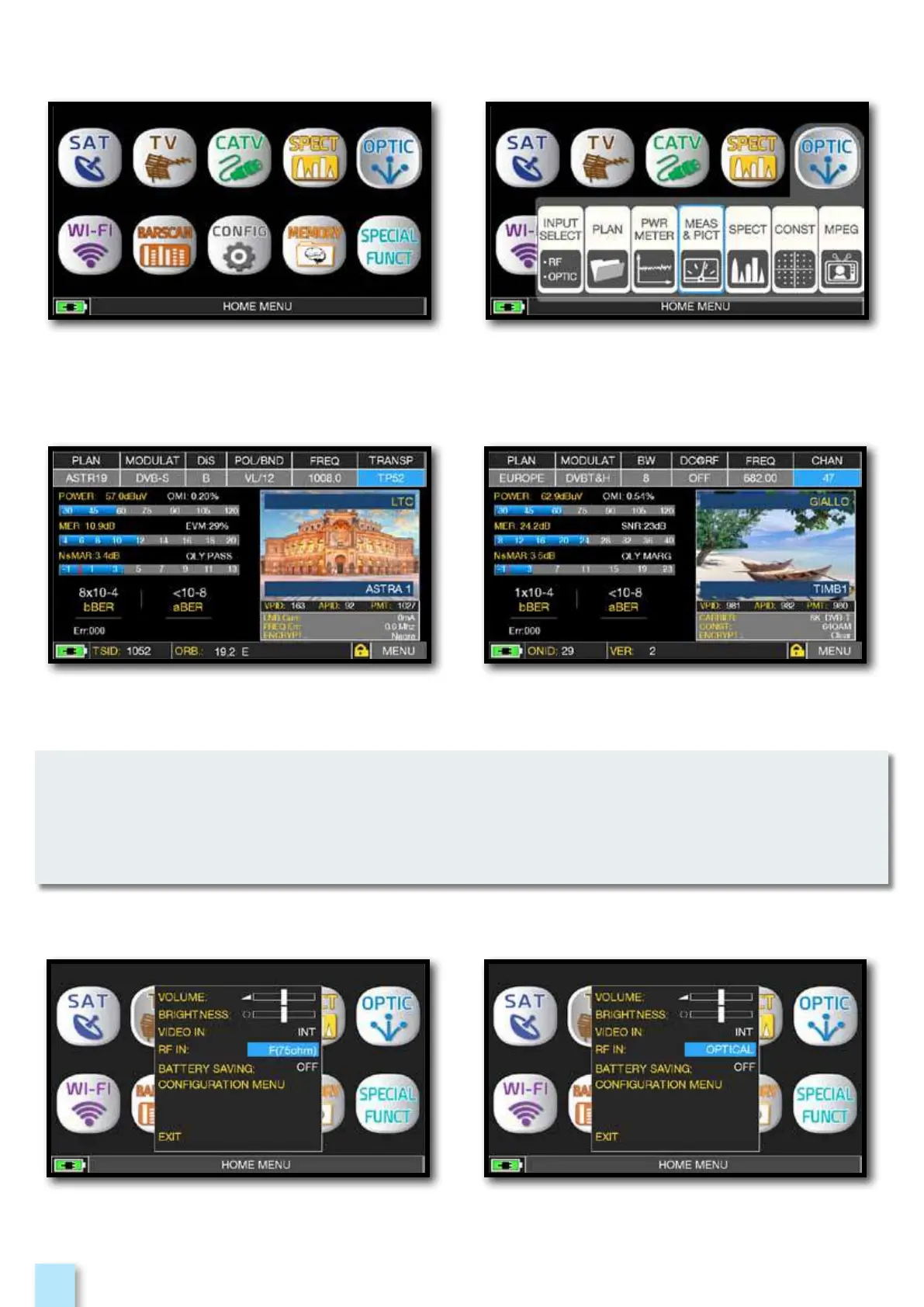

Main measures and image of a SAT signal. Main measures and image of a TV signal.

After selecting the desired Operation Mode,
TV, CATV or SAT, press the “HOME” key.
Touch “OPTIC” and then “MEAS & PICT”
or use the encoder.
Example 2:
Example 2:
Example 1:
Example 1:
F 75 ohm ingress selected. OPTIC ingress selected.


In optical mode, you can measure the spectrum and measure just on Low Band Vertical.
•฀฀It฀is฀possible฀to฀manually฀switch฀the฀input฀of฀the฀RF฀IN:฀F฀(75฀ohm)฀or฀OPTICAL฀signal.฀
Press the VOLUME button, select “RF IN” and choose the desired mode.
