for more information about the “APP”s, contact your distributor or send an e-mail to:
wecare@roverinstruments.com
Distribution

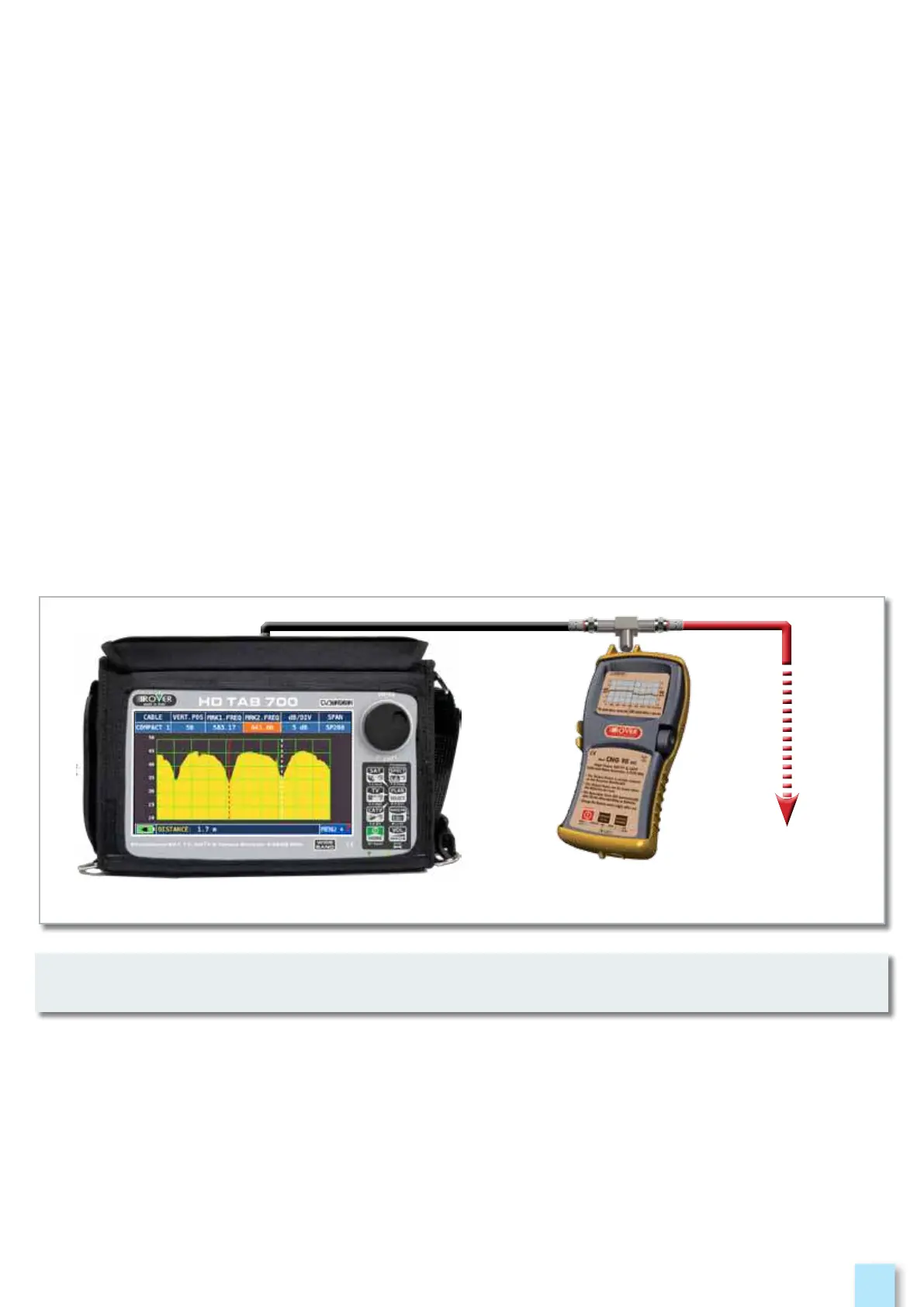

cable
mod. ROVER
CNG 90 STC
mod. ROVER HD TAB 700
Cable: from 1 to 5.
•฀Default coaxial cable configurations (adjustable).
TYPE: Type of cable to be tested.
•฀AIRSPACE: coaxial cable with dielectric in the air.
•฀COMPACT: coaxial cable with compact dielectric.
•฀FOAM: coaxial cable with foam dialectric.
V.O.P.: Propagation speed.
•฀Set the value provided by the cable manufacturer.
UNIT: Measurement unit.
•฀Set the value in meters or feet.
PICTURE: Spectrum graphics.
•฀Set the spectrum graphics mode to FULL or CONTOURS.
LOC.OSC.: LOCAL TV OSCILLATOR.
•฀Leave the value set by the manufacturer: 0 MHz.

