Royal Enfield Himalayan Service Manual

ROYAL ENFIELD HIMALAYAN BS III VEHICLE SERVICE MANUAL
99
Fastener, Size, Tool Usage, Precautions, Photos
Aggregate to Assemble/
Instructions

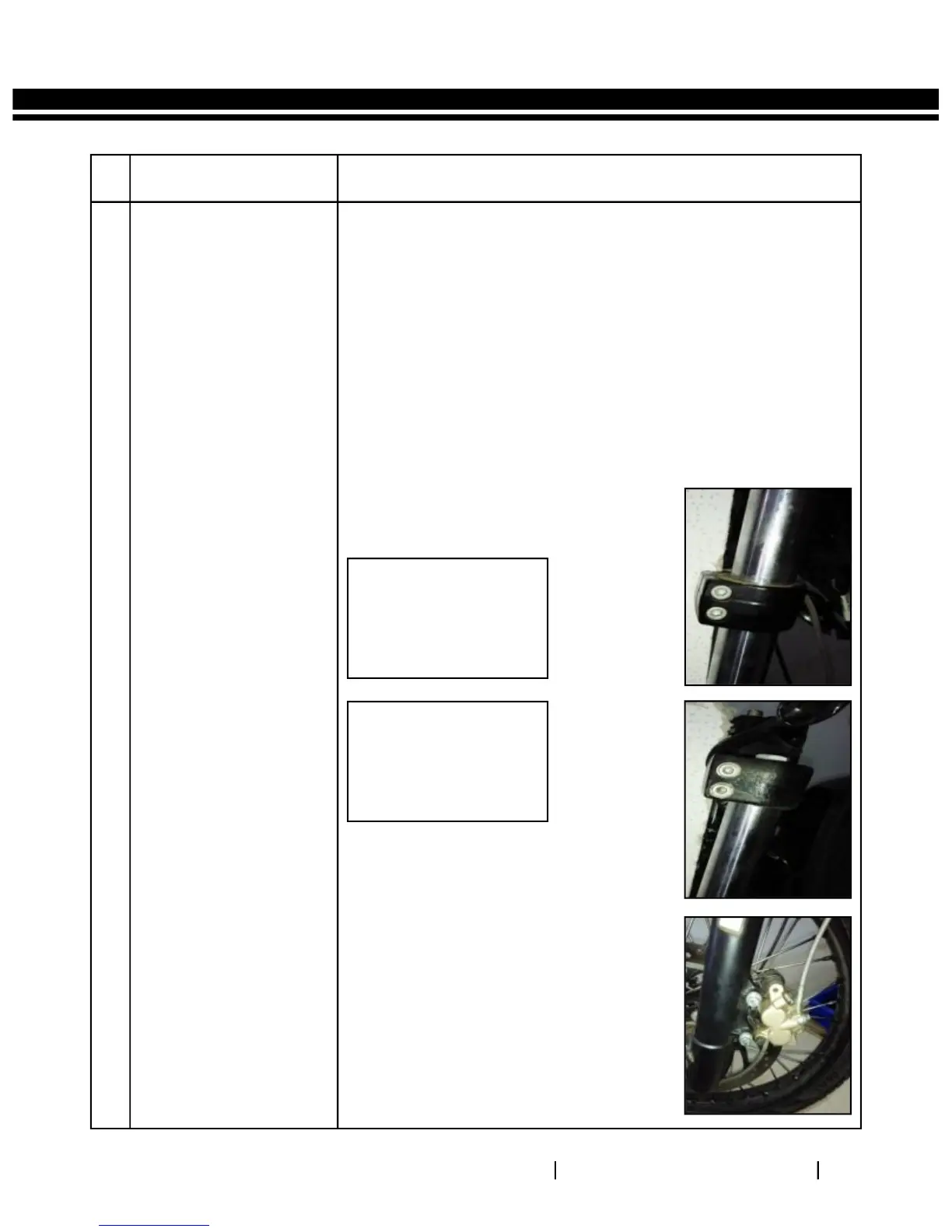

11.17 Front Fork Assy LH
& RH
Fork assy on
steering stem
 Insert fork assy LH from
LH side of steering stem
bottom till it is seated
into the top yoke and
flush with the top of the
top yoke.
 Insert fork assy RH from
RH side of steering stem
bottom till it is seated
into the top yoke and
flush with the top of the
top yoke.
 Tighten 4 Hex socket
head screws on the LH
and RH sides of the
steering stem assembly
sufficiently.
 Tighten 4 Hex socket
head screws on LH and
RH sides of the top yoke
sufficiently.
 Assemble front
mudguard and brace
 Locate front wheel
caliper on fork Lh and
tighten with 2 Hex flange
bolts.
S.
No.
Hex. Socket screw : M8
Allen head socket : 6mm
Torque : 22.5 Nm (2.25
Kg.m)
Hex. Socket screw : M8
Allen head socket : 6mm
Torque : 22.5 Nm (2.25
Kg.m)

Royal Enfield Himalayan Specifications

General

Engine Type	Single Cylinder, 4 stroke, Air cooled, SOHC
Displacement	411 cc
Max Power	24.3 bhp @ 6500 rpm
Max Torque	32 Nm @ 4000 - 4500 rpm
Fuel System	Electronic Fuel Injection
Transmission	5-speed constant mesh
Front Suspension	Telescopic, 41 mm forks, 200 mm travel
Rear Suspension	Monoshock with linkage, 180 mm wheel travel
Front Brake	300 mm disc, 2-piston floating caliper
Fuel Tank Capacity	15 liters
Seat Height	800 mm
Ground Clearance	220 mm
Kerb Weight	199 kg
Bore x Stroke	78 mm x 86 mm
Compression Ratio	9.5:1
Clutch	Wet, multi-plate
Frame Type	Half-duplex split cradle frame
Tyre Size (Front)	90/90 - 21
Tyre Size (Rear)	120/90 - 17
Wheelbase	1465 mm
Rear Brake	240mm disc, single-piston floating caliper
ABS	Dual Channel ABS (Switchable)
