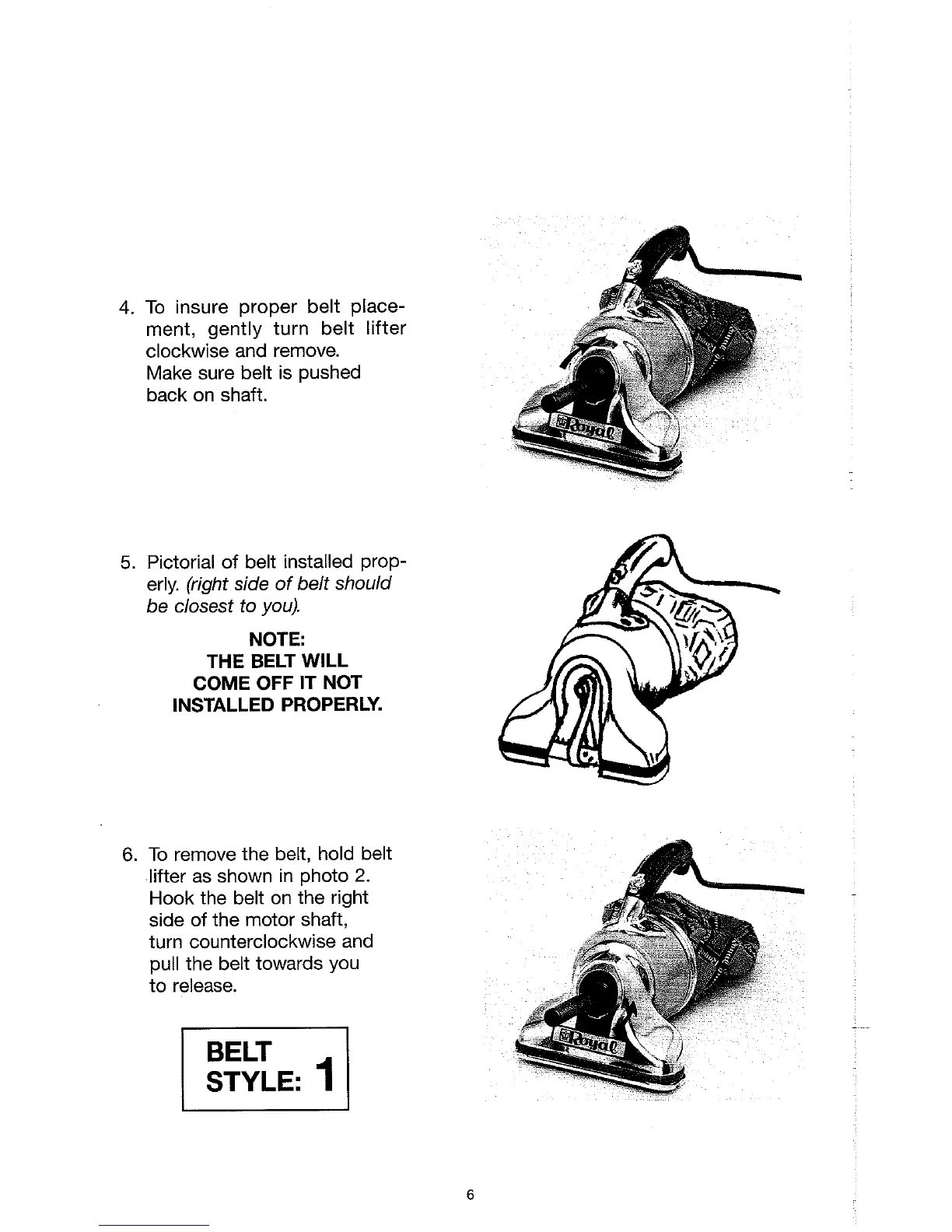

4.
To insure proper belt place-
ment, gently turn belt lifter
clockwise and remove.
Make sure belt is pushed
back on shaft.
5.
Pictorial of belt installed prop-
erly. (right side of belt should
be closest to you).
NOTE:
THE BELT WILL
COME OFF IT NOT
INSTALLED PROPERLY.
6.
To remove the belt, hold belt
lifter as shown in photo
2.
Hook the belt on the right
side of the motor shaft,
turn counterclockwise and
pull the belt towards you
to release.
BELT
STYLE:
1
