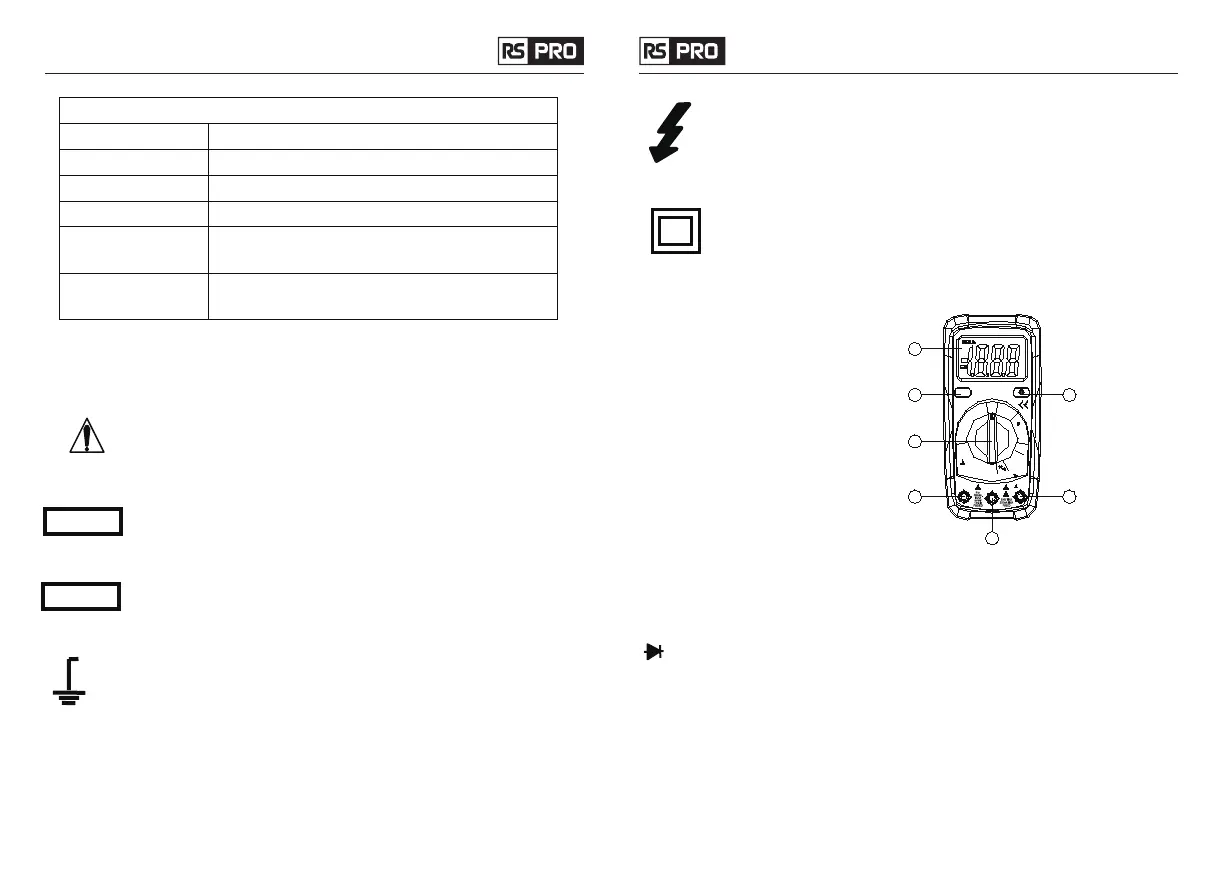

RS PRO RS-12 - Controls and Jacks; Symbols and Annunciators

This symbol adjacent to another symbol, terminal or
operating device indicates that the operator must refer to
an explanation in the Operating Instructions to avoid
personal injury or damage to the meter.
This WARNING symbol indicates a potentially hazardous
situation, which if not avoided, could result in death or
serious injury.
This CAUTION symbol indicates a potentially hazardous
situation, which if not avoided, may result damage to the
product.
This symbol advises the user that the terminal(s) so marked
must not be connected to a circuit point at which the voltage
with respect to earth ground exceeds (in this case) 500 VAC
or VDC.
This symbol adjacent to one or more terminals identifies
them as being associated with ranges that may, in normal
use, be subjected to particularly hazardous voltages. For
maximum safety, the meter and its test leads should not be
handled when these terminals are energized.
This symbol indicates that a device is protected throughout
by double insulation or reinforced insulation.
1. LCD Display
2. Function switch
3. 10A jack
4. COM jack
5. Positive jack
6. Data Hold Button
7. Backlight Button
Note: Tilt stand, fuse and battery compartment are on rear of unit.
SAFETY SYMBOLS
CONTROLS AND JACKS
SYMBOLS AND ANNUNCIATORS
2 3
Digital Multimeter/English Digital Multimeter/English
Input Limits
Function
Maximum Input
VAC
600V DC/AC
V DC or V AC
600V DC/AC, 200Vrms on 200mV range
mA DC
200mA 250V fast acting fuse
A DC
10A 250V fast acting fuse
(30 seconds max every 15 minutes)
Resistance,
Continuity
250Vrms for 15sec max
MAX
500V
WARNING
CAUTION
10A
COM
V mA
OFF
600
200
2000
20m
200
m
10A
1.5V
9V
200
2000
20k
200k
2000
k
600
200
20
2000
m
200
m
V AC
A DC
BATT.
CAT III 600V
V
DC
HOLD
1
6
2
3
7
5
4
Continuity
Diode test
µ micro (amps)
m milli ( volts, amps)
k kilo (ohms)
Ω ohms
VDC volts direct current
VAC volts alternating current
•)))
ADC amps direct current
BAT Battery test
