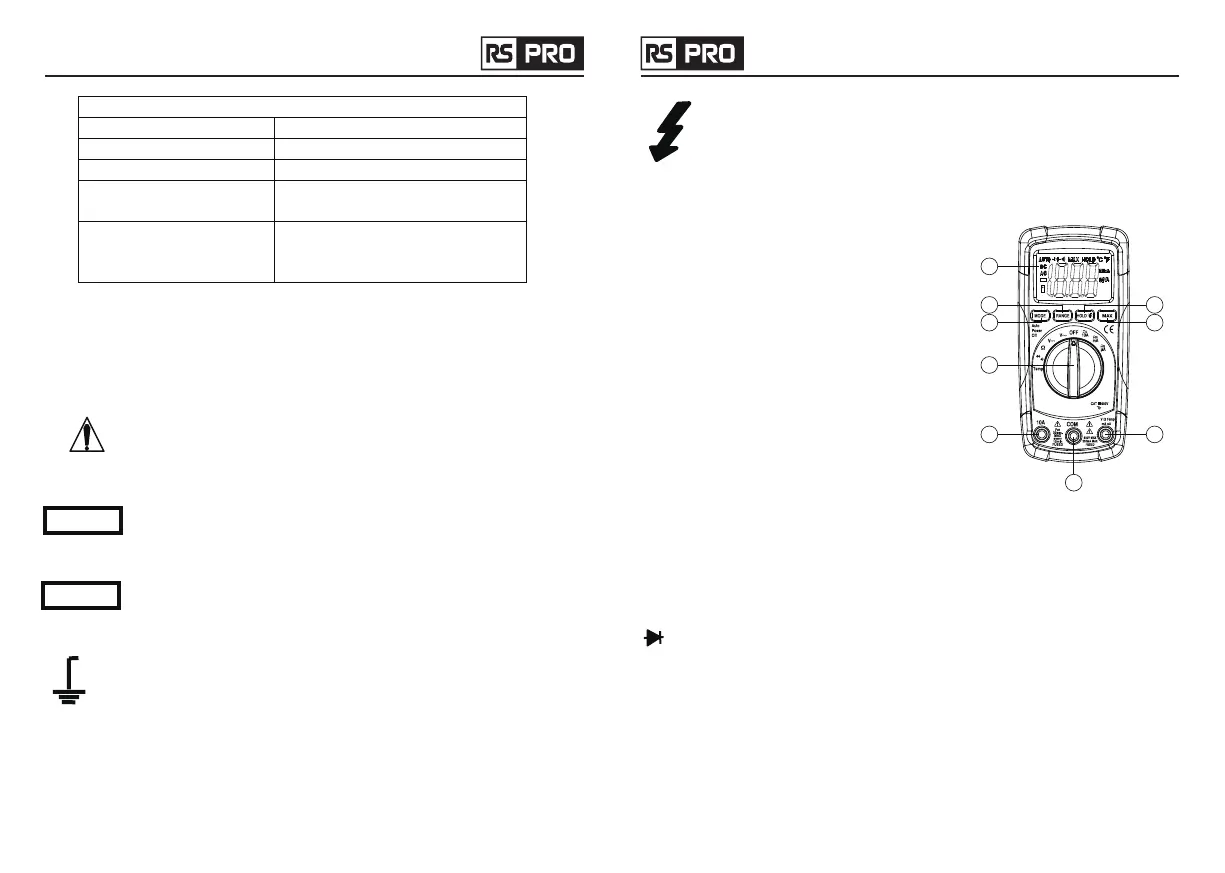

RS PRO RS-14 - Safety Symbols; Controls and Jacks; Symbols and Annunciators

This symbol adjacent to another symbol, terminal or
operating device indicates that the operator must refer to
an explanation in the Operating Instructions to avoid
personal injury or damage to the meter.
This WARNING symbol indicates a potentially hazardous
situation, which if not avoided, could result in death or
serious injury.
This CAUTION symbol indicates a potentially hazardous
situation, which if not avoided, may result damage to the
product.
This symbol advises the user that the terminal(s) so marked
must not be connected to a circuit point at which the voltage
with respect to earth ground exceeds (in this case) 500 VAC
or VDC.
This symbol adjacent to one or more terminals identifies them
as being associated with ranges that may, in normal use,
be subjected to particularly hazardous voltages. For
maximum safety, the meter and its test leads should not be
handled when these terminals are energized.
SAFETY SYMBOLS
CONTROLS AND JACKS
SYMBOLS AND ANNUNCIATORS
2 3
Autoranging Multimeter/English Autoranging Multimeter/English
M
AX
500V
WARNING
CAUTION
Continuity
BAT Low Battery
Diode
HOLD Data Hold
MAX Max data Hold
AUTO AutoRanging
AC Alternating Current or Voltage
DC Direct Current or Voltage
ºF Degrees Fahrenheit
ºC Degrees Centigrade
•)))
Input Limits
Function Maximum Input
V DC or V AC CATIII-600V DC /AC
mA DC/AC 200mA/250V DC/AC
A DC/AC
10A/250V DC/AC (30 seconds
max every 15 minutes)
Resistance, Diode test,
Continuity,
Temperature
250V DC/AC
1. 2000 count Liquid Crystal Display
with symbolic signs
2. Function switch
3. 10A (positive) input jack for 10A DC
or AC measurements
4. COM (negative) input jack
5. Positive input jack
6. Range pushbutton
7. Mode pushbutton: selection Continuity/
Diode, AC/DC, Temperature(C/F)
8. DATA HOLD/BACKLIGHT CONTROL pushbutton
9. MAX. Hold pushbutton
1
6
7
8
9
2
3
4
5
