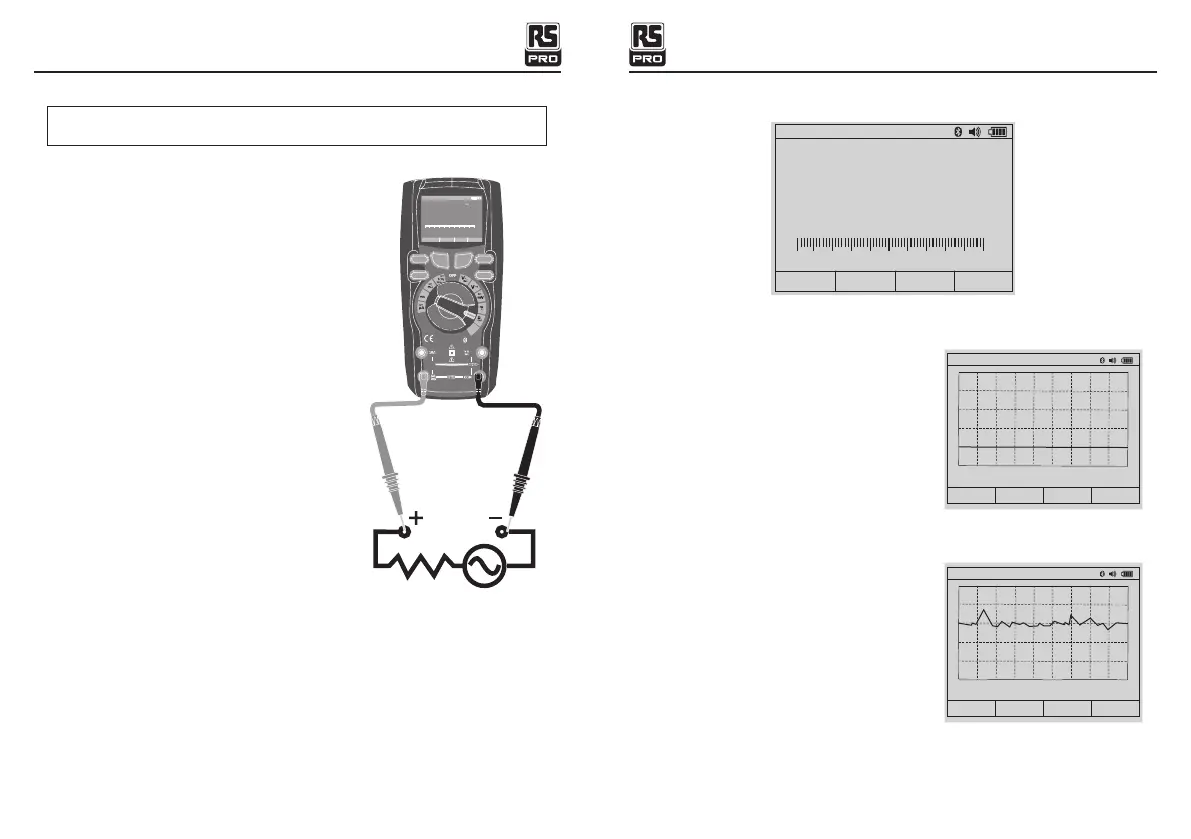

5-12. AC Current Measurements
CAUTION: Do not make 10A current measurements for longer than 30
seconds.
Exceeding 30 seconds may cause damage to the meter and/or the test leads.
1.Insert the black test lead banana plug into the
negative COM jack.
2.For current measurements up to 5000µA AC,set
the function switch to the yellow µA position and
insert the red test lead banana plug into the
µA/mA jack.
3.For current measurements up to 500mA AC,set
the function switch to the yellow mA position
and insert the red test lead banana plug into the
µA/mA jack.
4.For current measurements up to 10A AC,set the
function switch to the yellow 10A position and
insert the red test lead banana plug into the 10A
jack.
5.Press the MODE button to indicate “AC” on
the display.
6.Read the current in the display.
5-13. % 4 – 20mA MEASUREMENTS
1.Set up and connect as described for DC mA measurements.
2.Set the rotary function switch to the 4-20mA% position.
3.The meter will display loop current as a % with 0mA=-25%, 4mA=0%, 20mA=100%,
and 24mA=125%.
Blue tooth
5
20A for
30 sec
MAX
every
15 min
TEM P
C A P
4~
20
%
TE M P
°C °F
RAN GE SETU P S AVE HOL D
Aut o range 00 :00
True R MS Mult imete r
1 00. 00
A
0
1
2
3
4
5A
F1
HOLD
REL
RANG E
F2 F3 F 4
6. Default Display
6-1. Graph Measure
Press Software key lable Graph (F1), Meter
will switch to Graph measure.
Press soft key START button. Press FAST or
SLOW soft keys to adjust sampling
rate. Press CANCEL soft key to exit Graph and
return to normal measurement mode
Press STOP soft key.
V~
0 0 0 0. 0
Auto range
06:32pm
GRAPH MODE SAVE MAX
0.0000 V~
SLOW
CANNEL
FAST
Auto range
06:32pm
0
Rate: 0.2 s
Range: 0.01
START
0
1
2
3
4
5 V
-2.6000 mV DC
STOP
Auto range
06:32pm
0
Rate: 0.2 s
Range: 500
