RTI AD-8x User Manual

Audio Distribution System
AD-8x
16
CHAPTER 2 | FEATURES AND DESCRIPTION

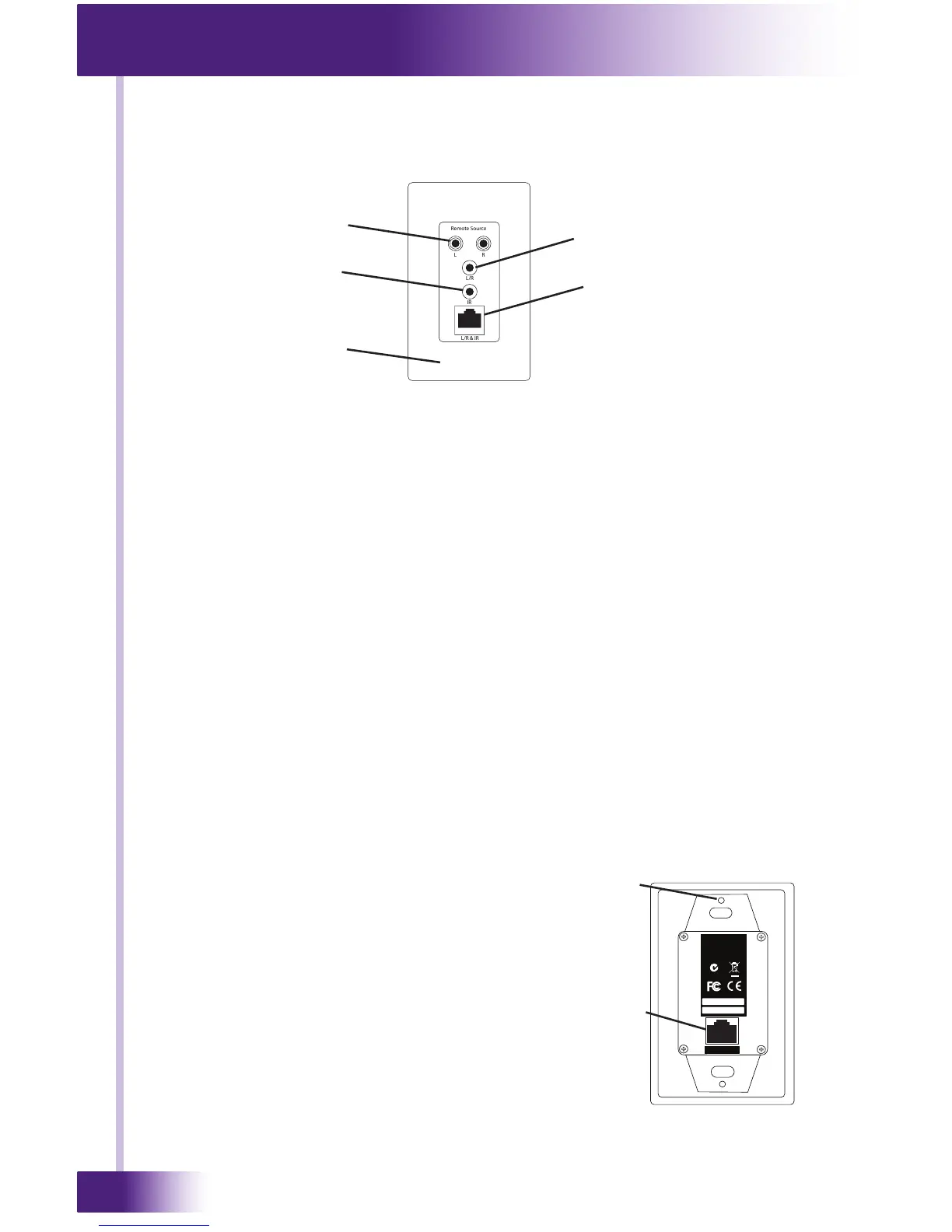

RSP-1* REMOTE SOURCE PLATE - FRONT
L R
L/R
IR
L/R & IR
Remote Source
1
4
2
3
1. Audio Inputs - RCA
Two RCA input jacks for connection to the output (left and right) of the
remote audio source (Apple iPod
®
, Satellite Tuner etc).
2. Audio Inputs - 3.5mm
One 3.5mm stereo mini jack for connection to the output of the remote
audio source (iPod
®
, PC etc).
3. IR Output
One 3.5mm mono mini jack for connection of an IR emitter to control the
remote source from a control system.
4. Audio Inputs and IR Output
Note: Normally, this connection would not be used.
This RJ-45 connection carries the left and right audio inputs from the remote
source and the IR control output over cat-5 cable.
5. Decora
®
faceplate (not included)
Compatible with standard single-gang Decora
®
style faceplates.
5
RSP-1* REMOTE SOURCE PANEL - REAR
Remote Source Plate
RSP-1
S/N Model
Remote Source Plate
S/N
Model
RSP-1
Remote Technologies Inc.
www.rticorp.com
Made in Taiwan
117 612 914
RSP/01
P/N 20-210125-13
6
7
6. Mounting holes
Use screws to mount the RSP-1 in a standard
single-gang electrical box.
7. Audio and IR control - RJ-45
This RJ-45 connection carries the left and right
audio inputs from the remote source and the IR
control output between the AD-8x and the remote
source.
*Note: RSP-1 sold separately.
