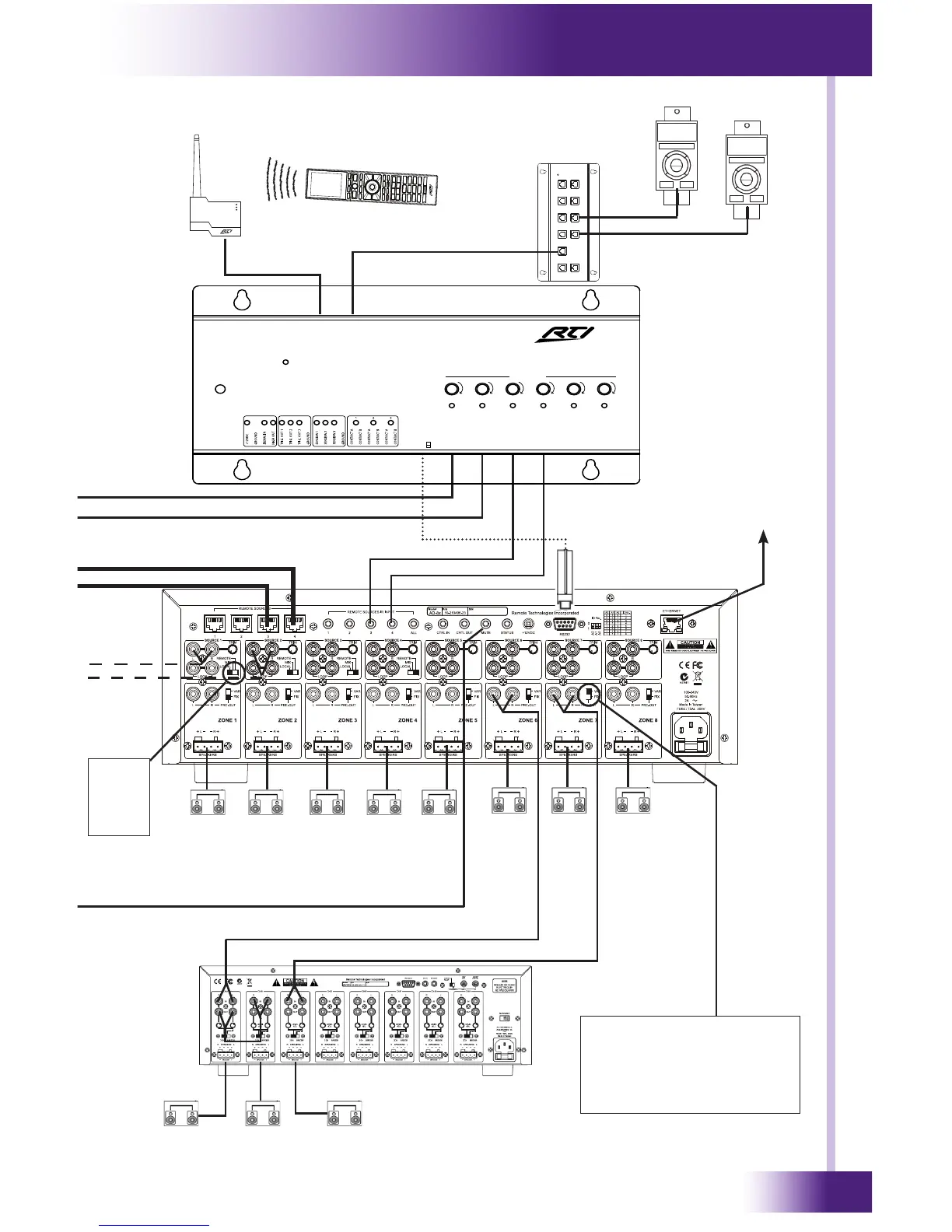

It’s Under Control
®
RS-232
RJ45>DB9
Adapter
AD-8x
Audio
Zone 1
Audio
Zone 2
Audio
Zone 3
Audio
Zone 4
Audio
Zone 5
Audio
Zone 6
Audio
Zone 7
Audio
Zone 8
Pre-Out
Cable
The PRE-OUT can be set to either
xed (FIX) or variable (VAR).
The PRE-OUT level will ramp up
and down with the corresponding
zones volume control when set to
the variable (VAR) position.
Pre-Out
Cable
Audio
Zone 6
Audio
Zone 6
Audio
Zone 7
RTI CP-1650
Amplier
RESET
ETHERNET
EXPANSION
PORT 1 PORT 2 PORT 3
PORT 4
PORT 5
PORT 6
+
+ +
+ +
+
USB
RTI COM
POWER
STATUS
RS-232
POWER / IR
+12VDC TRIGGER
+3-24VDC SENSE
RELAYS (+30VDC, 5A MAX)
IR OUTPUT LEVEL
1
2
Model XP-6
Advanced Control Processor
XP-6
ZM-24
Transceiver
Module
RTI Remote Control
Local/
Remote
Source
switch
RTI CB8
RTI Keypads
To (LAN)
(For IP control, refer
to previous section.)
