Z506-B Reference Manual V1.0
12

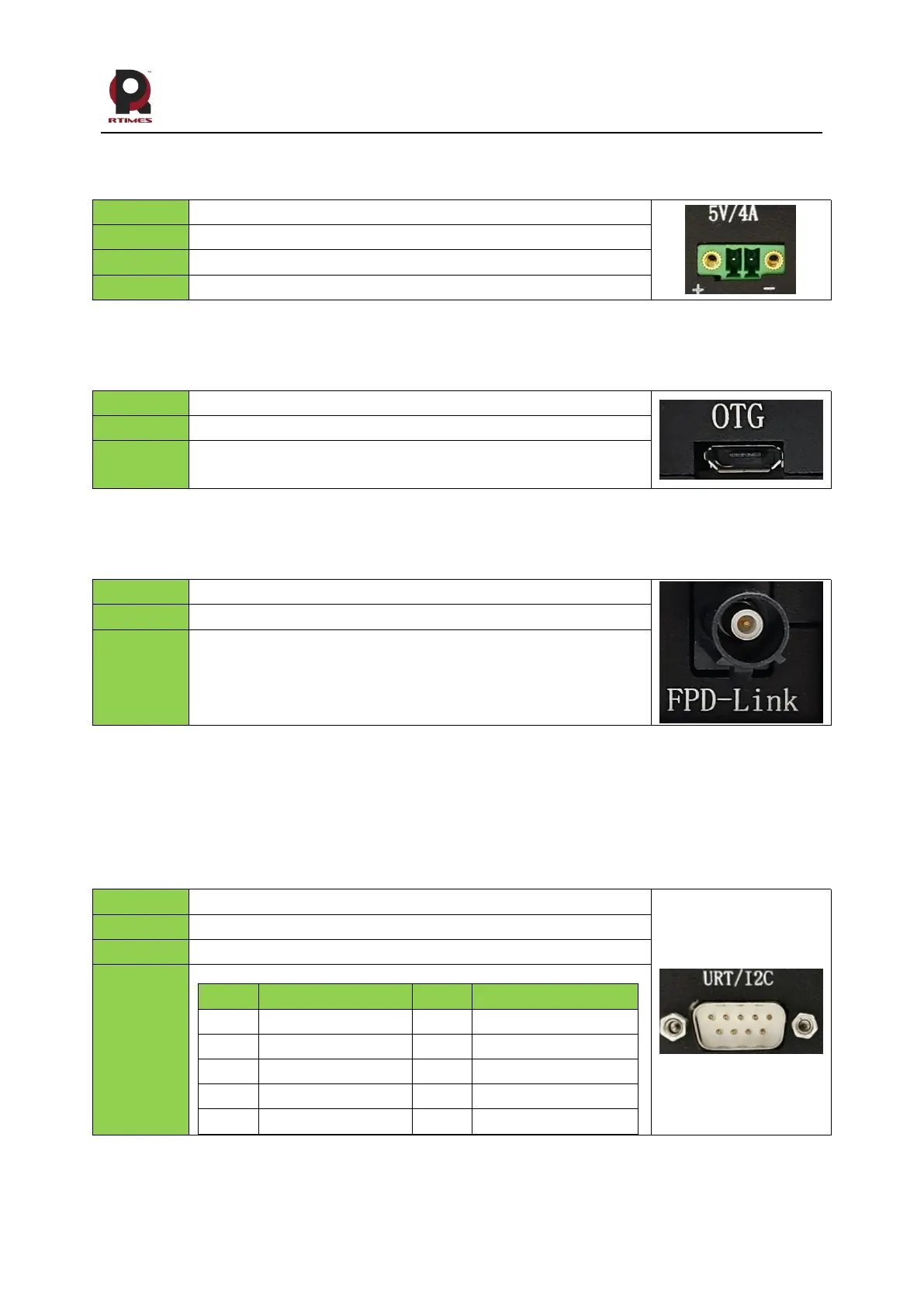

4.5 Power input port
Function
Power input port
marking
Power Input
Type
2Pin interface
Pin define
Input voltage: +5V
4.6 OTG-USB2.0 connector
Function
USB2.0 connectors
marking
USB-OTG
Type
UBS3.0 Micro Type-B
4.7 FDP-LINK III connector
Function
FDP-LINK III camera input connectors
marking
FDP-LINK camera port
Type
4.8
Function connector
Function
Serial port
marking
URT/I2C
Type
DB9
Pin define
Pin
Signal
Pin
Signal
1
UART2_TXD
2
UART2_RTS
3
UART3_TXD
4
UART3_RTS
5
GND
6
UART2_RXD
7
UART2_CTS
8
UART3_RXD
9
UART3_CTS
