RTimes Z506-S - Wifi Antenna Connector; Hardware Update History

Realtimes Beijing Technology Co.,LTD www.realtimesai.com

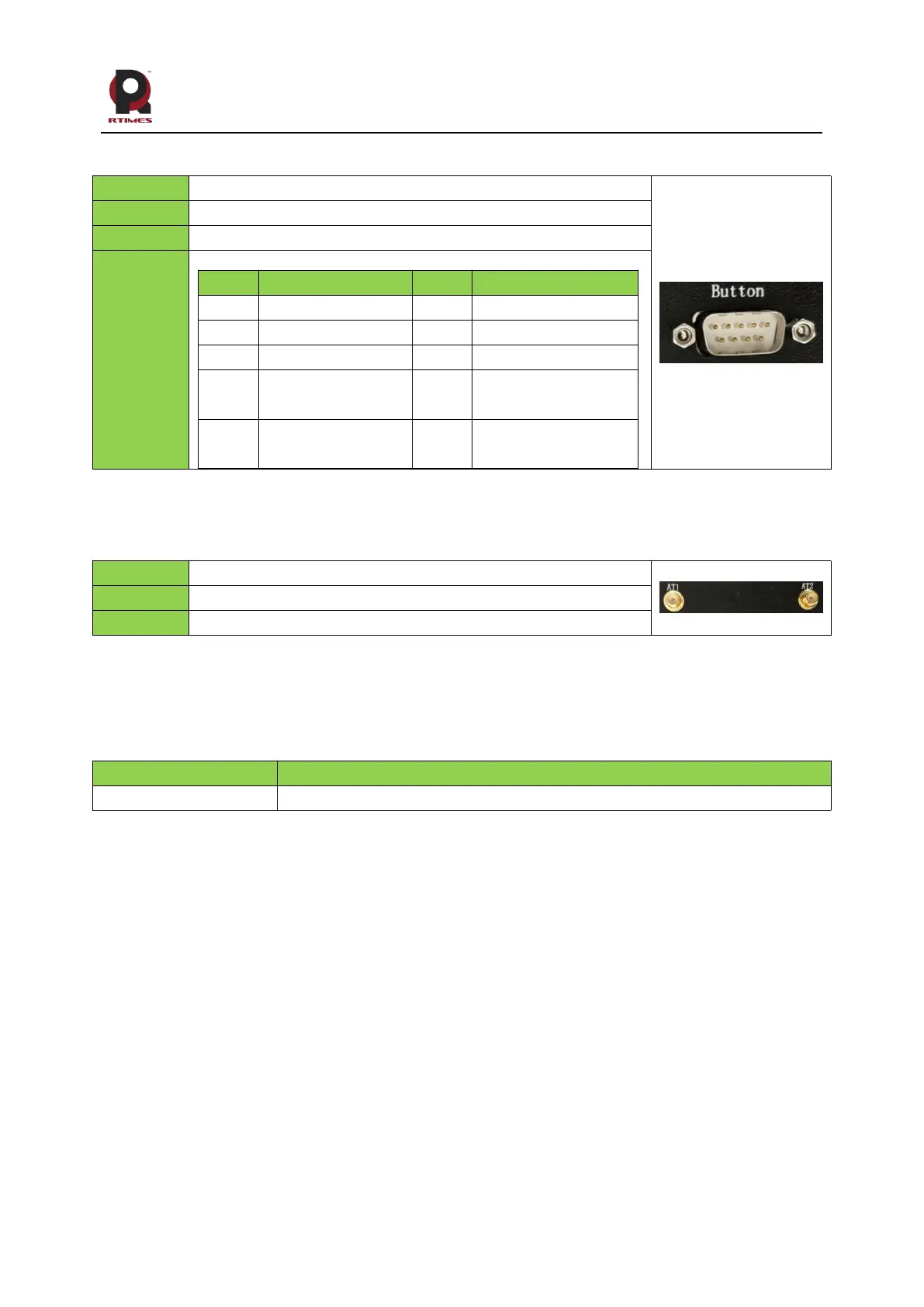

Z506-B Reference Manual V1.0
13
Function
Multi-function interface
marking
Button
Type
DB9
Pin define
Pin
Signal
Pin
Signal
1
GND
2
GND
3
GND
4
GND
5
GND
6
DEV_3V3
7
DEV_3V3
8
BUTTON_PWR_O
N
9
FORCE_RECOV
ERY
4.8 WiFi antenna connector
Function
WiFi antenna interface
marking
AT1 AT2
Type
ipex to sma female
5 Hardware update history
Z506-B hardware update history
edition
Updata description
V1.0
Initial release
