RTK RE 3 52 User Manual

3050-8010
Einbau- und Betriebsanleitung
Installation and Operating instructions
Instructions de montage et de service
Regeltechnik Kornwestheim
GmbH
Max-Planck Straße 3
D-70806 Kornwestheim
Telefon +49 7154 / 13 14 - 0
Telefax +49 7154 / 13 14 - 31
Internet www.rtk.de
E-Mail info@rtk.de
- 44 -
10.2 Entering parameters of the segments
The number of segments is generally set at 20 for all tracks. Whether all or only some of the
segments are used is decided only by entering the segment parameters (time, value).
The first time segment after the last defined segment Tp i+1 is set at “----”
and finishes the entry series. The entry prompt is then ended.
a Entering the segment times Tp: 0 ... 9999 minutes without decimal points!
Entry series per formula in the parameter level (Display 2):
Change mode Wmode “Leap/Ramp”
Preset type Pmode “Program time/Segment start”
Number of the following program PNext
Bandwidth LC-
Bandwidth LC+
Reset-value Wp0 (analog track)
Set values profile
Segment times Tp1 ... Tp20 [min]
Set values Wp1 ... Wp20
Reset value D0 (control tracks)
Control tracks 1...4
Segment times Td1 ... Td20 [min]
Set values Dp1 ... Dp20
The set values for the control tracks are entered in a setting procedure using the 4 decimal places of
Display 2 (“0" = off; ”1" = on):
e.g. control track -> 1 2 3 4
0 1 0 1
off on off on
10.3 Display and representation of times
Segment times are set and displayed in full minutes without decimal places!
Gross, Net and Time Remaining are displayed on the front (Display 2) in hours . minutes (extended
operating level). Times greater than 99h.59min are rounded and displayed in full hours
without minutes. Times relating to the past ( tBrut,tNet ) are rounded down.
Times relating to the future ( tRest) are rounded up.
Time remaining tRest = 66.45 = 66 h 45 min

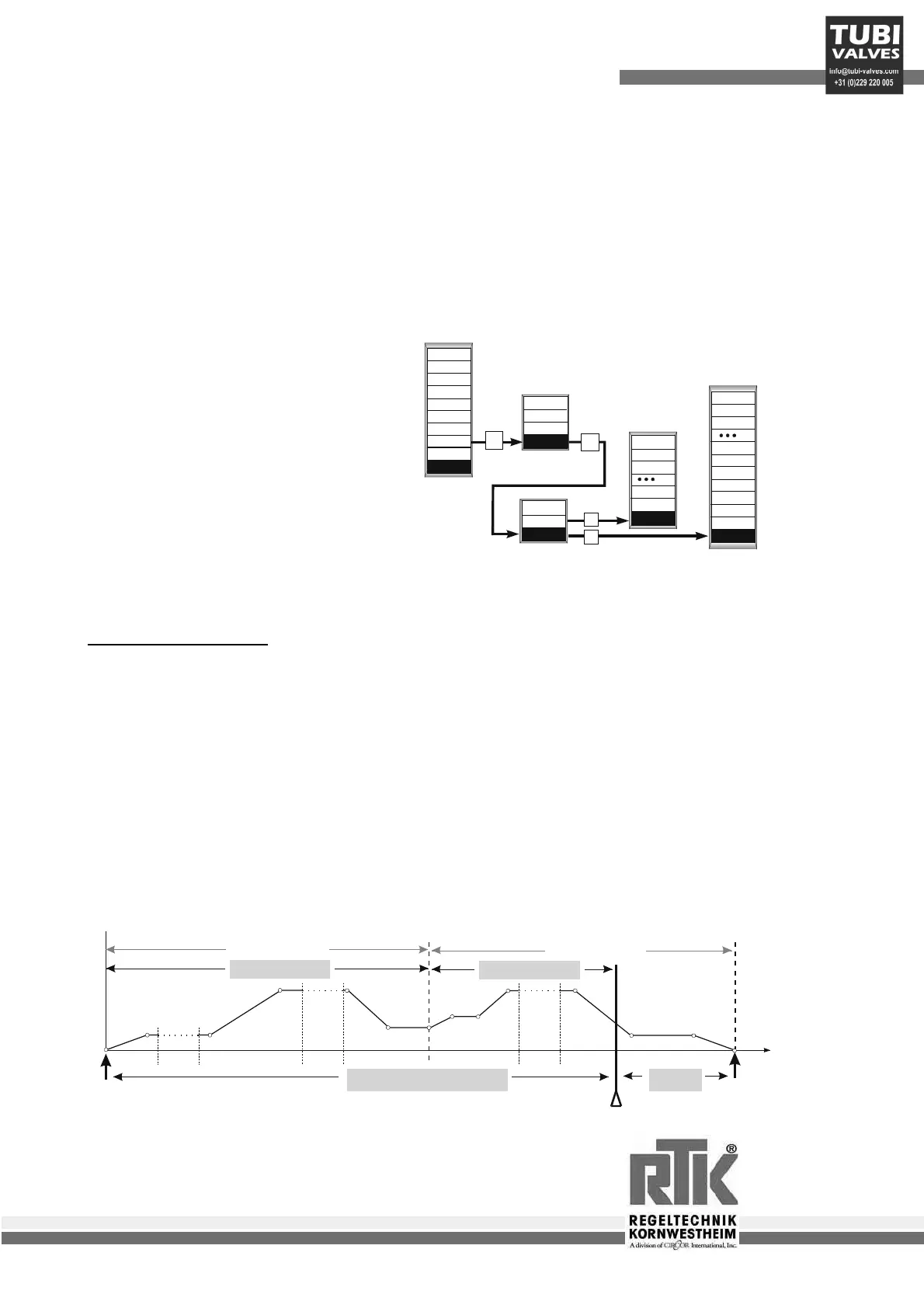

Meaning of the programmer times
End
D20
Td20
D1
Td1
D0
End
W
p
20
T
p
20
Wp1
Tp1
Wp0
LC+
LC-
P
nex
t
P
mo
d
e
W
mo
d
e
End
Signl
Aux
Input
Contr
Tune
Limit
Prog
Timer
Setp
I
D
I
D
I
D
+
+
I
D
I
D
End
Recp3
Recp2
Recp1
End
Digit
Analg
+
+
P
P
P
P
Run
tR
es
t
reset
end
Run
t
Run
Run
current point
in time
RunStop Stop Stop
tNet = Run ]
tNet = Run ]
Program 1
Program 2
tB
ru
t
= Run + Stop ] ]
