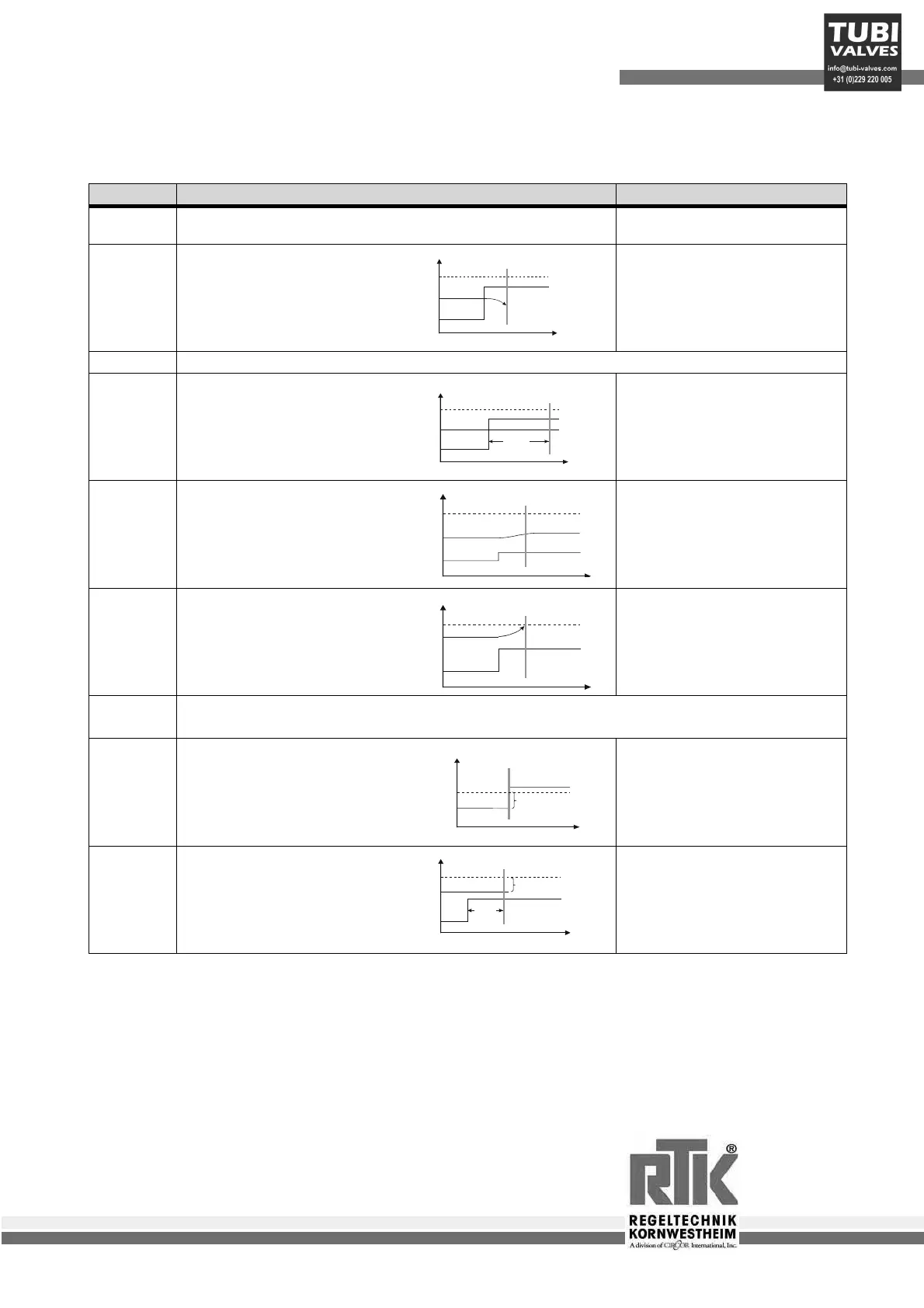

11.6 Meaning of the optimization messages ORes1 / ORes2
ORes1 / ORes2ORes1 / ORes2
ORes1 / ORes2
Ores1/2
Meaning or cause of fault Possible solutions
0
No trial performed or trial interrupted by
switching to automatic operation
1
Interrupted:
Wrong direction for operation of
the manipulated variable, X does not change to
direction W.
Change operating direction
2
Terminated: Self optimization has been successful (reversal point found; estimate confirmed )
3
Interrupted:
The manipulated variable does not react or is
too slow (alteration of " x less than
1% in 1 hour)
Close down control circuit
4
Terminated:
(deep reversal point)
Interrupted:
Stimulus too low (reversal point
found; estimate not confirmed)
In crease manipulated variable
dYopt
5
Interrupted:
Optimization interrupted due to
risk of exceeding set value
Increase interval between actual value
( X ) and set value (W ) at start
6
Terminated: Optimization interrupted due to risk of exceeding set value (reversal point not yet reached;
estimate not confirmed).
7
Interrupted:
Manipulated variable interval too small "Y < 5%
Increase Ymax or set YOptm to a
smaller value.
8
Interrupted:
Set value reserve too small or
set value exceeded while
PiR monitoring is running.
Change set settling value YOptm
.
g If the control process is not as desired in spite of self optimization, steps can also be taken as per
Section 7 (Page 17, empirical optimization).
t
W
X
Y
Abbruch
>1 Std.
t
W
X
Y
Abbruch
W
X
Y
Abbruch
t
Ymax
Y
Abbruch
{ Y<5%
t
W
X
Y
Abbruch
<10% W0..W100
>1 Std.
W
X
Y
Abbruch
