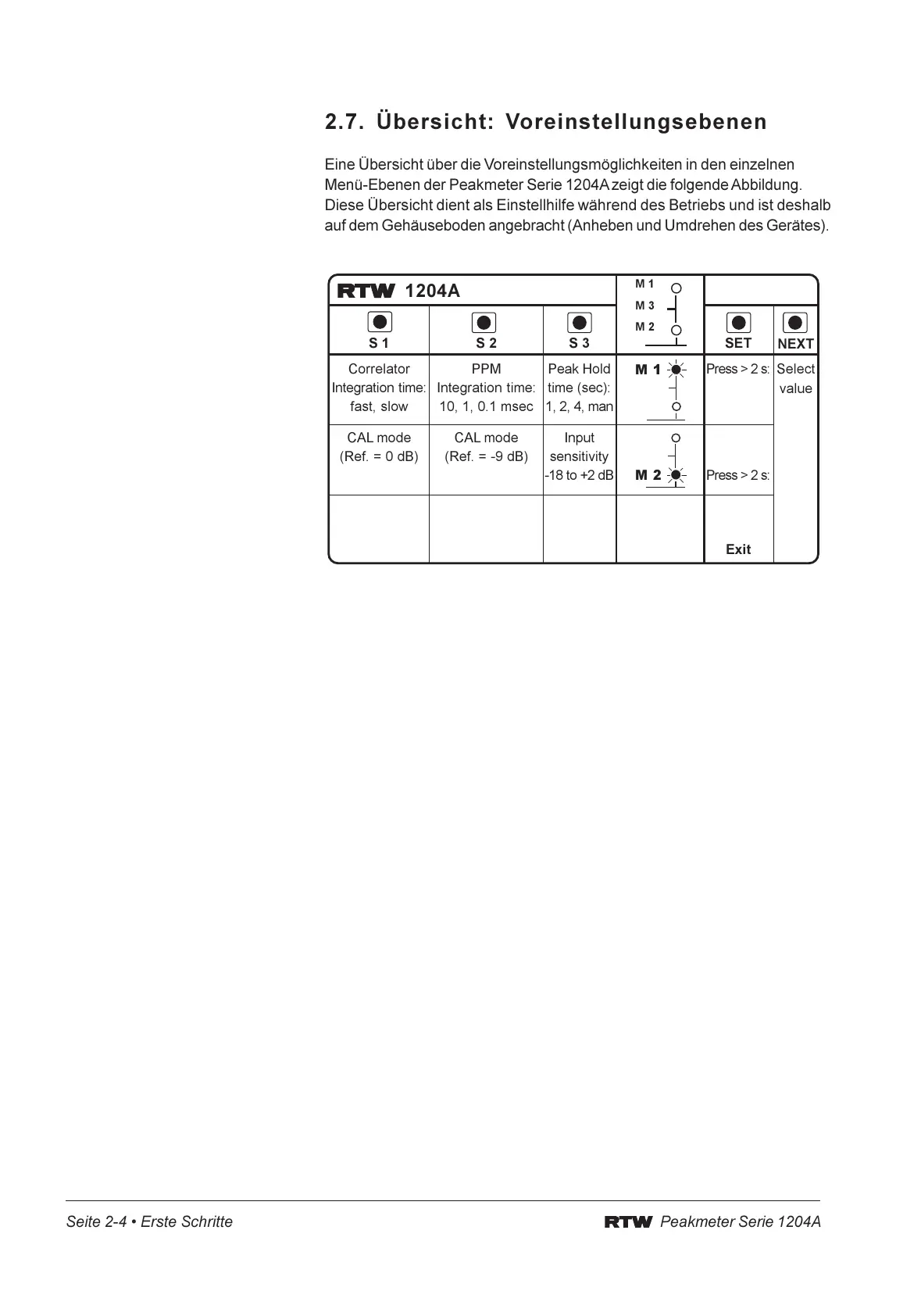

Peakmeter Serie 1204ASeite 2-4 Erste Schritte
2.7. Übersicht: Voreinstellungsebenen
Eine Übersicht über die Voreinstellungsmöglichkeiten in den einzelnen
Menü-Ebenen der Peakmeter Serie 1204A zeigt die folgende Abbildung.
Diese Übersicht dient als Einstellhilfe während des Betriebs und ist deshalb
auf dem Gehäuseboden angebracht (Anheben und Umdrehen des Gerätes).
1204A
S 1
Correlator
Integration time:
fast, slow
CAL mode
(Ref. = 0 dB)
S 2
PPM
Integration time:
10, 1, 0.1 msec
CAL mode
(Ref. = -9 dB)
S 3
Peak Hold
time (sec):
1, 2, 4, man
Input
sensitivity
-18 to +2 dB
NEXT
Select
value
M 1
M 2
M 1
M 3
M 2
SET
Press > 2 s:
Press > 2 s:
Exit
