Peakmeter Series 1204A Introduction  Page 4-1

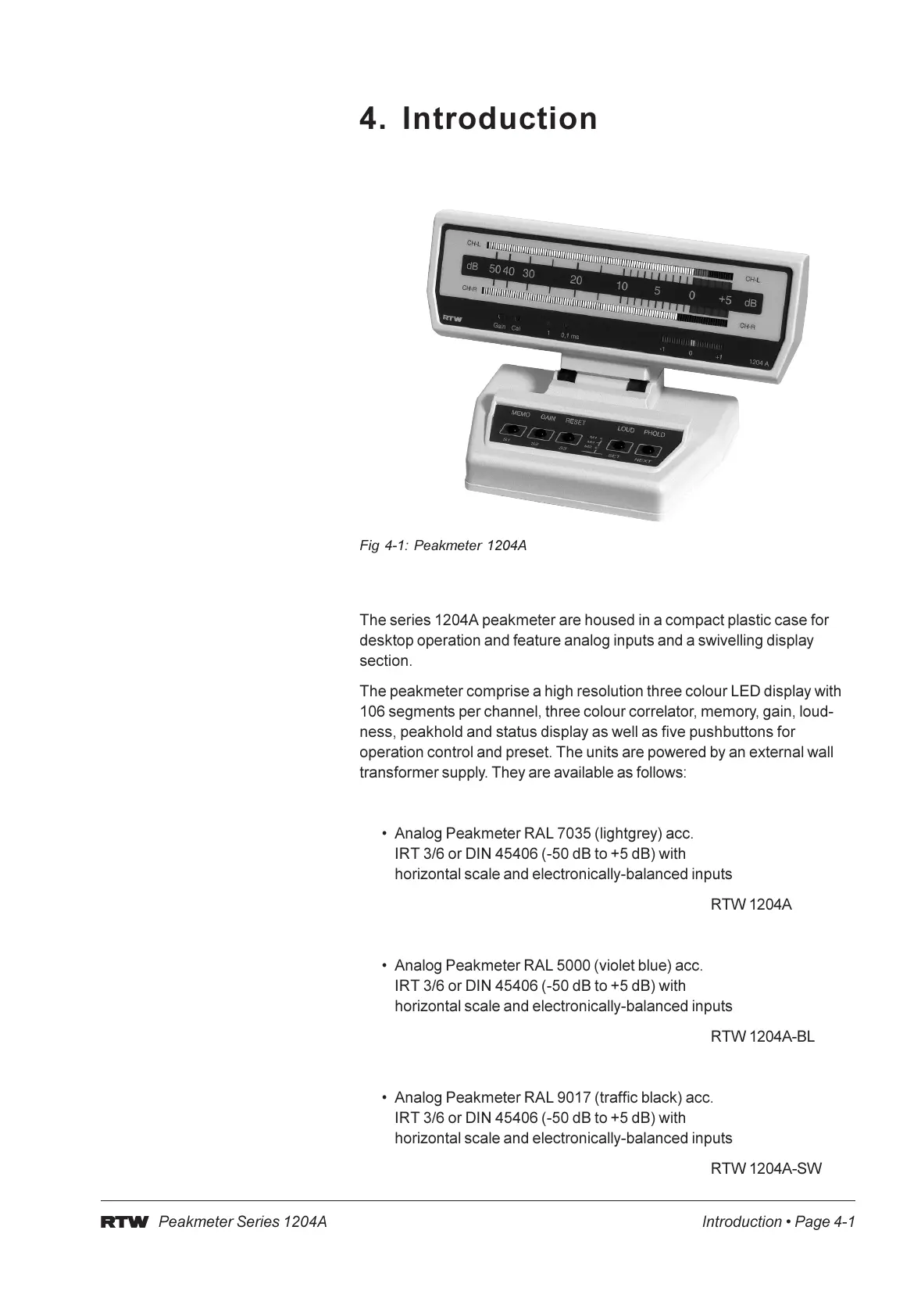

Fig 4-1: Peakmeter 1204A

4. Introduction

The series 1204A peakmeter are housed in a compact plastic case for

desktop operation and feature analog inputs and a swivelling display

section.

The peakmeter comprise a high resolution three colour LED display with

106 segments per channel, three colour correlator, memory, gain, loud-

ness, peakhold and status display as well as five pushbuttons for

operation control and preset. The units are powered by an external wall

transformer supply. They are available as follows:

 Analog Peakmeter RAL 7035 (lightgrey) acc.

IRT 3/6 or DIN 45406 (-50 dB to +5 dB) with

horizontal scale and electronically-balanced inputs

RTW 1204A

 Analog Peakmeter RAL 5000 (violet blue) acc.

IRT 3/6 or DIN 45406 (-50 dB to +5 dB) with

horizontal scale and electronically-balanced inputs

RTW 1204A-BL

 Analog Peakmeter RAL 9017 (traffic black) acc.

IRT 3/6 or DIN 45406 (-50 dB to +5 dB) with

horizontal scale and electronically-balanced inputs

RTW 1204A-SW
