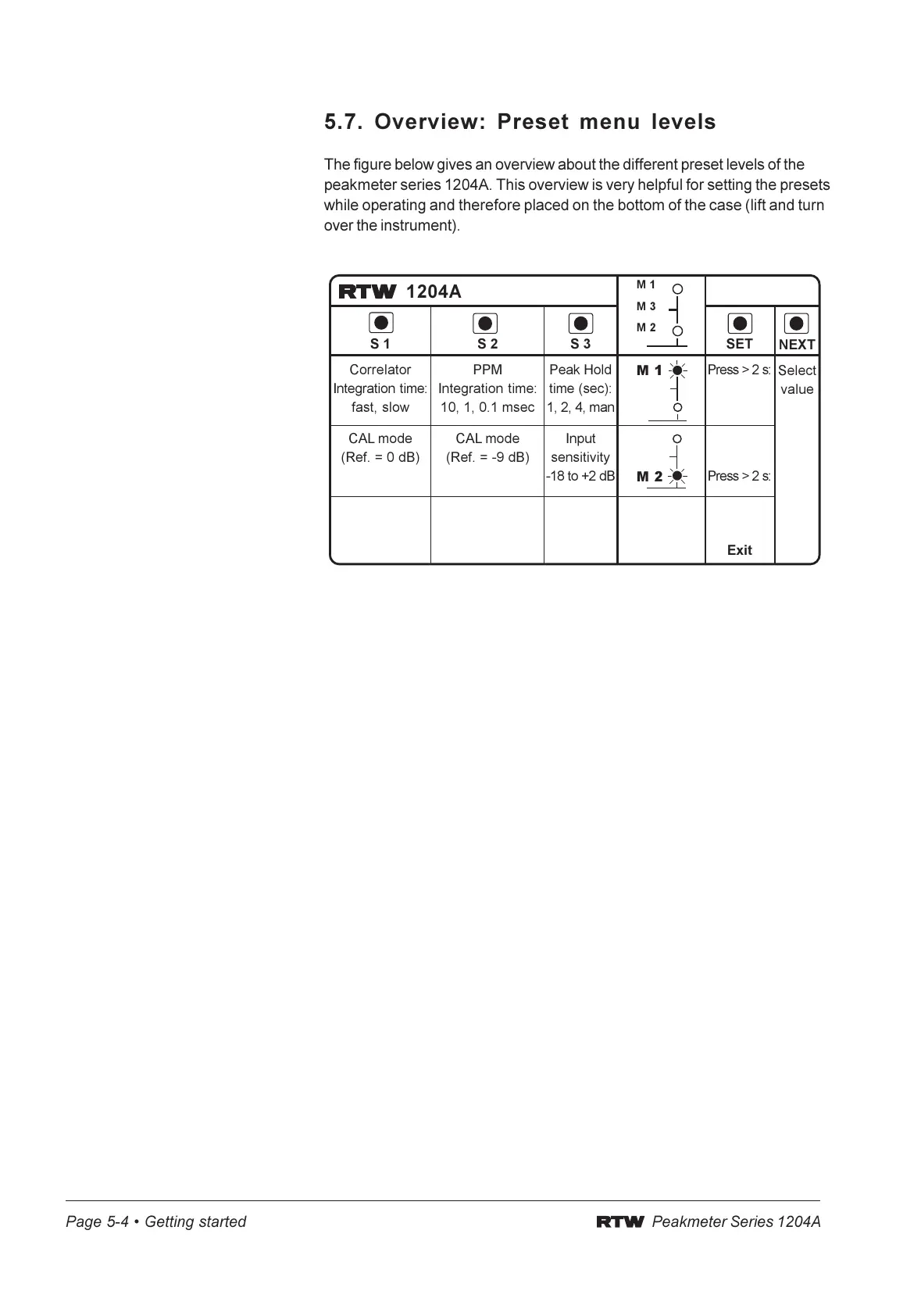

5.7. Overview: Preset menu levels
The figure below gives an overview about the different preset levels of the
peakmeter series 1204A. This overview is very helpful for setting the presets
while operating and therefore placed on the bottom of the case (lift and turn
over the instrument).
1204A
S 1
Correlator
Integration time:
fast, slow
CAL mode
(Ref. = 0 dB)
S 2
PPM
Integration time:
10, 1, 0.1 msec
CAL mode
(Ref. = -9 dB)
S 3
Peak Hold
time (sec):
1, 2, 4, man
Input
sensitivity
-18 to +2 dB
NEXT
Select
value
M 1
M 2
M 1
M 3
M 2
SET
Press > 2 s:
Press > 2 s:
Exit
