DISASSEMBLY OF THE ENGINE

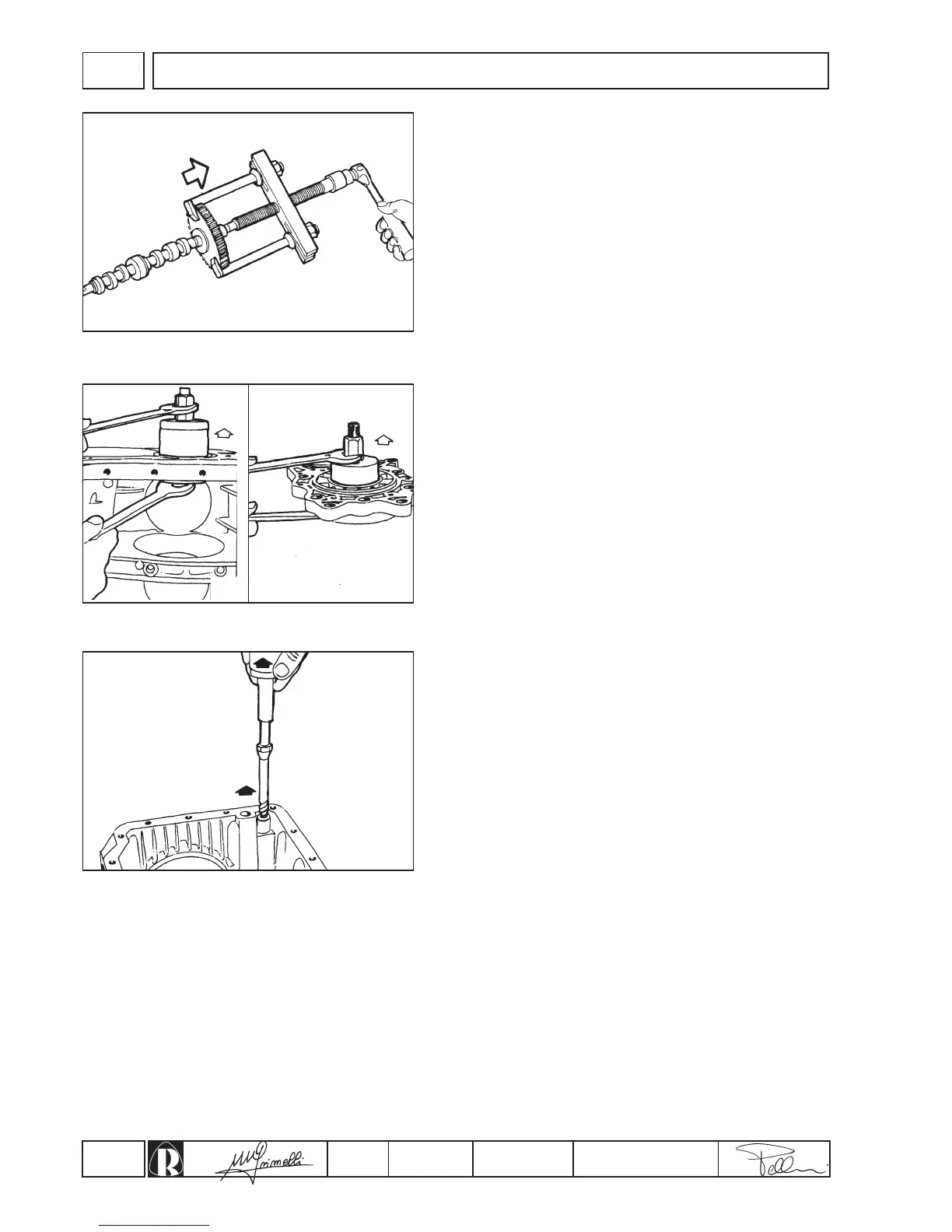

Extraction of the camshaft gear
Use the extractor number 00365R0010 (fig.5).
Extracting crankcase bushes
From crankcase (fig.6)
From main bearing (fig.7)
Use extractor number 00365R0900.
Extracting the oil pressure indicator plug
Loosen the plug securing screw, and remove circlip, spring and
ball.
Cut a thread on the inside of the plug body and then withdraw it
using a commercial extractor tool (fig. 8).
