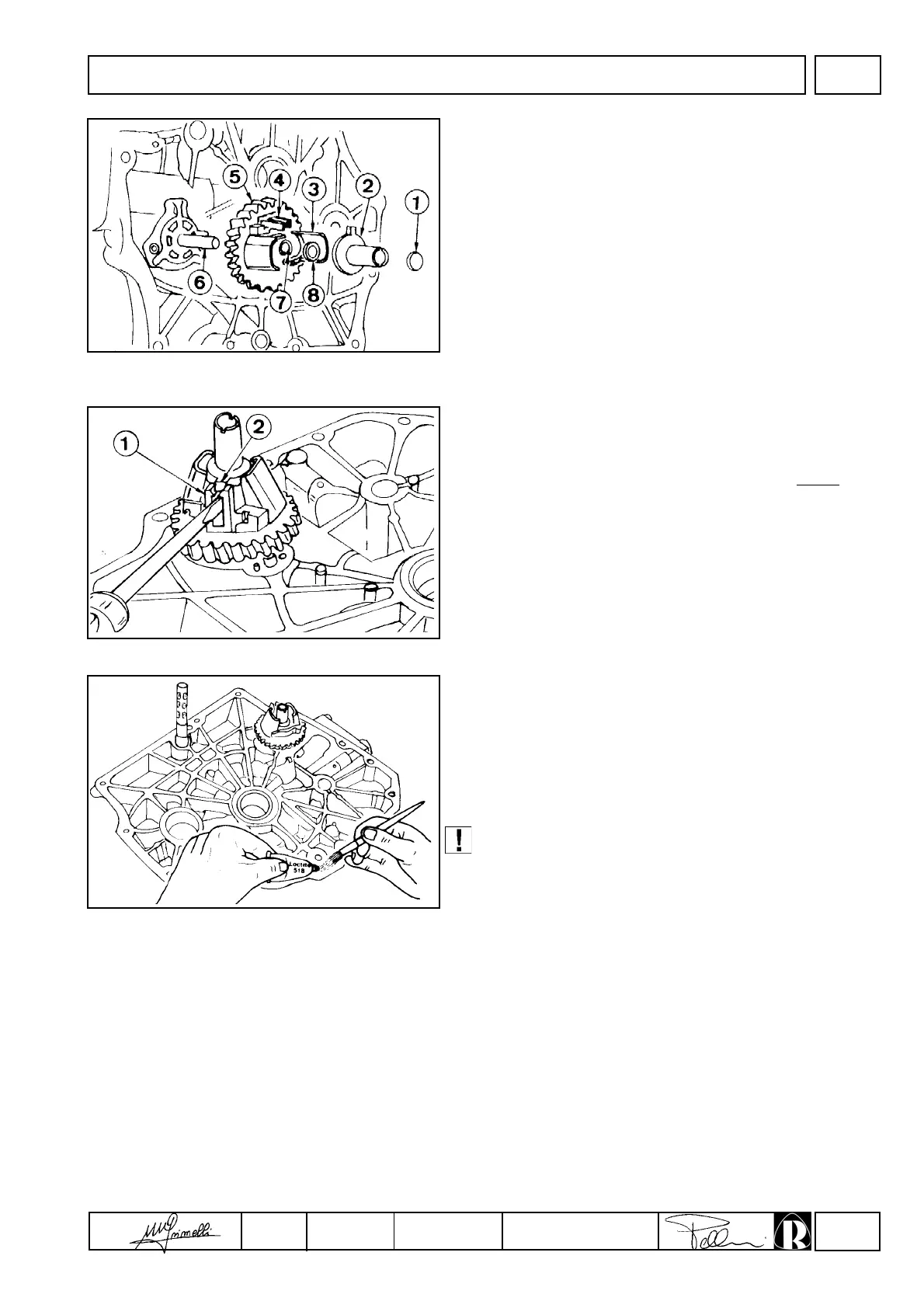

DISASSEMBLY/REASSEMBLY
Speed governor
Components:
1 Spool spacer
2 Spool
3 Weights
4 Spool guide
5 Gear
6 Oil pump driving shaft
7 Circlip
8 Thrust ring
Speed governor removal
Spool guide 1 has retainers one end which prevent spool 2 from
slipping out.
To remove the speed governor use a suitable tool to slightly widen
the two teeth.
Refitting gear cover on timing side
Proper sealing between gear cover and crankcase is ensured by
the liquid sealant "Loctite 5205". Carefully clean the two sealing
surfaces and spread the sealant uniformly.
Tighten screws to 23 Nm.
Wait 3 hours before starting the engine.
