Ruggerini RY 70 - FUEL SYSTEM; Fuel Circuits and Filters

51
17-04-2003
01
15-01-2004
DATE
COMPILER TECO/ATI
REG. CODE
1-5302-467
MODEL N°
50707
DATE OF ISSUE
REVISION
ENDORSED
X
96
97

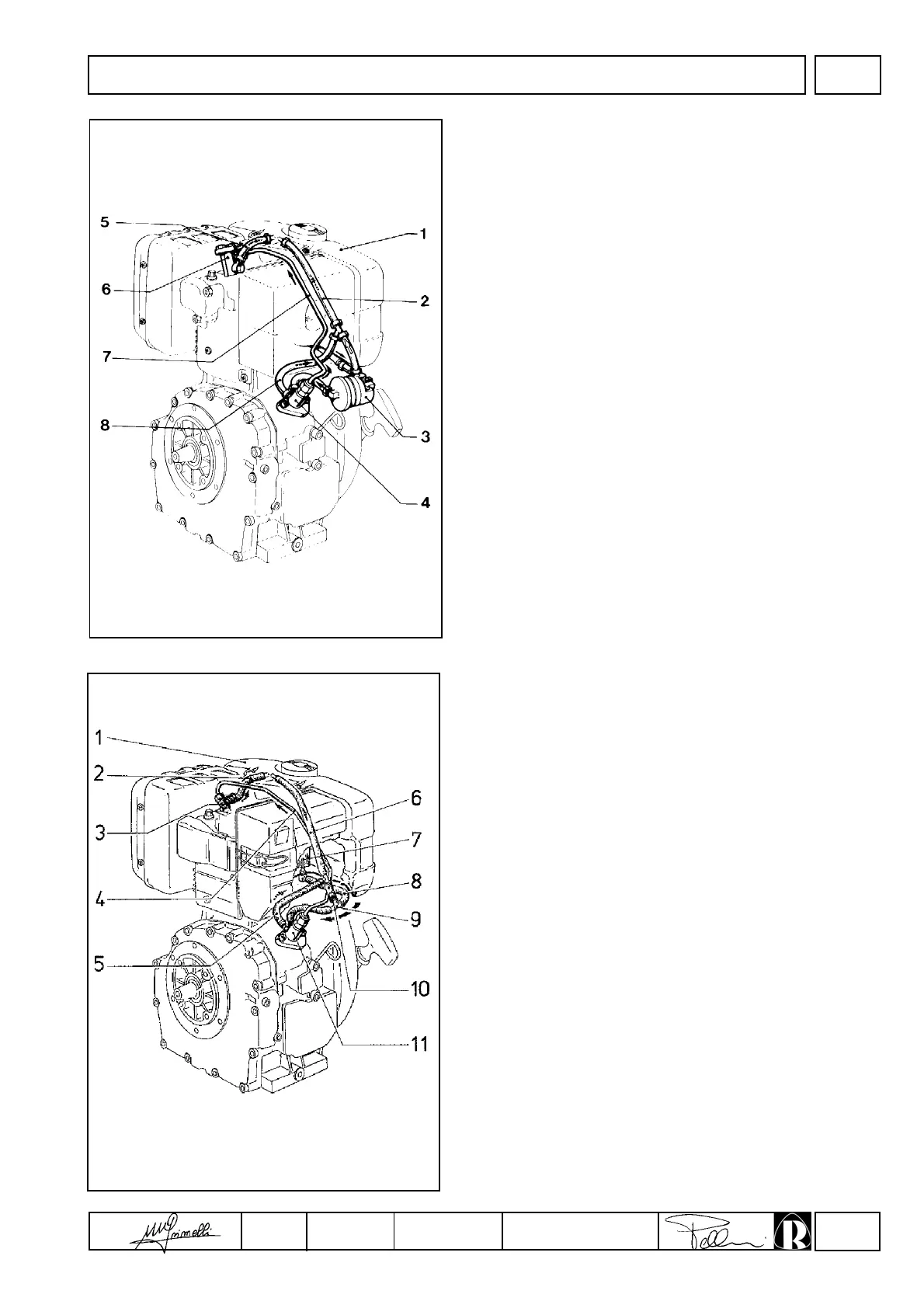

Fuelling/injection circuit for RY 70-75-103-110
Components:
1 Tank
2 Return tube
3 Fuel filter
4 Injection pump
5 Injector leak-off line
6 Injector
7 High pressure line
8 Return tube
Fuelling/injection circuit for RY 50
1 Tank
2 Injector leak-off line
3 Injector
4 High pressure line
5 Return tube
6 Return tube
7 Diesel fuel filter
8 Fuel pipe
9 T-connector
10 Reduction
11 Injection pump
FUEL SYSTEM
