Cookbook Configuration
125
3. Subnet IP Address
For example, 1.1.1.0/255.255.255.0 is a subnet IP address. The administrator can configure a proper name for
a subnet IP address to identify the subnet quickly.
Procedure

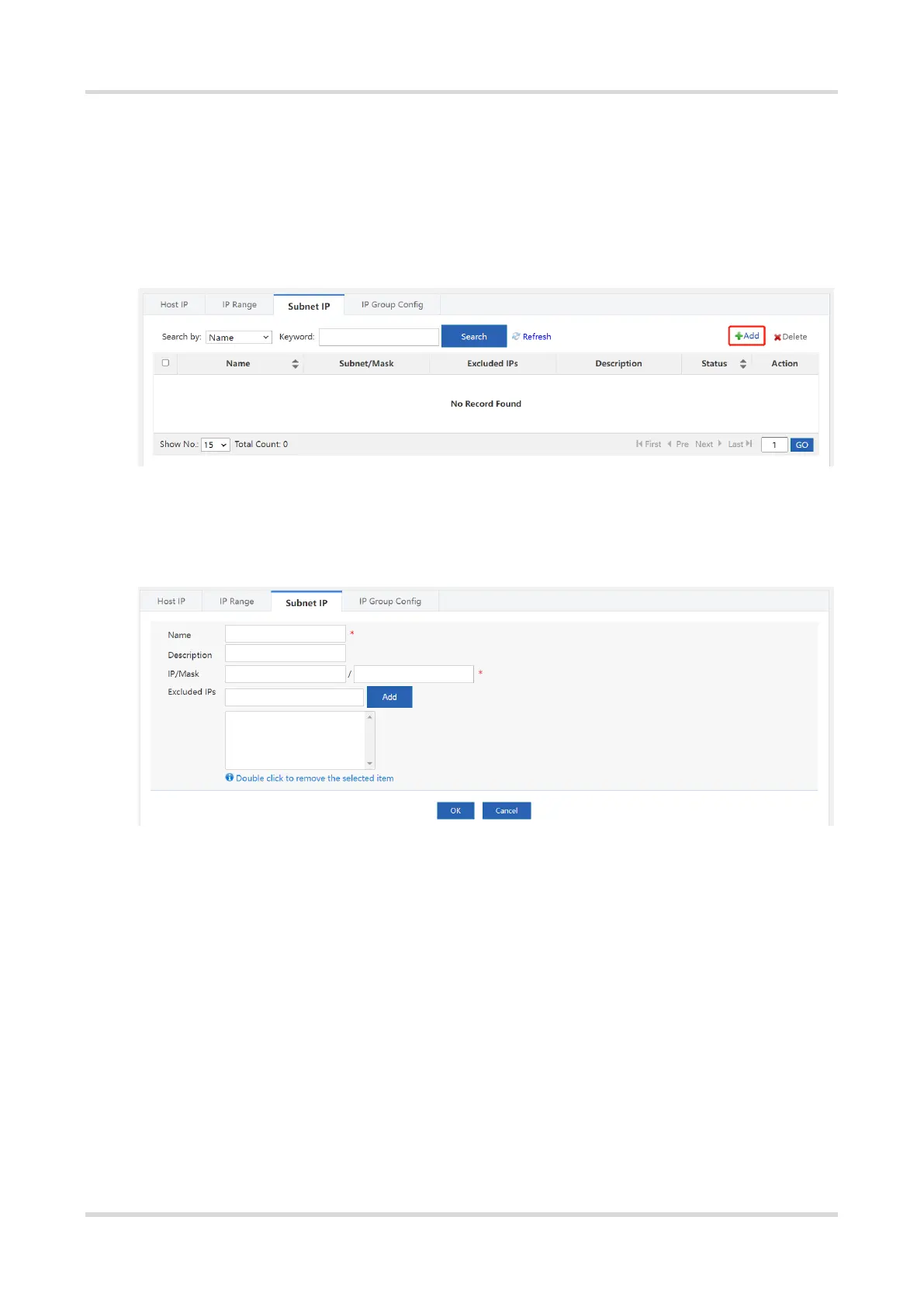

(1) Choose Firewall > IP Resource > Subnet IP.
(2) Click Add.
(3) Enter the name, description, the IP address or the mask. If there is an excluded IP address, enter the
excluded IP address (only a single IP address is supported.) and click Add. If you need to add multiple
excluded IP addresses, enter other excluded IP addresses and click Add.
(4) Click OK.
4. IP Group Configuration
An IP group is a collection of multiple IP addresses. You can put the host IP address, the IP range or the subnet
IP address with the same defense requirements into an IP group for convenient management.
Prerequisite
The host IP address, the IP range or the subnet IP address are configured.
Procedure
(1) Choose Firewall > IP Resource > IP Group Config.
(2) Click Add.
