Cookbook Configuration
35
1. The router serves as an egress and can access the Internet by using a static IP address. The LAN user router
is configured on the LAN port of the NBR router to provide basic Internet access.
2. The WAN bandwidth is 10 Mbit/s, the WAN port address is 192.168.33.56/24, the WAN router address is
192.168.33.1, and the LAN is in the 192.168.1.0/24 network segment.
3. LAN users are allowed to access only the specified website www.126.com.
Prerequisites
1. Choose User > User and add user IP addresses.
2. Choose Flow > Behavior Policy > Basic Settings, click Website Blacklist/Whitelist, and click Whitelist
Mode.
Procedure

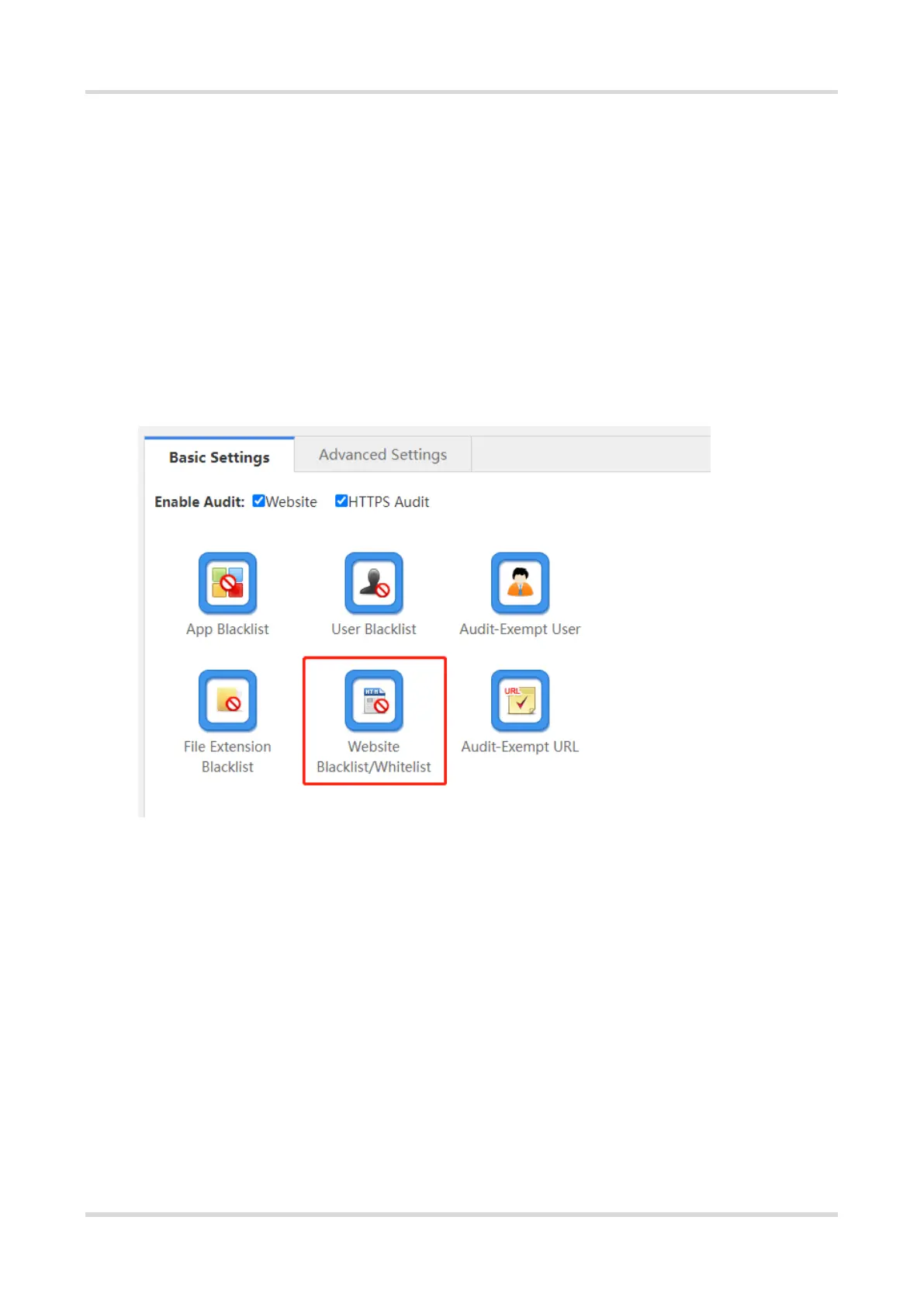

(1) Choose Behavior > Behavior Policy > Basic Settings and click Website Blacklist/Whitelist.
(2) Click Whitelist Mode and add a website to the whitelist.
