Ruijie RG-NBS Series User Manual

1-24
Configuration Guide
eWeb Configuration (Standalone Mode)
3.4 L3 Interfaces
3.4.1 L3 Interfaces
The L3 Interfaces module allows you to configure layer-3 interfaces.
There are three types of layer-3 interfaces available:
 Routed Port
 A physical port of a layer-3 device can be configured as a routed port. A routed port works as an access port and does
not support layer-2 switching.
 L3 Aggregate Port
 A layer-3 aggregate port is a logical interface consisting of layer-3 physical interfaces of the same type. It virtualizes
physical links into one link so as to increase the link rate. A layer-3 aggregate port supports load balancing among its
member links. If a member link fails, traffic will be automatically switched to the other available links, which improves link
reliability. A layer-3 aggregate port does not support layer-2 switching.
 SVI
An SVI can be used as a management interface. You can also create an SVI for inter VLAN routing.

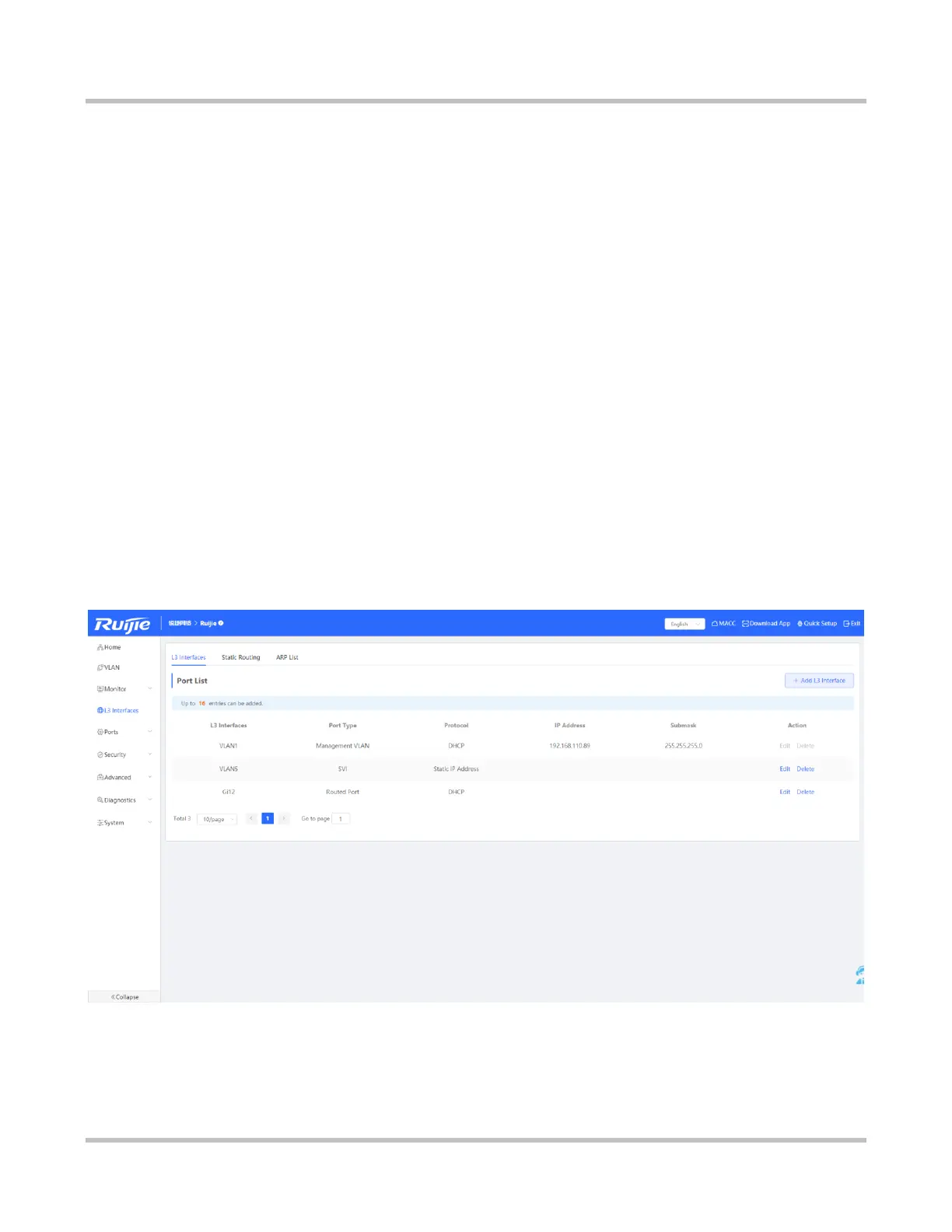

Figure 3-4-1 L3 Interfaces
3.4.1.1 Add an SVI
Figure 3-4-2 Adding an SVI
