Notice:
● The length of riser tube should be neither higher 2mm nor 5mm lower
than the tank top opening, and its top end should be rounded to avoid
damage of O-ring inside the valve.
● Avoid floccules substance together with resin to fill in the mineral tank.
● Avoid O-ring inside control valve falling out while rotate it on the tank.
② Install animated connector

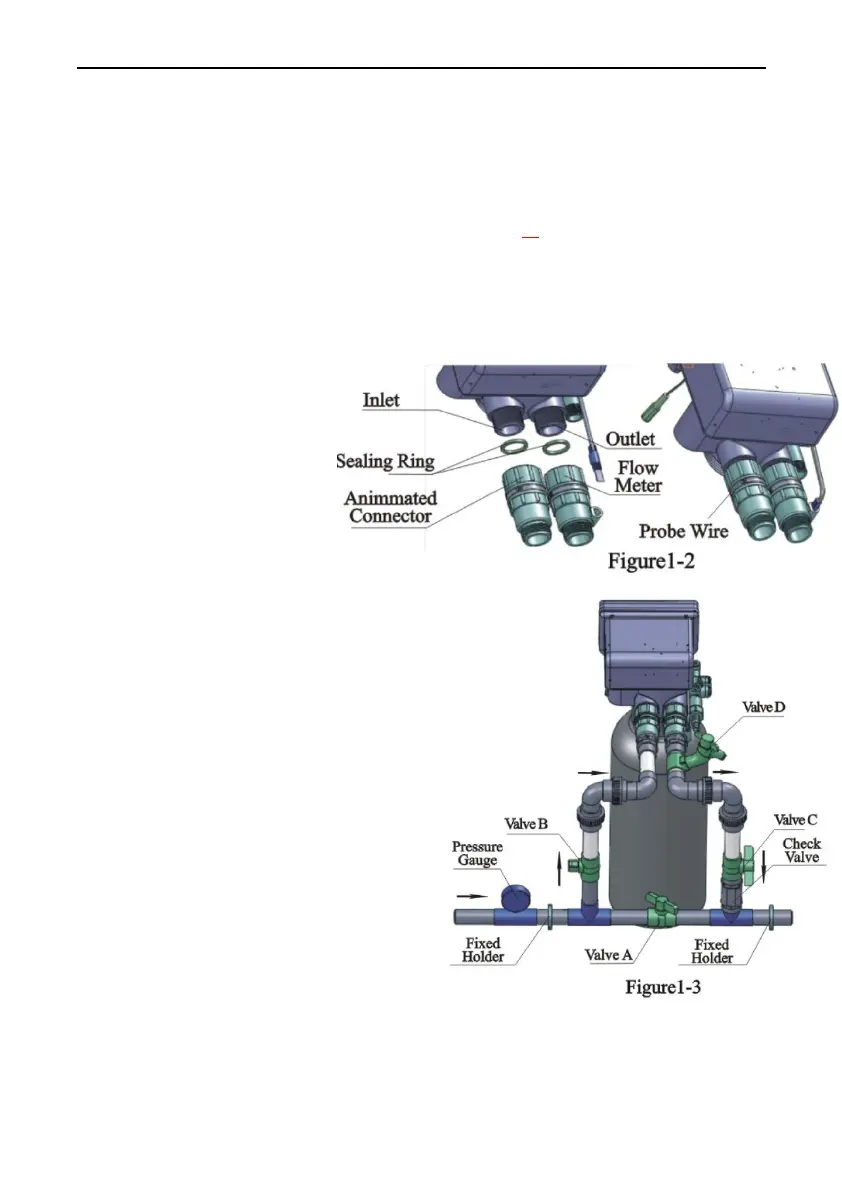

As Figure1-2 shows, put the sealing ring into nut of animated
connector, and screw in
water inlet.
③ Install flow meter
As Figure1-2 shows,
put the seal ring into nut
of flow meter, screw in
water outlet; insert the
sensor into flow meter.
④ Pipeline connection
a. As Figure1-3 shows, install a
pressure gauge in water inlet.
b. Install valve A, B, C and D in the
intermediate pipeline, inlet and
outlet. valve D is a sampling valve.
(Or adopt F70A/F70C bypass
valve).
c. Install a check valve in water
outlet.
d. Inlet pipeline should be in parallel
with outlet pipeline. Support inlet
and outlet pipeline with fixed holder.
