MODEL: 63518-N77A1 /63618-N77A3/ 53518-N77B1
9
Install flow meter

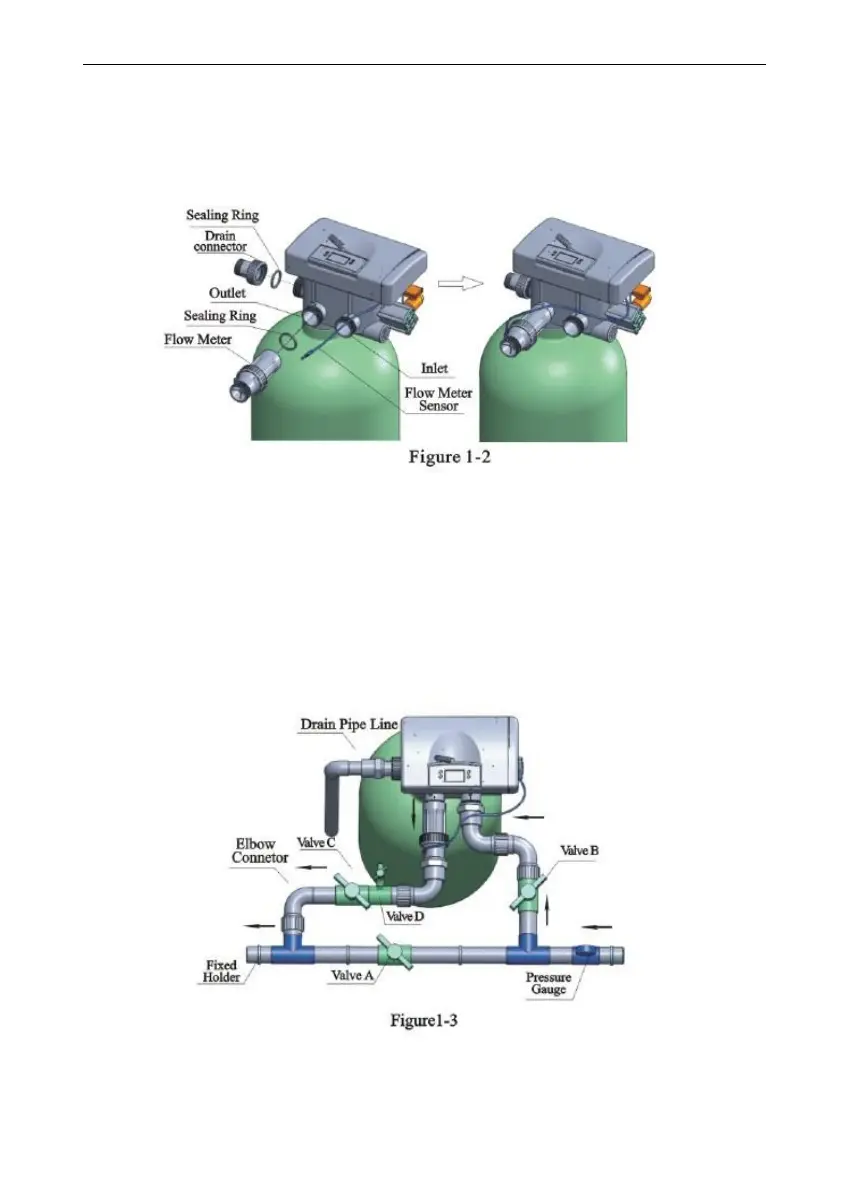

As Figure1-2 shows, put the sealing ring into nut of flow meter, screw
in water outlet; insert the sensor into flow meter.
Pipeline connection
a. As Figure1-3 shows, install a pressure gauge in water inlet.
b. Install sampling valves in inletoutlet and pipeline A.B.C.D as showed
in Figure 1-3.
c. Inlet pipeline should be in parallel with outlet pipeline. Support inlet
and outlet pipeline with fixed holder.
Note:
●If making a soldered copper installation, do all sweat soldering
