C. Pressure Relief Output
Runxin valve will cut off feeding water to drain line when it switches
in regeneration cycles. Thus in some water treatment system, e.g. Deep
Well, one booster pump was installed on the inlet to increase the system
water feeding pressure, this cut-off will cause pressure on inlet rising too

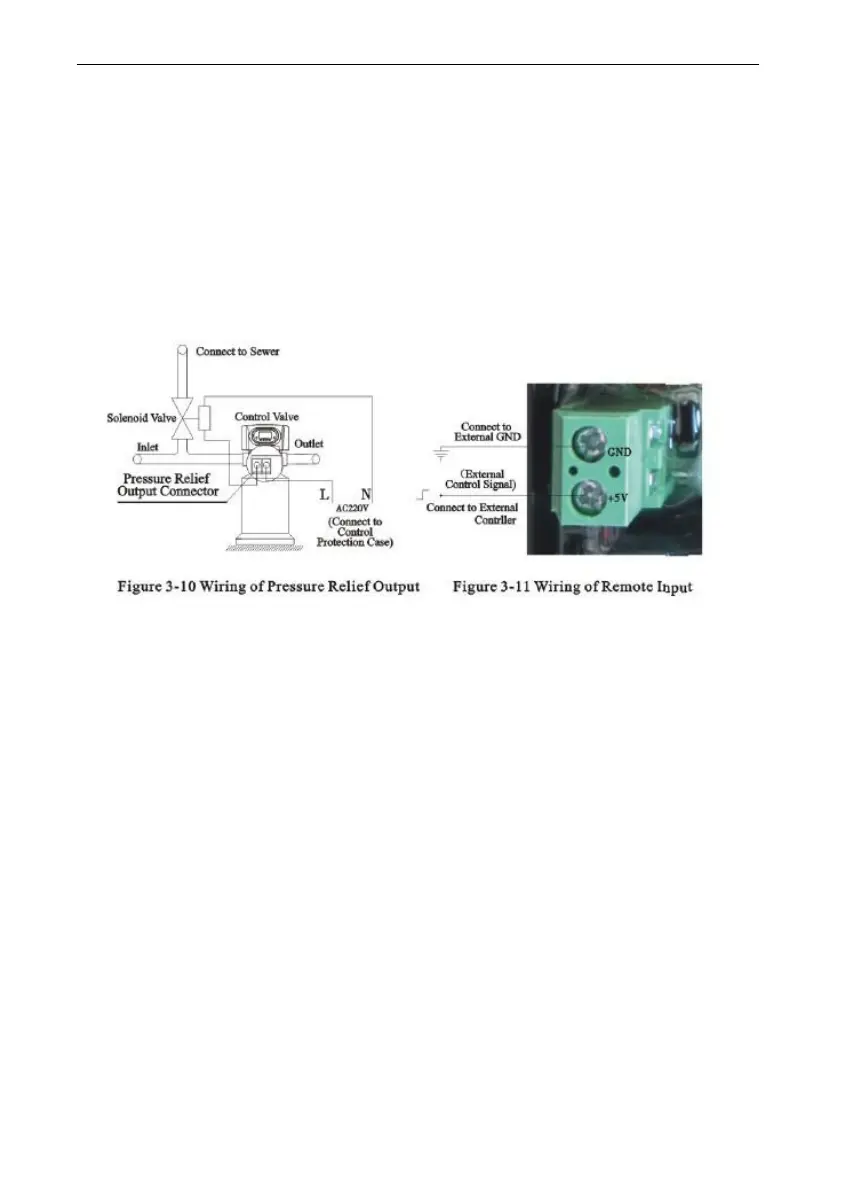

fast to damage the valve. Pressure Relief Output can be used to avoid
this problem. The wiring refer to Figure 3-10
D. Remote Handling Connector
Online TDS meter monitors treated water other than a flow meter, or
PLC controls the regeneration time. When the controller receives a
contact closure from above instruments, regeneration begins. The wiring
refers to Figure 3-11:
E. Interlock System
2 or more than 2 valves are interlocked connecting in one system
and all valves are in service but regenerate individually. The wiring
refers to Figure 3-12.
