Installation
5. Partially remove the protective film from the back of the appliance.

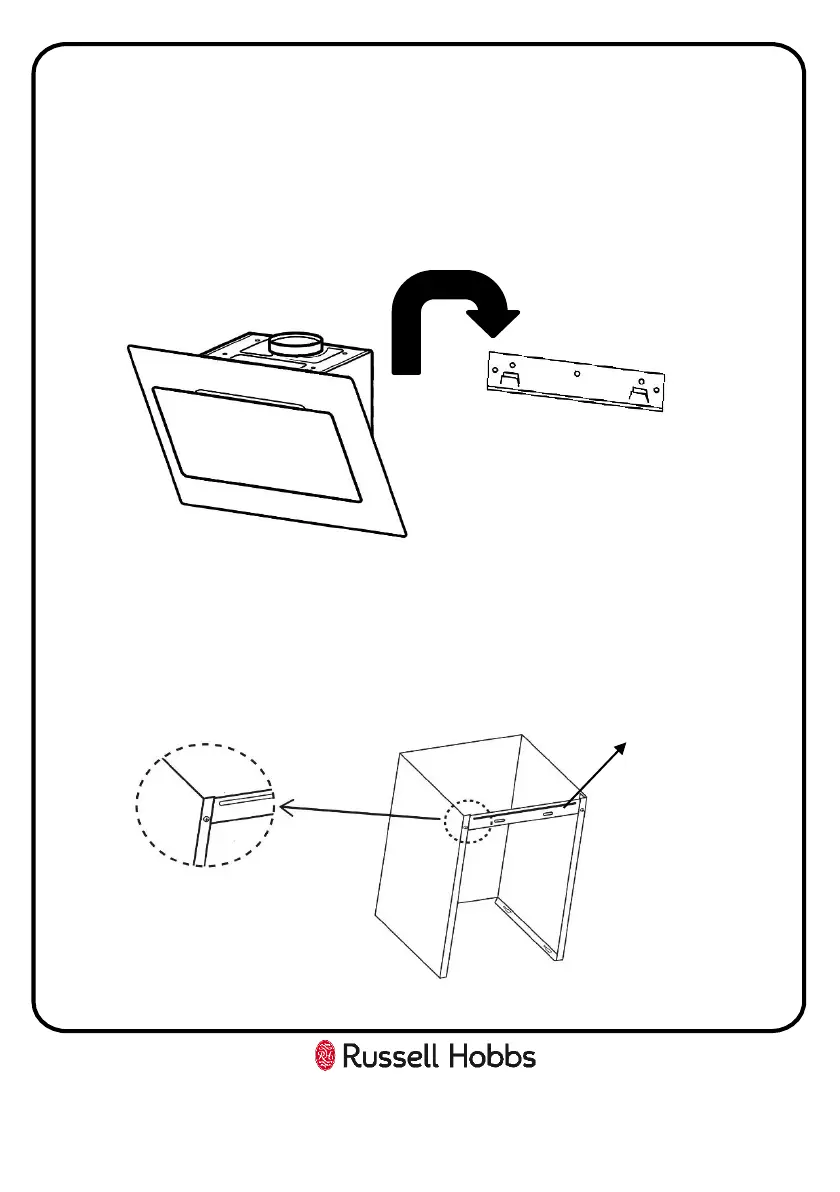

6. Hook the appliance on to the hood fixing bracket (ensure the hood is fully
hooked onto the hood fixing bracket, as the hooks on the bracket are stepped)
and check that it is level with a spirit level.
7. Remove the appliance from the hood fixing bracket and following installation,
remove the film completely.
8. At the top of the lower (bigger) flue duct secure the flue ducting bracket to
the duct with 2 small screws at the rear (1 screw on either side).
13
Small Screw
Flue duct
fixing bracket
