Installation

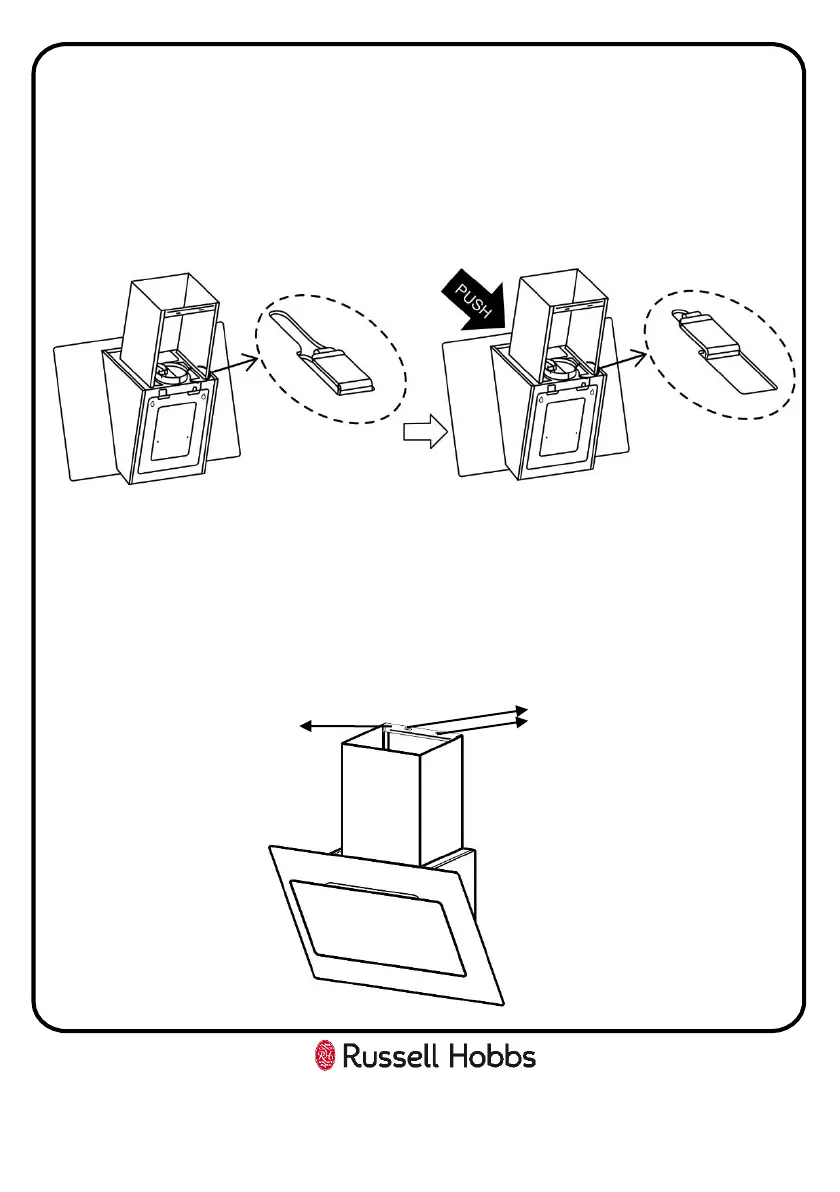

9. Attach the lower (bigger) flue duct to the appliance by hooking/pushing the
holes on the bottom of the flue duct in to the hooks on the top of the cooker
hood. You must ensure the flue ducts is securely attached to the main body of
the cooker hood.
10. Hook the appliance back onto the hood fixing bracket and mark on the wall the
drill hole locations for the flue ducting bracket.
11. Remove the appliance from the hood fixing bracket and drill 2 x 8mm Ø holes
to a depth of 50mm for the flue duct fixing bracket and press the wall plugs
flush with the wall.
14
Flue duct
fixing bracket
Drill holes and insert
wall plugs
