10
ENG
ADJUSTING THE MOTOR CONTROLS
• The motor interval is set at the factory, in which case the awning requires no additional
adjustment. However, the user can adjust the interval with the assistance of a qualified technician.
• In the following cases the motor requires minor adjustment:
– The awning does not extend properly.
– The awning canopy is loose.
– The motor does not stop automatically with the awning is fully retracted.

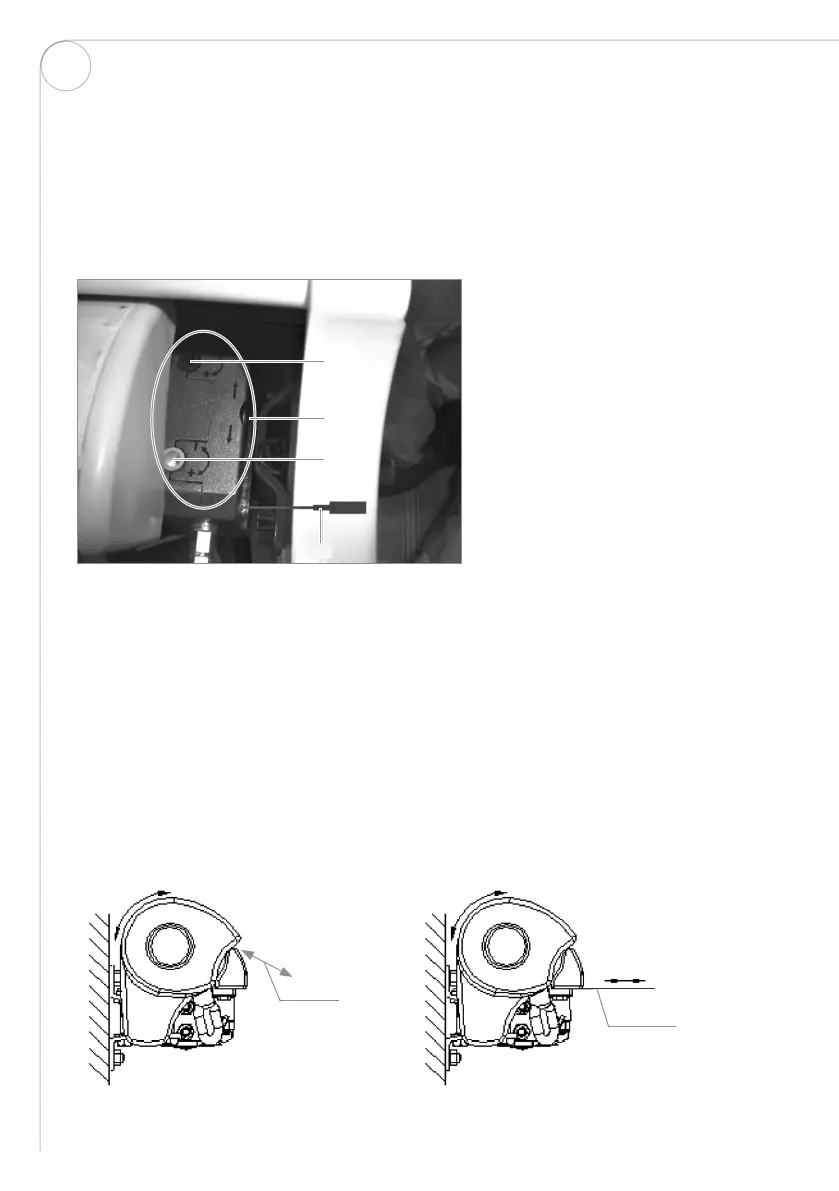

P1 Adjustment tool for motor controls
P2 Adjustment knob for lower limit
P3 Adjustment knob for upper limit
P4 Indicator for adjustment and alignment
P2
P4
P3
P1
RIGHT WRONG
Canopy
Canopy
• Fit the hexagonal tip on the adjustment tool P1 in the adjustment knob P3 for the upper limit.
• Turn anticlockwise to bring the canopy closer to the roller and anticlockwise to increase the
distance from the supporting bar.
• Fit the hexagonal tip on the adjustment tool P1 in the adjustment knob P2 for the lower limit.
• Turn clockwise to extend the canopy further and anticlockwise to extend it less.
• Wait 30 minutes before restarting if the motor does not function after the adjustment.
• The motor shall not be overloaded or used to frequently – this will eect the motors service life.
• The motor not come into contact with water or other liquid.
WARNING!
• Make sure that the awning’s canopy extends and retracts from the upper edge of the roller and not
from the lower edge.
