7
USE

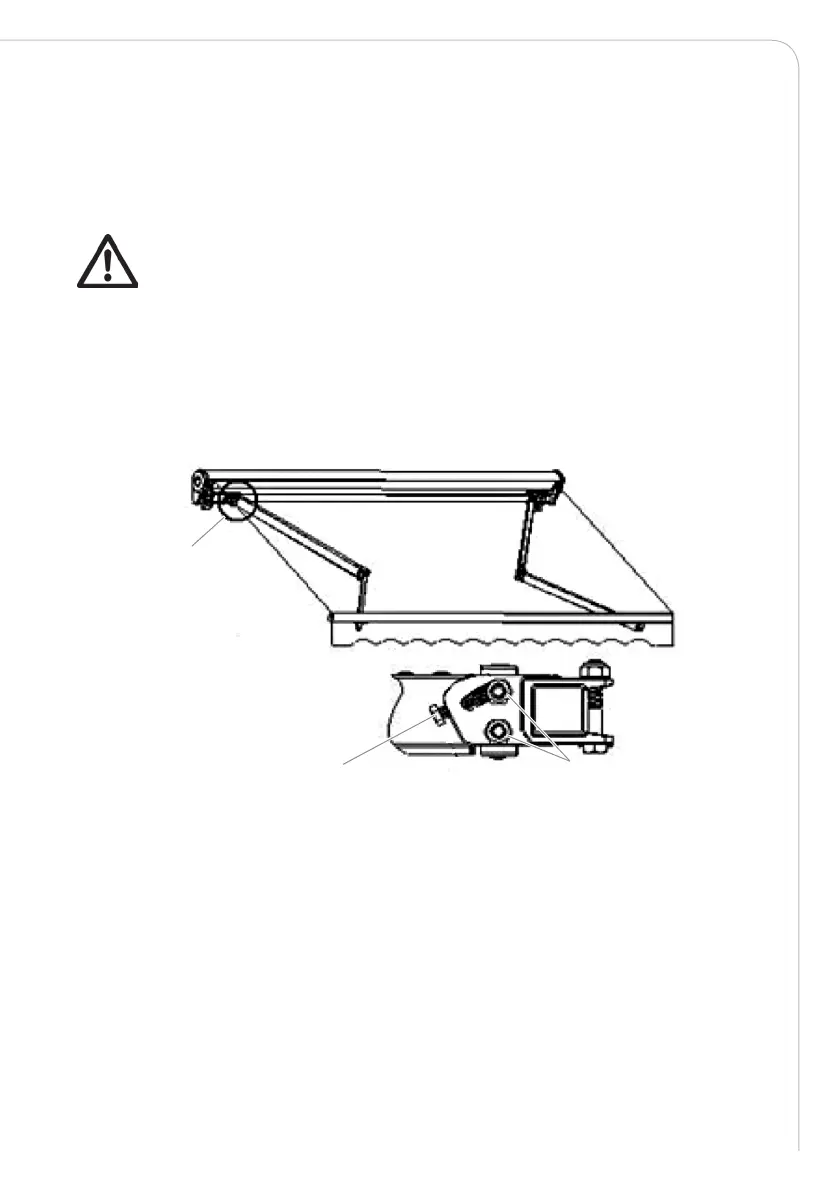

TILT ANGLE ADJUSTMENT
• The tilt angle is optimally pre-adjusted. However, the user can adjust the tilt angle within the
range of 14-30 degrees. A tilt angle of less than 14 degrees may not be used, even if the design
of the adjustment mechanism makes a smaller angle possible.
• Extend the awning to one third of its full length before adjusting the angle.
• Loosen the lock nuts.
• Turn the adjustment screw clockwise to reduce the tilt angle. Turn anticlockwise to increase the
tilt angle.
• Tighten the lock nuts when the desired tilt angle has been adjusted.
• Repeat the process until both arms have been adjusted to the desired degree.
When the adjustment screw has reached its end position, it may not be screwed in any
further. Do not force the screw! This can result in damage to the awning and void the
warranty.
Adjustment range
Adjustment bolt
Lock nuts
The front of the awning must always be horizontally aligned. The front of the awning has a built-
in spirit level for checking to ensure that both sides are at the exact same level. The air bubble
should be precisely in the centre of the spirit level.
