7
• Finally, pass the elastic straps on the bottom edge of the net down between the
surface of the mat and the edge protector. Wind the bands around the frame of the
trampoline and secure them using hooks and rings (C4).
FINAL SAFETY CHECK
Check that all strings, hooks and screws are secure and have been positioned
as shown in the assembly instructions, before using the trampoline. All locking
mechanisms should be checked regularly and adjusted when necessary. Stop using
the safety net if it becomes very worn or damaged.
C4
D1
C2
C3

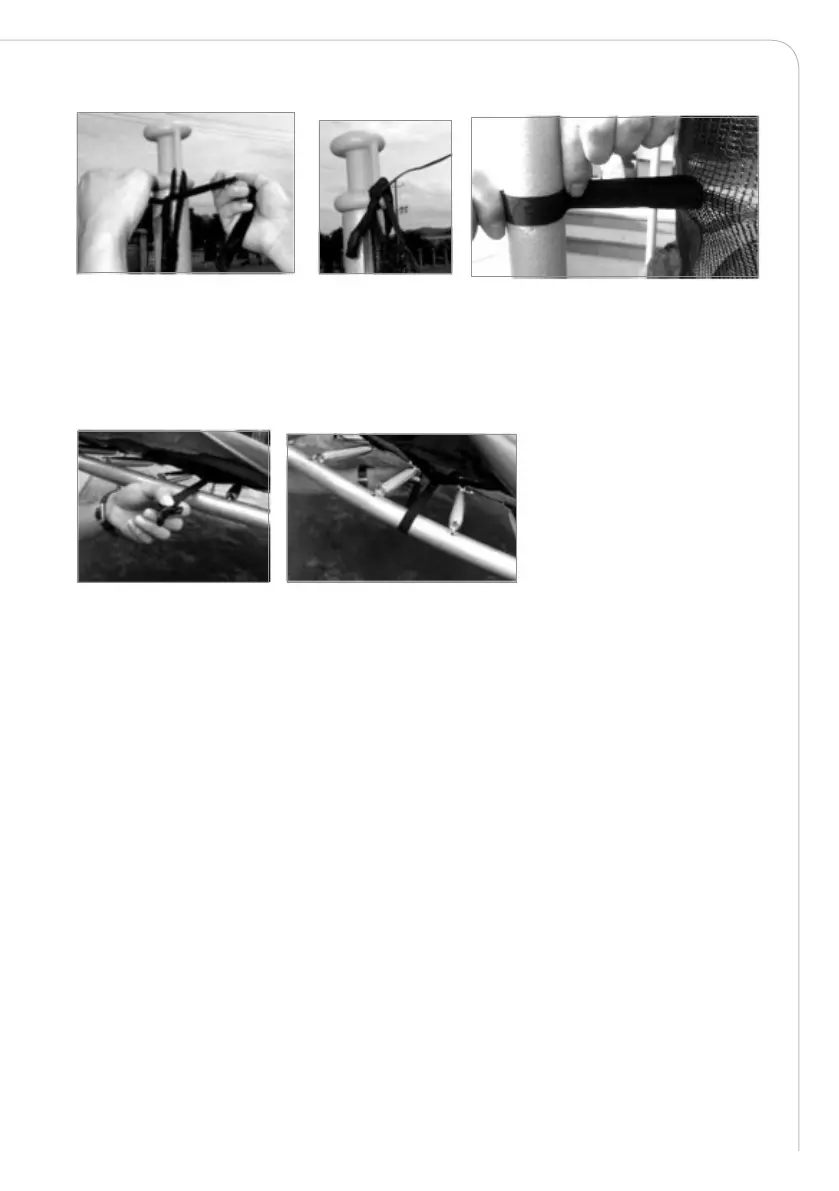

• Attach the straps (C2) and make sure that there is a gap of approximately 10 cm
between the poles and the net (picture C3). This centres the net and adjusts it to
the edge of the mat. Make sure the lower strap is attached above the mat’s edge
protector.
