Ruud RD17AZ - Outdoor Unit Above Indoor Coil

20
Tubing
4.0 INSTALLATION
For applications with the outdoor unit above the in-
door coil the following is required:
• Insulated liquid line in unconditioned space only.
• Follow the proper line sizing, maximum linear and
equivalent length, maximum vertical separation,
charging requirements, and oil level adjustments
spelled out in this document.
• Insulated vapor line full length.
• Verify at least 5°F [2.8ºC] of liquid subcooling at
the outdoor unit prior to expansion device in the
heating mode.

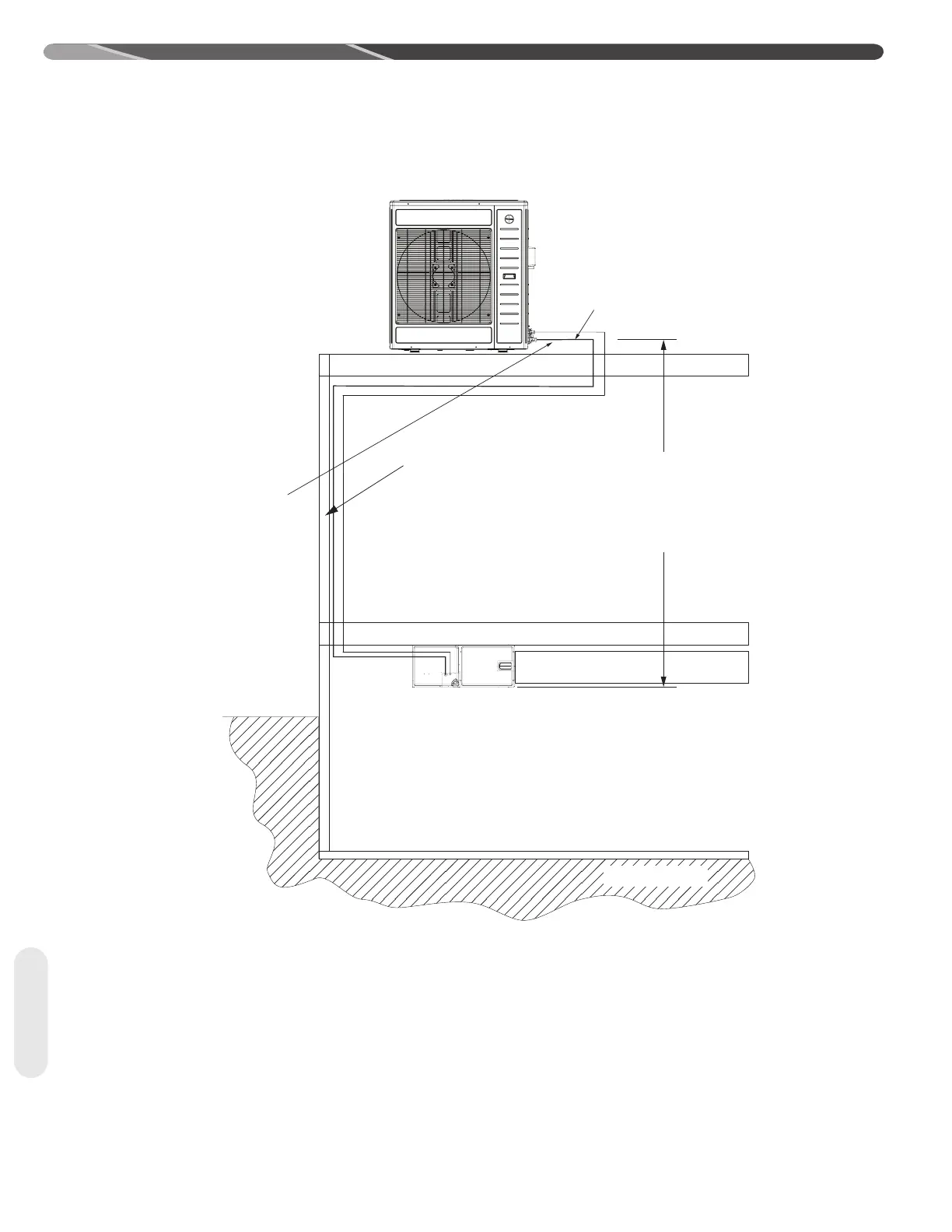

4.5.2.3 Outdoor Unit Above Indoor Coil
OUTDOOR UNIT ABOVE INDOOR SECTION LINE SET
,QVXODWHGOLTXLGOLQH
LQXQFRQGLWLRQHGVSDFH
IRUORQJOLQH
DSSOLFDWLRQ
,QVXODWHGYDSRUOLQHIXOOOHQJWK
9HULI\OLTXLGVXEFRROLQJ
DWRXWGRRUXQLWSULRU
WRH[SDQVLRQGHYLFH
5HIHUHQFH7DEOHIRUPD[LPXP
OHQJWKDQGYHUWLFDOVHSDUDWLRQ
OLPLWDWLRQV
ST-A1345-08-00
Figure 5
