Ruud RD17AZ - Electrical and Physical Data

7



',0(16 6,21

>@ >@ >@>@
>@ >@ >@>@
>@
>@
>@>@
+HLJKW³+´LQFKHV>FP@
/HQJWK³/´LQFKHV>FP@
:LGWK³:´LQFKHV>FP@
 

ST-A1345-02-00
“L”
“W”
“H”
SERVICE PANELS/
INLET CONNECTIONS/
HIGH AND LOW VOLTAGE
ACCESS ALLOW
24” [61.0 CM] OF
CLEARANCE.

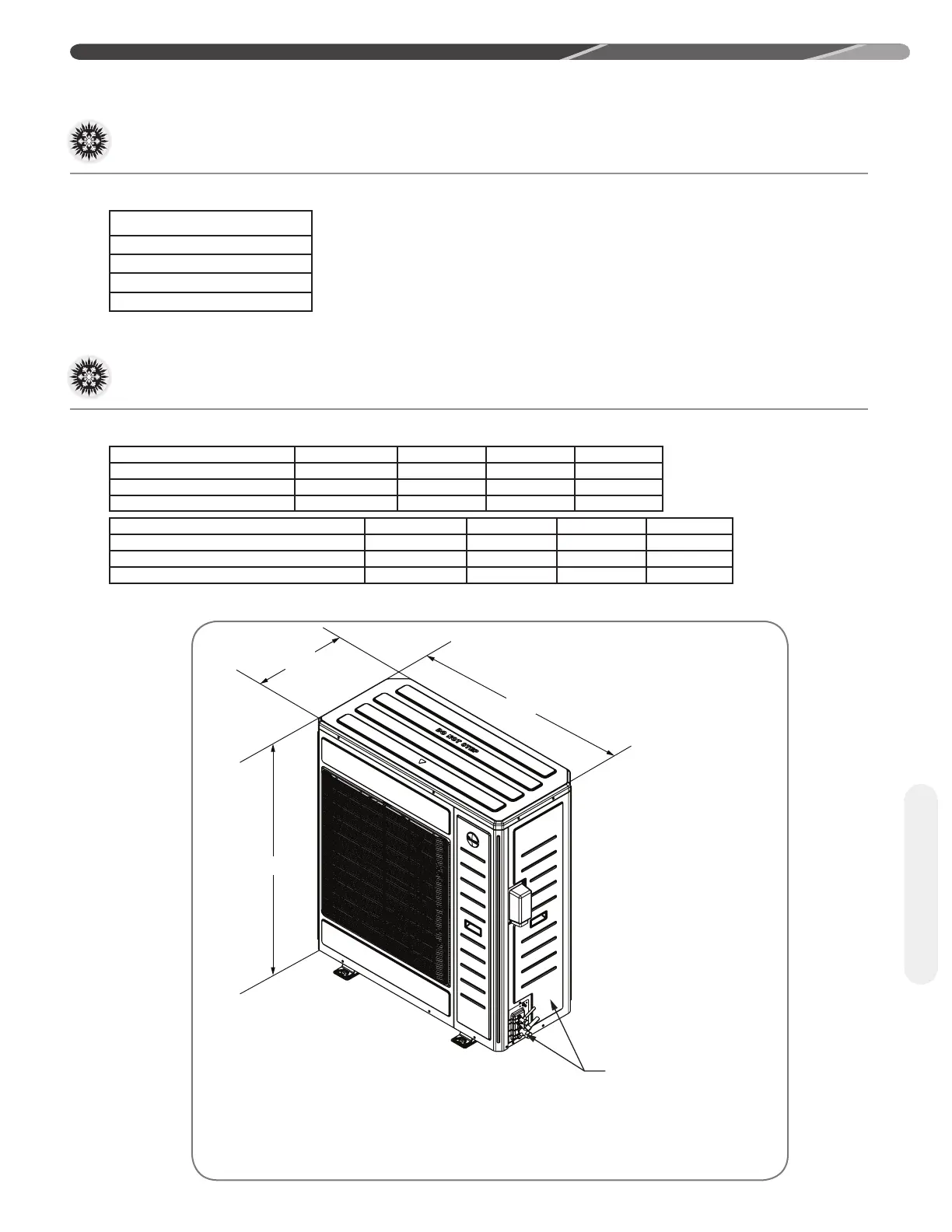

3.0 UNIT SPECIFICATIONS
Unit Specications
3.2 Electrical and Physical Data
3.1 Model Number Nomenclature and Available Models (cont.)
RD17 AZ 24A
36A 48A 60A
Height "H" inches [cm] 36.6 [93.0] 46.4 [117.8] 58 [147.3] 58 [147.3]
Length "L' inches [cm] 40.4 [102.6] 42.3 [107.4] 40.4 [102.6] 40.4 [102.6]
Width "W" inches [cm] 19.8 [50.3] 22.8 [57.8] 19.8 [50.3] 19.8 [50.3]
AVAILABLE MODELS
RD17AZ24AJ3NA
RD17AZ36AJ3NA
RD17AZ48AJ3NA
RD17AZ60AJ3NA
Electrical Data
Line Voltage Data (Volts-Phase-Hz)
208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60
Maximum overcurrent protection (amps)
2
20 25 40 45
Minimum circuit ampacity
3
19 24.5 38 41
