STEP 3
• The filter and pump should be attached to the base prior to filling the filter with sand as it
will be difficult to maneuver after the tank is full.

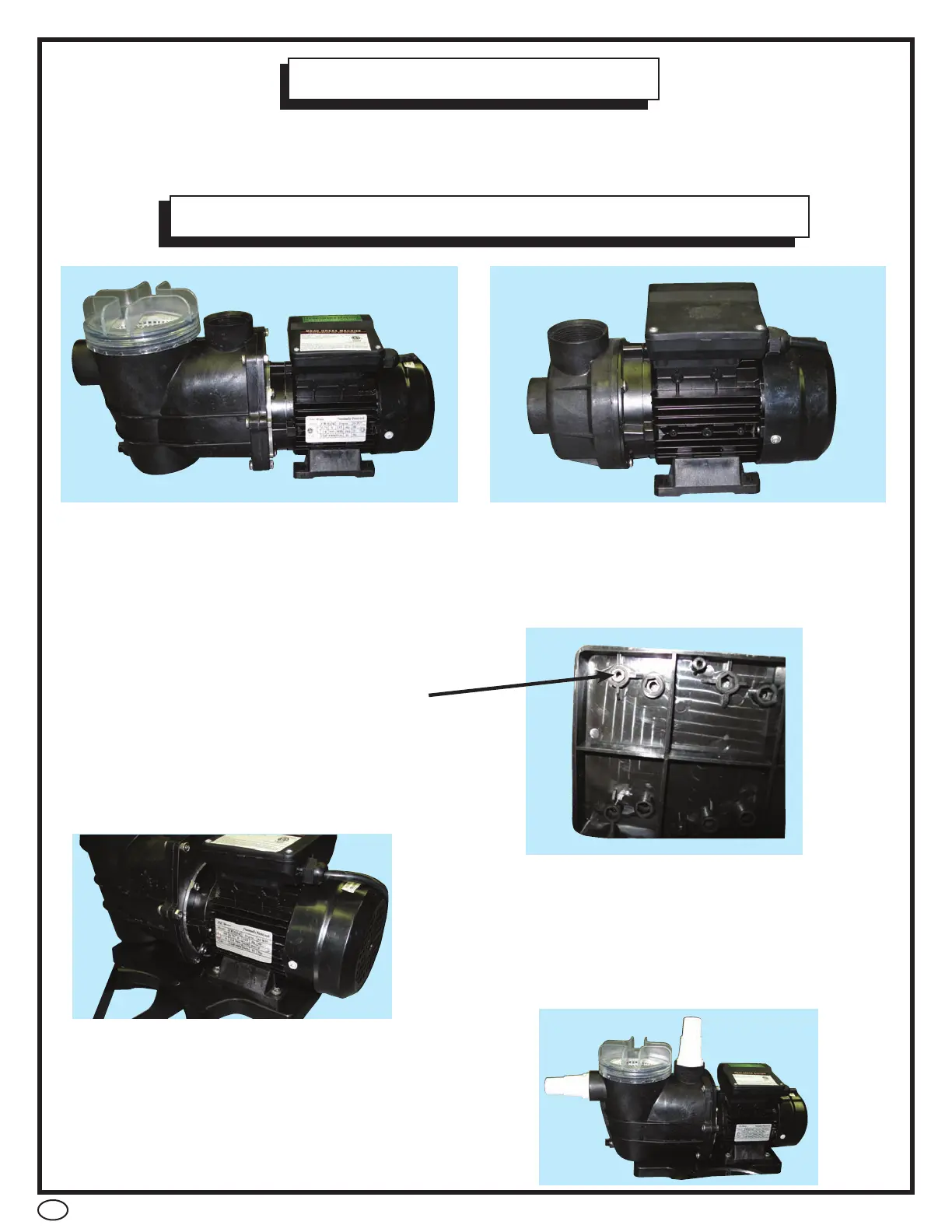

A. CRADLE STYLE MOUNT
• Pumps with cradles located directly under the motor should be aligned
with the 4 holes that match up to the cradle. This type of mount will
require the use of four mounting bolts and nuts from the hardware
supplied with the base.
• Place nuts underneath the base, in
the properly aligned hole
6
• Bolt the housing of the pump through the base
and tighten.
• Cover the threads of each straight fitting with
teflon tape and thread one fitting into the front of
the motor and one fitting to the top of the motor.
• Attach the 1 1/4” hose with a clamp on each
fitting.
